ABUS FU8370 Secvest 2WAY Wireless Glass Breakage Detector User Manual
Page 38
38
5. Quando il cavo verde è collegato al contatto del blocco
dei morsetti a vite, contrassegnato dall’allarme, il
collegamento a ponticello LK1 deve essere aperto.
6. Fare attenzione, chiudendo il rilevatore, che il contatto
antisabotaggio sia collocato nella posizione corretta.
1
2
3
4
5
6

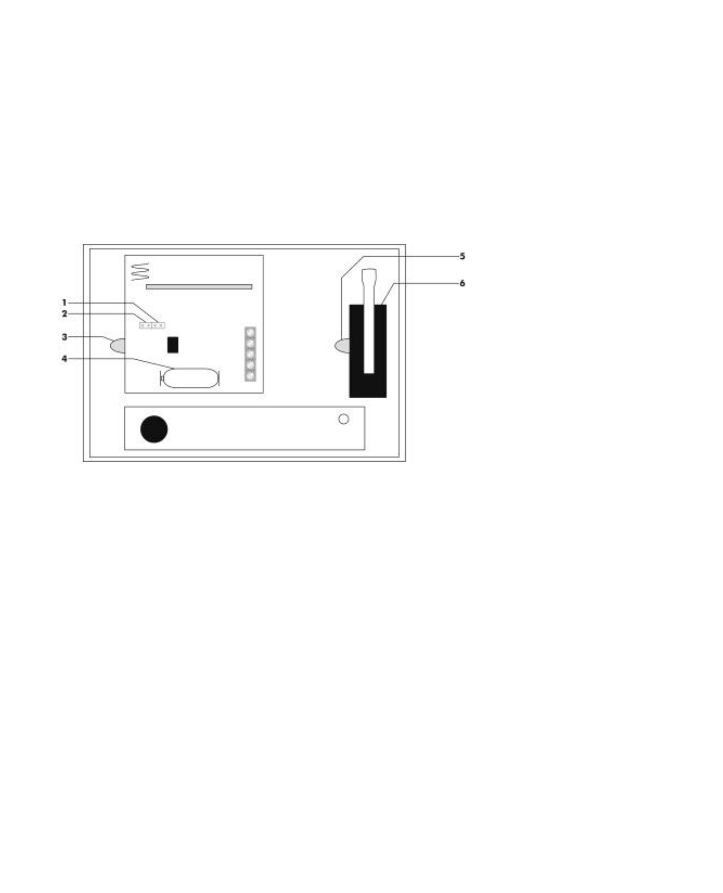

Collegamento a ponticello LK3
– LED di inizial. on/off
Collegamento a ponticello LK1
– ingressi invertiti
Foro
Batteria
Foro
Interruttore manomissione
