M u l t i - T o u c h P a n e l P C A C P - 1 1 0 3
Chapter 2 Hardware Installation 2-15
5 HDMI_TX1+ DIFF
7 GND GND
9 HDMI_TX0- DIFF
11 HDMI_CLK+ DIFF
13 GND GND
15 HDMI_DDC_CLK I/O +5V
17 NC NC
19 DPD_PWR PWR +5V
2 HDMI_TX2+ DIFF
4 GND GND
6 HDMI_TX1- DIFF
8 HDMI_TX0+ DIFF
10 GND GND
12 HDMI_CLK- DIFF
14 NC NC
16 HDMI_DDC_DATA I/O +5V
18 DPD_HPD IN

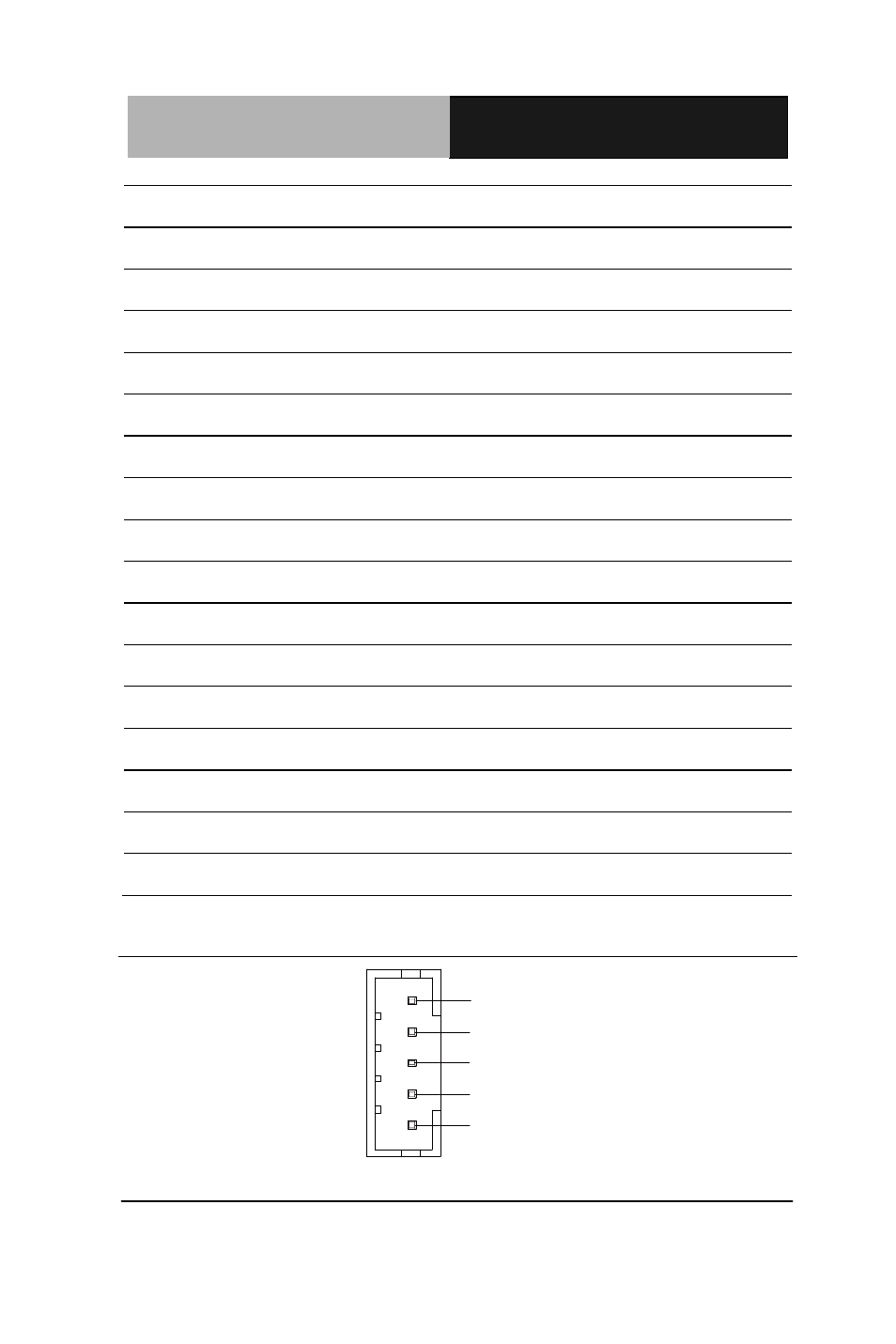

2.19 Inverter / Backlight Connector (CN18)
BLK_PWR
2
3
4
5
1
BKL_CONTROL
GND
GND
BKL_ENABLE
