M u l t i - T o u c h P a n e l P C
A C P - 1 1 0 3
Chapter 2 Hardware Installation
2-7

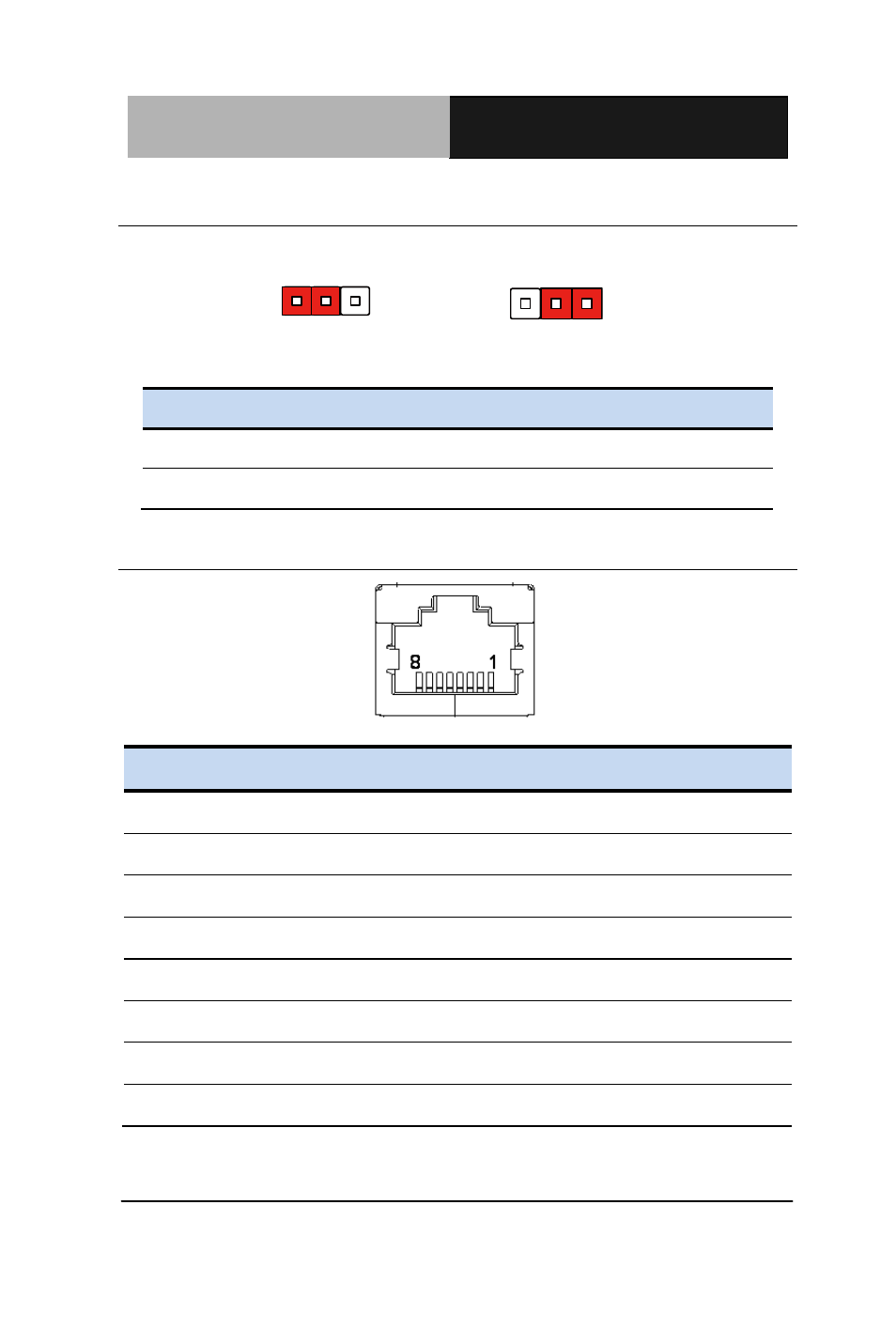

2.8 AT/ATX Power Supply Mode Selection (JP6)
1 2 3
AT Mode
1 2 3
ATX Mode(Default)
JP6
Function
1-2
AT Mode
2-3
ATX Mode(Default)
2.9 Realtek LAN (RJ-45) Port (CN12)
Pin
Pin Name
Signal Type
Signal Level
1
MDI0+
DIFF
2
MDI0-
DIFF
3
MDI1+
DIFF
4
MDI2+
DIFF
5
MDI2-
DIFF
6
MDI1-
DIFF
7
MDI3+
DIFF
8
MDI3-
DIFF
