Page 32
M u l t i - T o u c h P a n e l P C
A C P - 1 1 0 3
Chapter 2 Hardware Installation
2-11

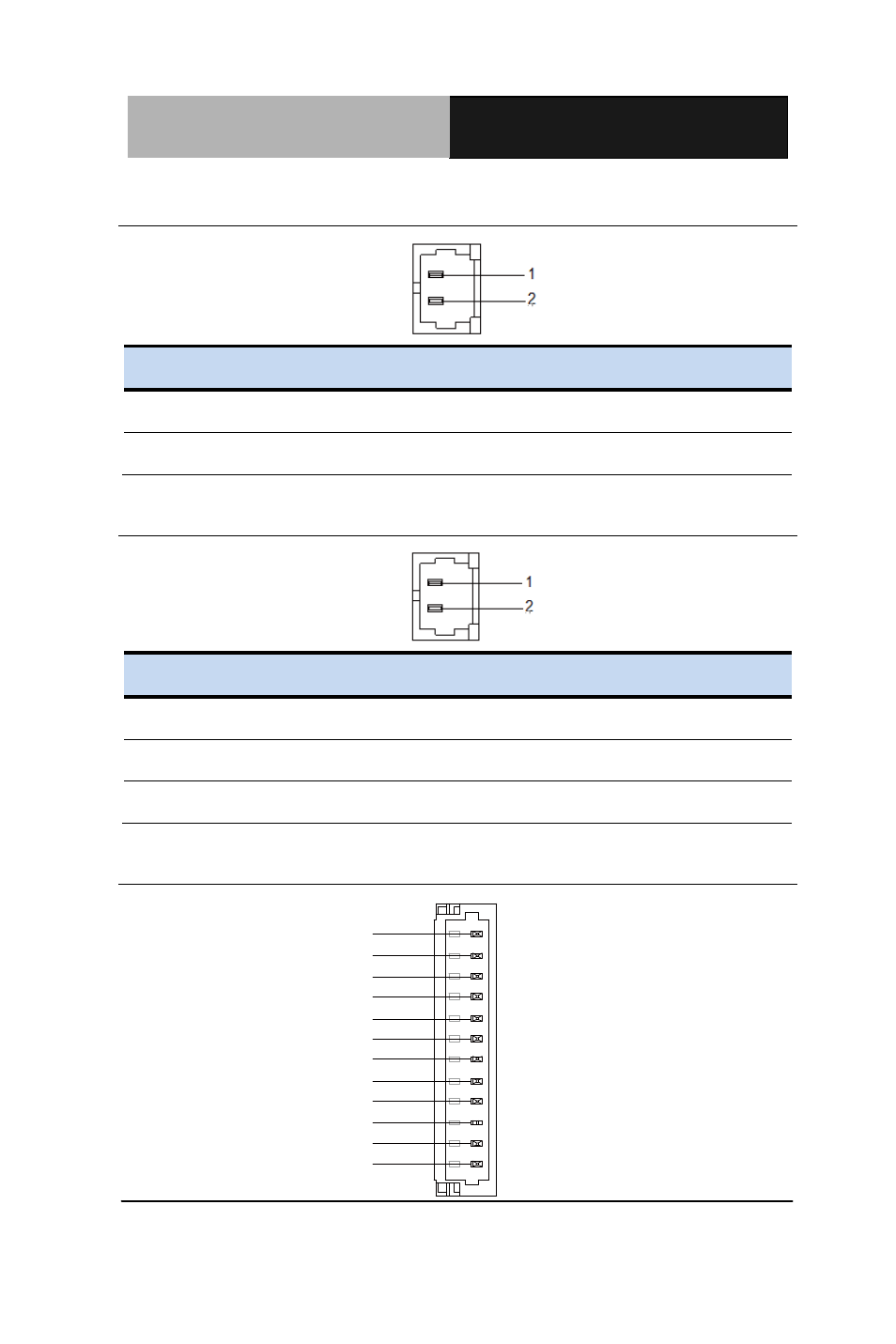

2.12 Buzzer (CN8)
Pin
Pin Name
Signal Type
Signal Level
1
+3.3V
PWR
+3.3V
2
SPK
OUT
2.13 RESET (CN9)
Pin
Pin Name
Signal Type
Signal Level
1
RESET
IN
+3.3V
2
GND
GND
8
DTR
OUT
2.14 LPC Debug Port (CN10)
LAD0
1
12
LAD1
LAD2
LAD3
LFRAME#
LRESET#
LDRQ0
LDRQ1
SERIRQ
GND
LCLK
+3.3V
