13. USB 2.0 connectors (10-1 pin USB5~14)
These connectors are for USB 2.0 ports. Connect the USB module cable
to any of these connectors, then install the module to a slot opening at the
back of the system chassis. These USB connectors comply with USB 2.0
specification that supports up to 480 Mbps connection speed.
CAUTION! Never connect a 1394 cable to the USB connectors. Doing so will
damage the motherboard!
NOTE: The USB module cable is purchased separately.

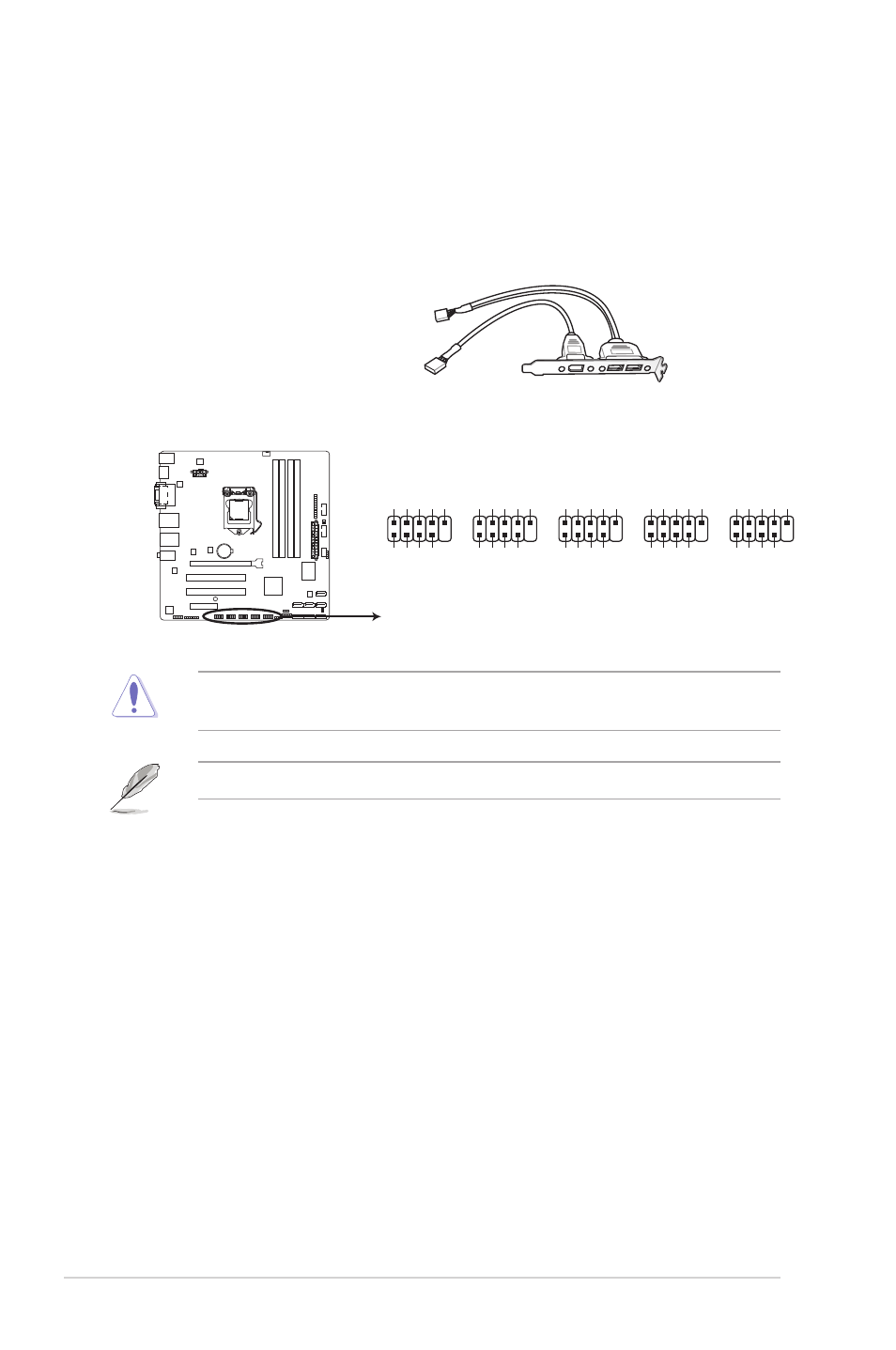

IMBM-Q67A
IMBM-Q67A USB 2.0 connectors
+5V_USB_P1314 S_USB_PN13 S_USB_PP13 GND NC
+5V_USB_P1314
S_USB_PN12 S_USB_PP12
GND
USB1314
PIN 1
+5V_USB_P1112 S_USB_PN11 S_USB_PP11 GND NC
+5V_USB_P1112
S_USB_PN10 S_USB_PP10
GND
USB1112
PIN 1
+5V_USB_P910 S_USB_PN9 S_USB_PP9 GND NC
+5V_USB_P910
S_USB_PN8 S_USB_PP8
GND
USB910
PIN 1
+5V_USB_P78 S_USB_PN7 S_USB_PP7 GND NC
+5V_USB_P78
S_USB_PN6 S_USB_PP6
GND
USB78
PIN 1
+5V_USB_P56 S_USB_PN5 S_USB_PP5 GND NC
+5V_USB_P56
S_USB_PN4 S_USB_PP4
GND
USB56
PIN 1
