Page 19

Installation

19 / 36

610.44444.40.000

Connect the inlet pipe:

Connect the system-side line for the pumped
gases/vapours (intake line) to the connecting
piece of the inlet connection (Item 037).

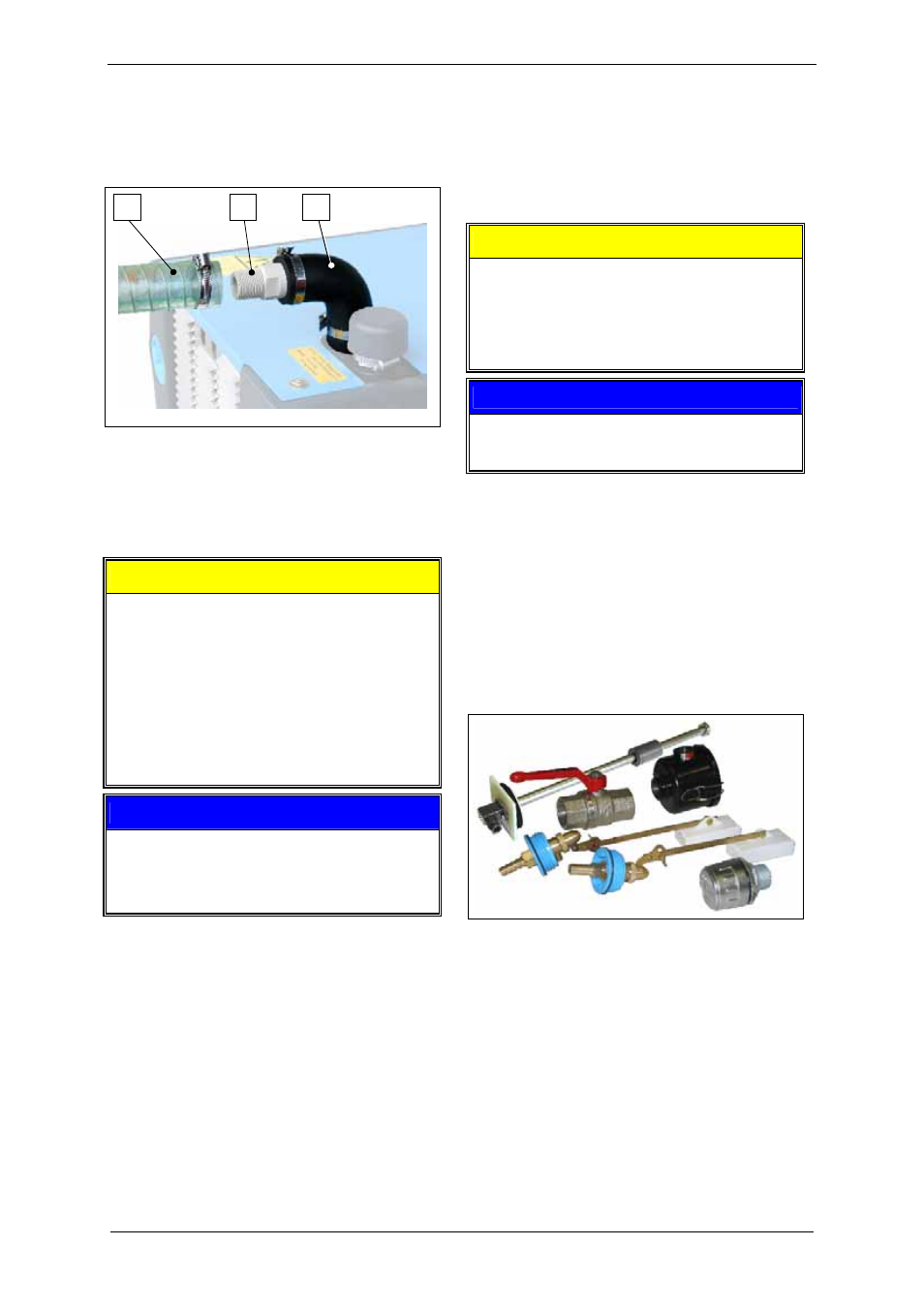

Fig. 10: Connection of inlet line on connecting
piece of inlet connection

1 Inlet

line

2 Connection

thread

3 Connecting

piece

CAUTION

Danger of damage to connecting piece!

The connection thread on the connecting piece
of the inlet connection is made of plastic, and
can therefore easily be damaged.

Exercise the appropriate caution when
connecting the inlet line.

The tightening torque must always be adjusted
to match the connection thread material.

NOTICE

Attach pipes/hoses free of mechanical
tensions.

Support the weight of the pipes/hoses.

5.4.2 Exhaust-air

connection

The pumped gases/vapours are expelled into the
surrounding area via the exhaust-air connection
(Item B). They are not directed through a pipe or
a hose.
As a result, no assembly is required here.

CAUTION

Danger from excessive pressure!

Danger from system clogging!

Do not remove the protective cap from the
exhaust-air connection

NOTICE

If delivery-side piping is desired:
Enquiry with Service is absolutely necessary!

5.5 Accessories

The following accessories are available
according to our catalogue:

 Inlet

Filter

 Vacuum Control Valve

 Feed

Regulator

 Outlet

Regulator

 Electrical Level Switch

 Drain

Valve

Fig. 11: Accessories
