5.3 Filling

 WARNING

Improper use of the system can result in
serious or even fatal injuries!!

Only operate the system
 for the purposes indicated under "Intended

Use"!

 with the fluids specified under "Proper use"!
 with the values indicated under 'Technical

Data'!

 WARNING

Danger from caustic or toxic fluids!

In case of corrosive of toxic fluids (operating
liquid, pumped gases/vapours):

Enquiry with Service is absolutely necessary!

Wear appropriate personal protective
equipment (protective gloves, safety goggles,
respiratory protection) when working on or
near the system.

If appropriate, attach appropriate warning
sign(s) to the system, e.g. 'Warning! Corrosive
materials!', 'Warning! Harmful or irritant
material!' or 'Warning! Toxic material'.

Proceed as follows:

Fill the separator:

Fill operating liquid (usually ordinary tap water)
into the separator via the fill opening (Item 007),

Filling amount: See Chapter 3.1, "Mechanical
data", Pg. 8.

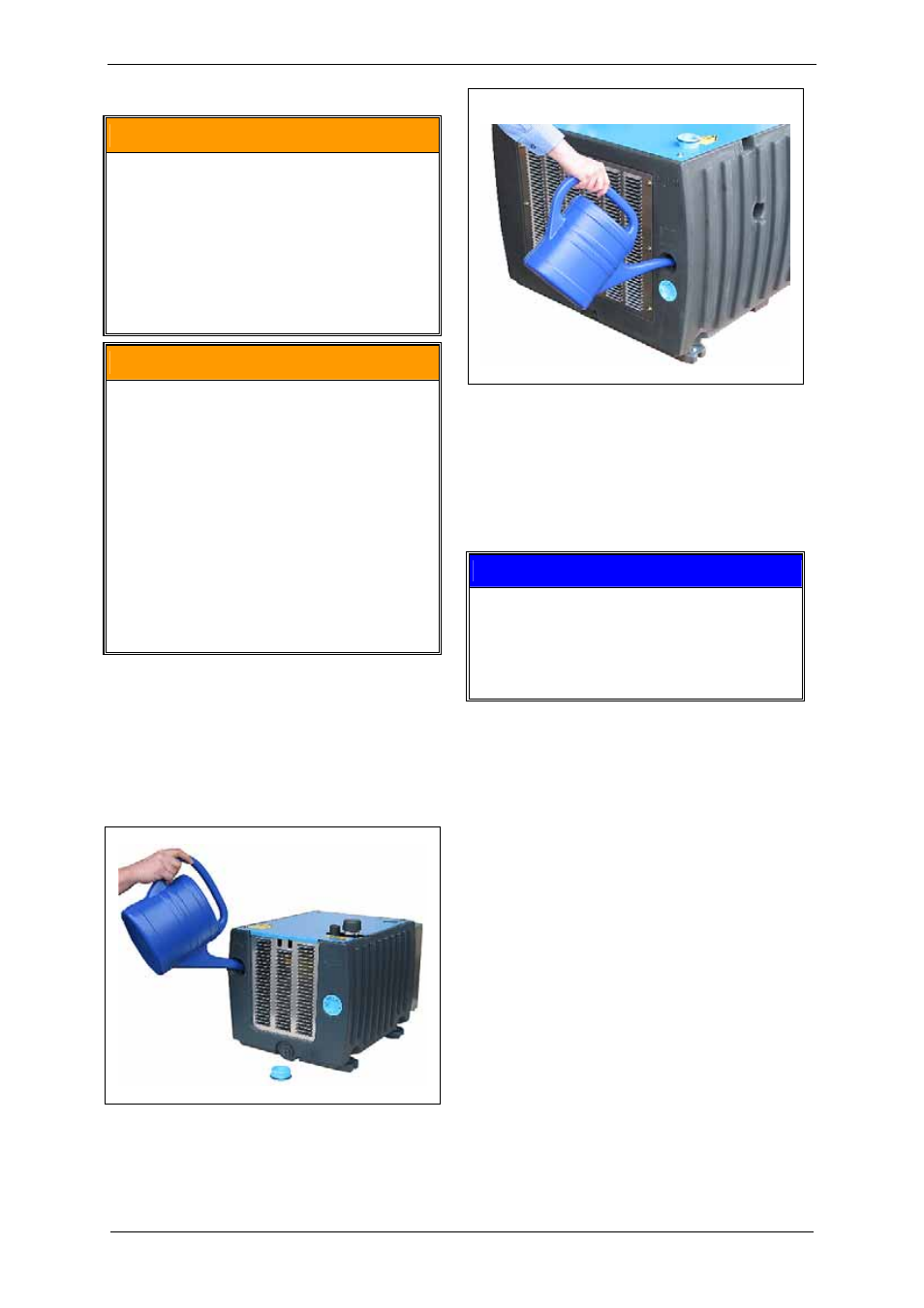

Fig. 7: Filling separator
Models 2BL2 041 - 141 (via the filling opening)

Fig. 8: Filling separator
Models 2BL2 251 - 341 (via the filling opening)

Check the liquid level in the separator:

Check via the fill level indicator (Item 010). When
doing so, watch the maximum operating liquid
level.

NOTICE

Max. operating-liquid level:

Lower edge of the fill opening (Item 007) =
level-indicator pointer at 1 (Item 010).

Do not fill the separator above this level!

When the unit is filled for the first time:
Fill installed unit:

Pour additional operating liquid into the inlet
connection (Item A) of the system so that
operating liquid flows into the interior of the
installed unit.

 Models 2BL2 041 - 2BL2 141:

1.5 l [0.396 gal (US); 0.330 gal (UK)]

 Models 2BL2 251 - 2BL2 341:

7.0 l [1.32 gal (US); 1.1 gal (UK)]
