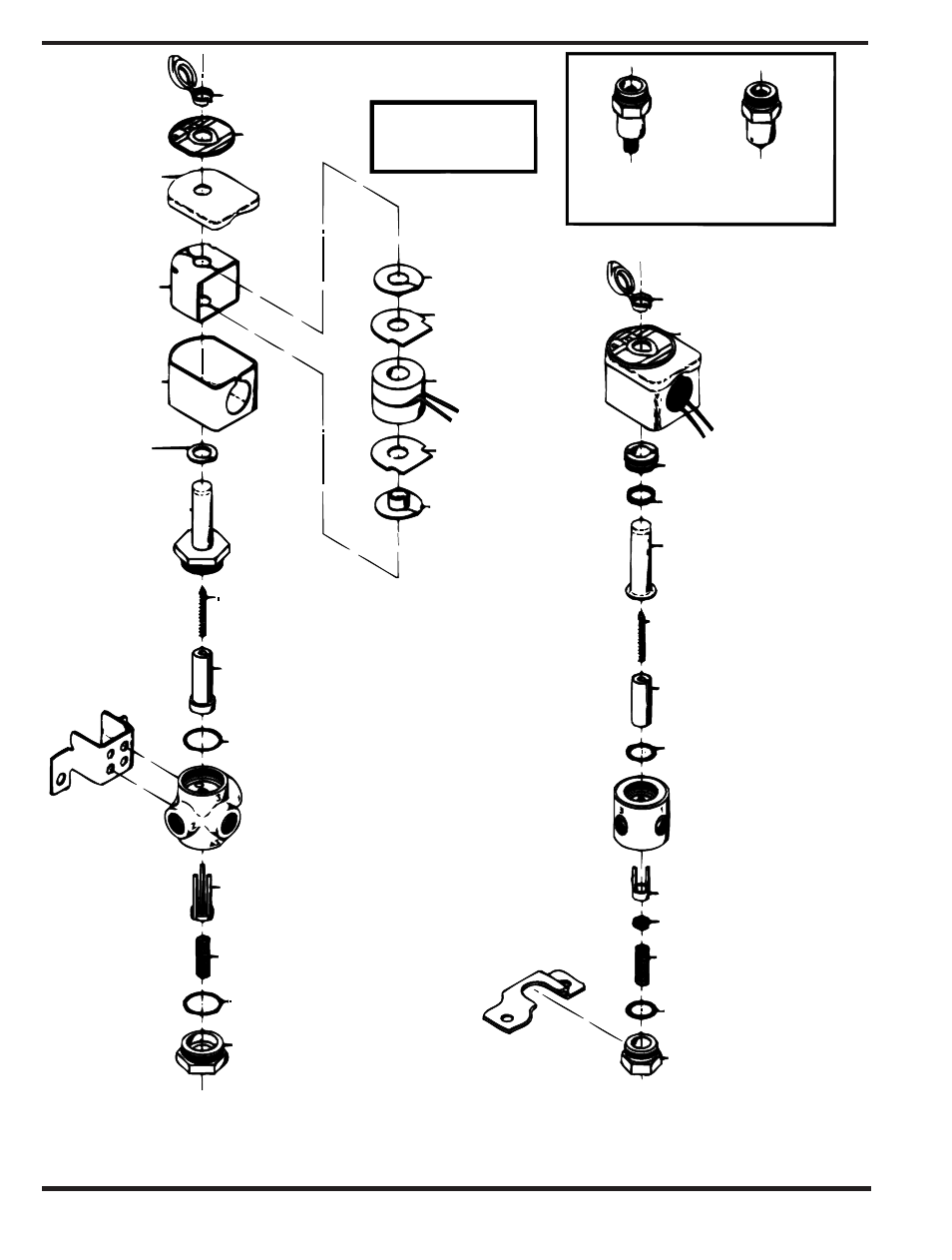

NOTE:
1. FOR MOUNTING, A FLAT SURFACE MUST BE PROVIDED ACROSS THE
ENTIRE LENGTH OF THE BRACKET. THE VALVE BODY BECOMES SECURE
TO BRACKET, WHEN BRACKET IS TIGHTENED IN TO POSITION.
IF THE VALVE HAS A MANUAL OPERATOR, A HOLE MUST BE MADE
THROUGH THE MOUNTING SURFACE FOR THE OPERATOR STEM.
RETAINING CAP
NAMEPLATE
COVER
YOKE
HOUSING
FLUX PLATE
(NOT PRESENT IN
ALL CONSTRUCTIONS)
SOLENOID BASE
SUB ASSEMBLY
(OPTIONAL)
MOUNTING BRACKET
(FOUR POSITIONS)
TWO SELF-TAPPING
SCREWS PROVIDED
CORE SPRING
(WIDE END IN CORE FIRST, CLOSED END
PROTRUDES FROM TOP OF CORE)
CORE ASSEMBLY
BODY GASKET
BODY
(BRASS)
DISC HOLDER
ASSEMBLY
DISC SPRING
BODY GASKET
END CAP
END CAP
BODY GASKET
DISC SPRING
DISC
DISC HOLDER
BODY
(ST. ST.)
BODY GASKET
CORE ASSEMEBLY
CORE SPRING
(WIDE END IN CORE FIRST, CLOSED END
PROTUDES FROM TOP OF CORE)
PLUGNUT/CORE TUBE
SUB-ASSEMBLY
BONNET GASKET
BONNET
SOLENOID ENCLOSURE
RETAINING CAP
PARTS INCLUDED IN
SPARE PARTS KITS
MANUAL OPERATOR
SCREW TYPE
(MS)
MANUAL OPERATOR
PUSH TYPE
(MO)
*
SLEEVE
INSULATING WASHER
(OMITTED WHEN MOLDED
COIL IS USED)
COIL
INSULATING WASHER
(OMITTED WHEN MOLDED
COIL IS USED)
SLEEVE
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
(OPTIONAL)
MOUNTING BRACKET
(SEE NOTE
CLA-VAL
