10

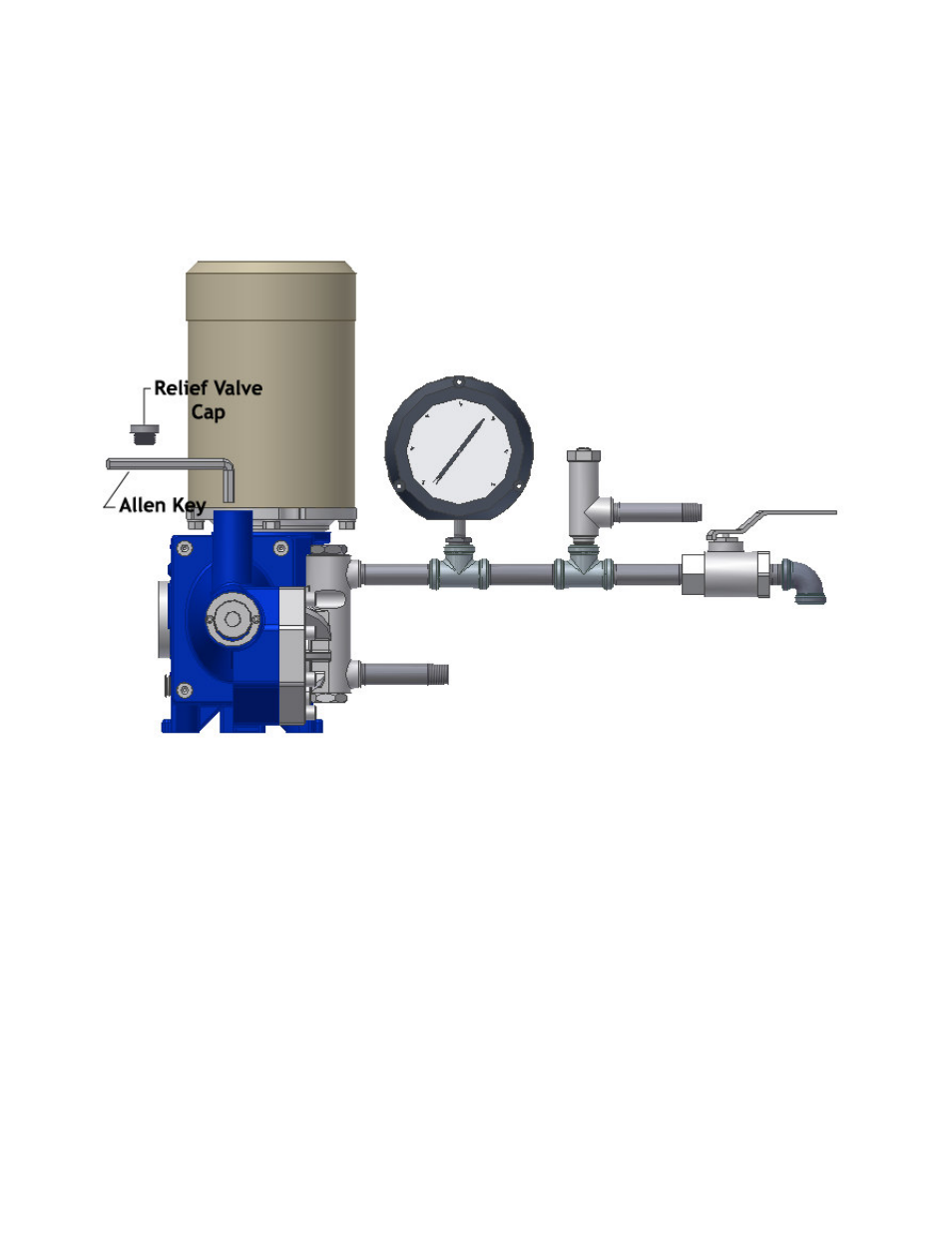

Take out Relief Valve cap to access Relief Valve screw (#32 on Parts Drawing). Insert Hex wrench to

adjust relief valve setting.

FIGURE 2

5.0

INSTALLATION OUTDOORS

The “dia-Pump” is a totally enclosed pump, which can be used outdoors or indoors. When installed out-

doors, make sure that the pump is protected against extremes of nature as follows:

5.0.1 Running of the pump when exposed to tropical sunshine with ambient temperature above 90°F

(32°C) would cause excessive oil and motor temperatures. The pump should be shaded and

located in such a way as to permit an ample degree of air circulation.

5.0.2 Under cold conditions, the pump should be insulated and a heater should be supplied in order

to maintain the hydraulic fluid at an ambient temperature above 30°F (—1°C.)
