15

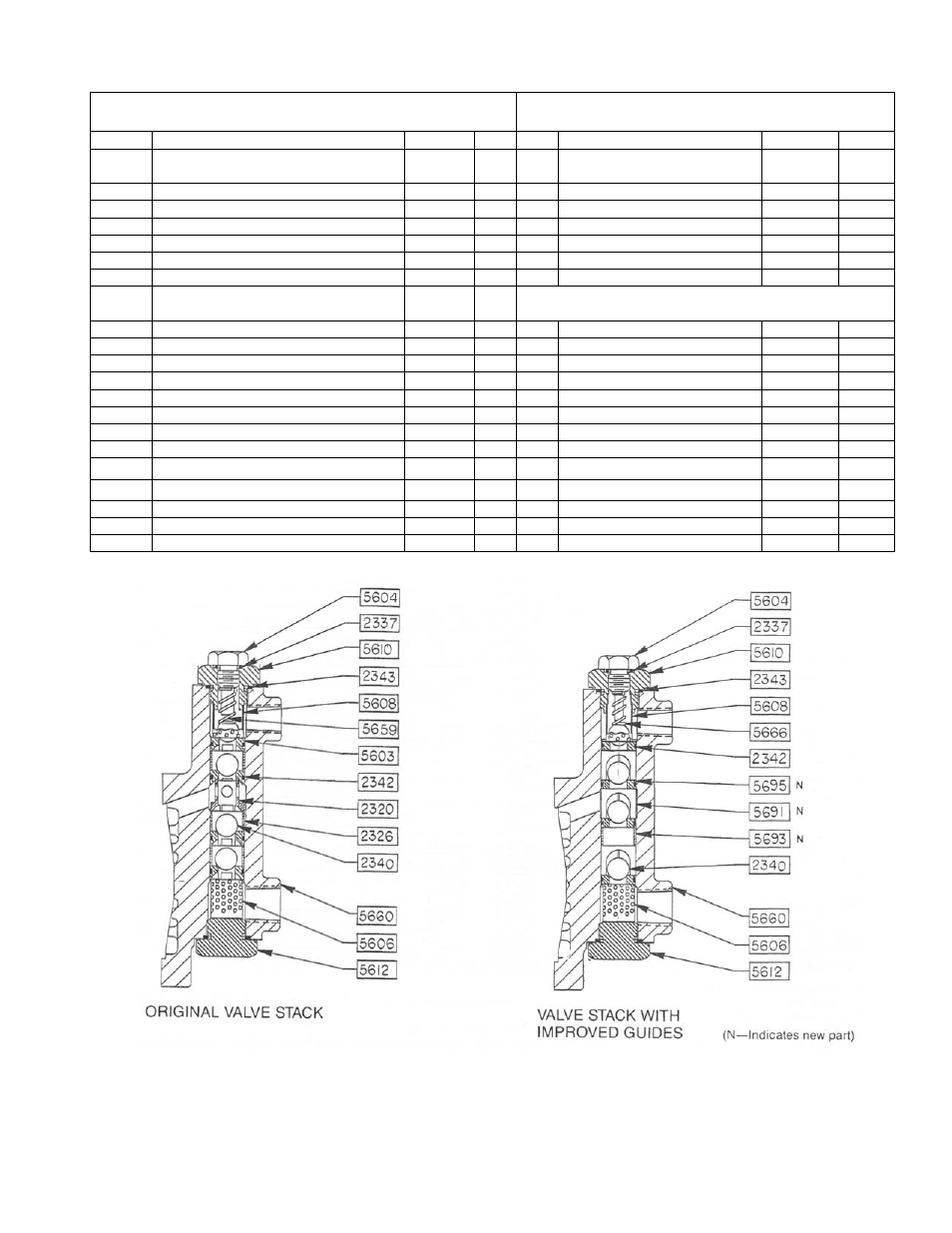

15.0.1 PARTS LIST FOR SERIES.560 "dia-PUMP"
FOR OLD STYLE PVC HEAD
Pump Serial Number < or = 147994
FOR NEW STYLE PVC HEAD REFFER DRG. PAGE#20
Pump Serial Number > or = 147995
Fig # Description Part# Qty Fig# Description Part# Qty
Vent Plug/cross Connection '0"
2337
Ring
100325 2
5619 Head Retainer Plate (SS) 000319 1 1 Liquid (Pump) Head 004159 1
5621 Pump Head Diaphragm Chamber 000318 1 2 Check Valve Assemblies 004165 2
5622 Pump Head Backup Plate 000330 1 3 Hex Head Cap Screws 107766 8
5623 Vent Plug 000331 1 4 Flat Washers 106857 8
5624 Valve Seat 000332 2
5625 Discharge Cap 000321 1
5626 Suction Cap 000322 1
FOR NEW STYLE KYNAR HEAD REFER DRG PAGE#20
Pump Serial Number > or = 147995
5627 Anti-Siphon Spring 000339 1
5628 Discharge & Suction Cap "0" Ring 100274 2 1 Liquid (Pump) Head 004160 1
5630 Valve Seat "0" Ring 100273 2 2 Check Valve Assemblies 004166 2
5633 Spacer 000325 4 3 Hex Head Cap Screws 107766 8
5635 Washer 100069 2 4 Flat Washers 106857 8
5638 Upper Spacer 000334 1
5639 Spacer 000336 1
5642 Suction Ball Retainer & Spacer 000338 1
5643 Valve Body Screw - 5/16" x 4 1/2" Lg. 100249 2
5645 Valve Body Screw - 5/16" x 2 1/4" Lg. 100279 6
5646 Valve Body Screw - 1/4" x 2 1/4" Lg. 108100 2
5649 Valve Ball 100275 2
5667 Valve Body Assembly 002188 1
PARTS ORDERING INSTRUCTIONS
Note: For prompt entry of parts orders: your order must include both model and serial numbers.
