SW AV Series Switchers • Operation

Audio switcher

— Switches audio on captive screw or RCA connectors. May

or may not include video switching.

Audio-only switcher

— Switches audio only on captive screw or RCA

connectors. No video switching.

Video AND audio switcher

— Switches both composite video or S-video

AND audio on captive screw or RCA connectors.

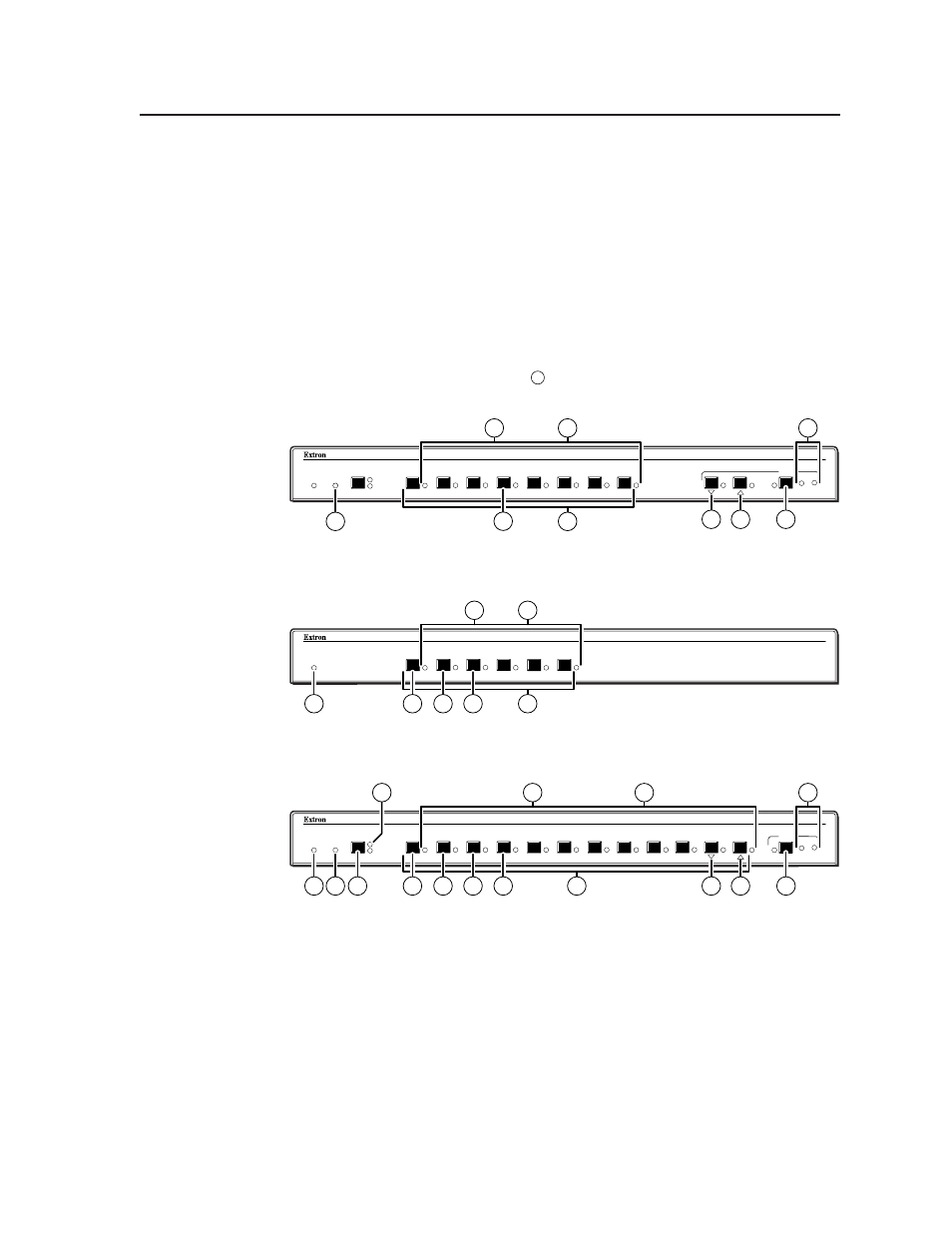

Figure 3-1 shows the front panel of an 8-input audio-only switcher. Figure 3-2
shows the front panel of a 6-input video-only switcher. Figure 3-3 shows the front
panel of a 12-input video and audio switcher. These three examples show all of the
combinations that you may encounter with your particular switcher. Many of the
input buttons and LEDs on figure 3-1 through figure 3-3 have dual functions. Dual
function controls have two callouts (

n

numbers); each callout is related to its

function in the following pages.

SW SERIES

VIDEO / AUDIO SWITCHER

AUDIO

CONF/SAVE

EXECUTIVE

MODE

8

7

6

5

4

3

2

1

-dB

+dB

AUTO SWITCH

ACTIVE

VIDEO

AUDIO

I/O

15

4

9

8

3

6

7

5

14

Figure 3-1 — SW 8A front panel

SW SERIES

VIDEO / AUDIO SWITCHER

3

2

1

AUTO SWITCH

ACTIVE

6

5

4

AUTO SWITCH

13

4

9

3

10

12

11

Figure 3-2 — SW 6SV front panel

SW SERIES

VIDEO / AUDIO SWITCHER

AUDIO

CONF/SAVE

EXECUTIVE

MODE

12

11

10

9

8

7

6

5

4

3

2

1

VIDEO

AUDIO

I/O

-dB

+dB

AUTO SWITCH

ACTIVE

4

9

8

3

6

7

1

5

2

13 15

10

12

14

11

Figure 3-3 — SW 12VA RCA front panel
