SW2 VGAcc and SW2 RGBHVcc • Introduction
Introduction
SW2 VGAcc and SW2 RGBHVcc • Introduction
About this Manual
This manual contains information about the Extron SW2 VGAcc
and SW2 RGBHVcc switchers, detailing how to operate and
configure them.
SW2 VGAcc and SW2 RGBHVcc switchers
The SW2 VGAcc and SW2 RGBHVcc are input switchers, each
with one buffered output and 350 MHz (-3dB) bandwidth (the
SW2 VGAcc is shown in figure 1-1).
The SW2 VGAcc accepts the following signals:
• RGBHV (VGA/SVGA/XGA/XGA2/UXGA)
• RGBS
• RGsB
• RsGsBs
The SW2 RGBHVcc accepts the following signals:
• RGBHV
• RGBS
• RGsB
• RsGsBs
• component video
• S-video (Y/C)
• composite video
With an optional Mac/VGA adapter, both switchers can switch
Macintosh signals.
1-2

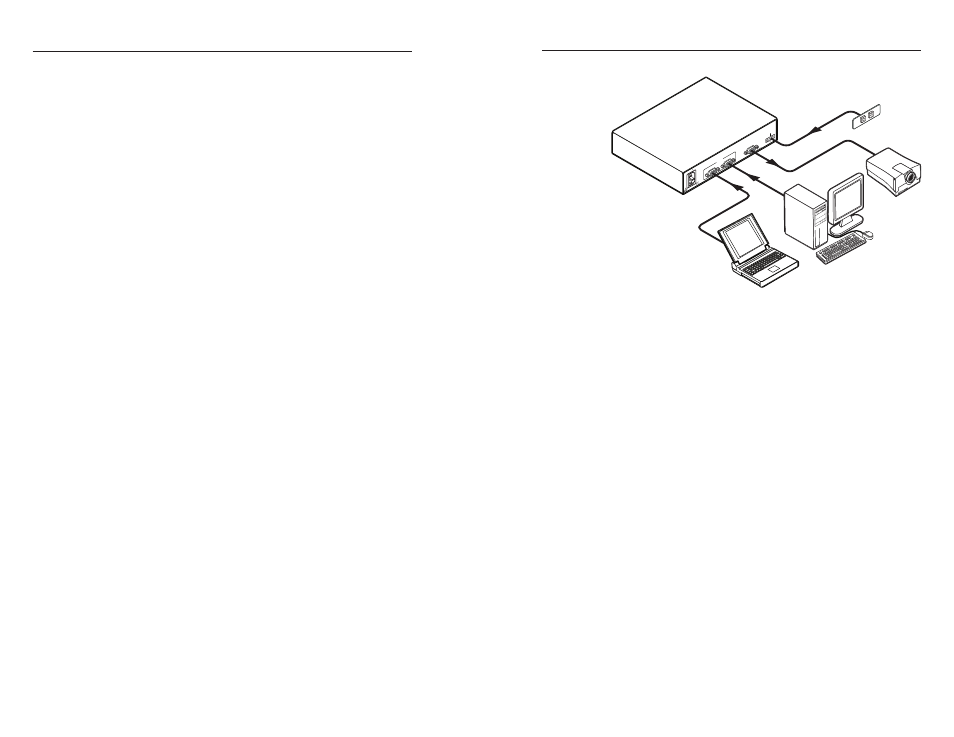

Figure 1-1 — Typical SW2 VGAcc switcher
application
These switchers are housed in 1U, half rack, and 6" deep
enclosures with internal universal 100 - 240 VAC 50/60 Hz
power supplies. Both models provide contact closure and tally
out remote control and feedback capability.
Front panel buttons or contact closure can be used for input
selection.
The SW2 VGAcc and SW2 RGBHVcc are high performance
video switchers. These switchers are designed to route high
resolution source signals to a video projector, monitor, or LCD
panel. Users may select the desired input channel using the
front panel Channel Select button or via remote control by using
a wired remote, a third-party control system, or any other
device capable of providing a momentary contact closure.
Features
350 MHz Video Bandwidth — The SW2 models provide high
performance, ultra-high resolution video signals with no
signal loss.
Front Panel Channel Selection Button and LED indicators
Contact closure /Tally Out — Contact closure allows for remote
selection of an input channel using contact closure.
A tally out status pin provides feedback to a control
system to indicate which input is currently selected.
1-3
IN PU TS
OU TP UT
1
2
50 /60 H z
10 0-2 40 V 0.2 A
1 2 1 2
SW 2 VG Ac c
CO NT AC T TA LL Y OU T
Extron
SW2 VGAcc
Switcher
Laptop
Computer
LCD
Projector
2-button
Contact Closure
with Tally LEDs
