SCP 100P • Specifications, Parts, Accessories, Dimensions SCP 100P • Specifications, Parts, Accessories, Dimensions
Specifications, Parts, Accessories, Dimensions, cont’d
A-3

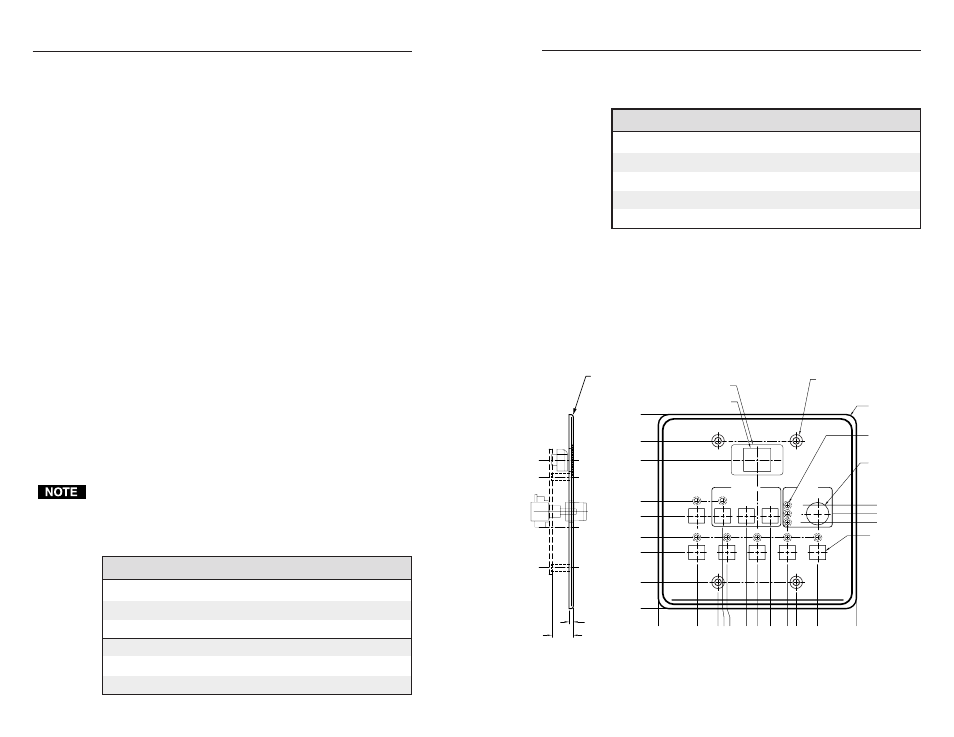

Panel Dimensions
The diagram below has been reduced to fit on the page. All
dimensions are given in inches. The symbol “ø“ indicates a
diameter.
Extron SCP 100P
0.06" RADIUS
AROUND THE
TOP OF THIS
EDGE.
0.000
0.500
0.609
A A
A A
1.300
1.650
2.150
3.450
3.891
4.500
2.500
0.000 0.894 1.388 1.494 1.594 2.044 2.294 2.594 2.994 3.200 3.694 4.588
2.400
2.200
2.000
MIN.
CLIP
VID1 PC1
ROOM
PC2 INPUT 3
MODE MUTE
DISPLAY AUDIO
POWER
VID2
MAX.
VOLUME
ø.125 THRU WITH
ø.20 x 90˚ C'SINK
ON FAR SIDE
(
10 PLACES)
4 — R 0.25
ø.160 THRU WITH
ø.290 x 90˚ C'SINK
(4 PLACES CODED A)
RECT. 0.700 x 1.200
0.40 RECESS WITH
R 0.06 AT 4 CORNERS
RECT. 0.536 x 0 .630 THRU
RECT.
0.331 x 0.371
THRU (9 PLACES)
ø.520 THRU
A-2
Included Parts
These items are included in each order for an SCP 100P:
Included parts Part number
SCP 100P (grey) 60-331-01
SCP 100P (black) 60-331-02
SCP 100P (white) 60-331-03
SCP 100P User’s Manual 68-390-01
3.5 mm, 5-pole captive screw connectors 10-319-10
2-gang electrical box
Specifications, Parts, Accessories, Dimensions
or
or
Specifications
Control/remote — control pad
IR controller module ......... IR 401 (optional)
General
Power ................................... 12VDC, at 60 mA, from the System 5cr Plus switcher
Temperature/humidity .... Storage -40° to +158°F (-40° to +70°C) / 10% to 90%, non-
condensing
Operating +32° to +122°F (0° to +50°C) / 10% to 90%, non-
condensing
Rack mount ......................... No, but furniture/wall mountable with included
faceplates and electrical boxes or optional mounting
bracket kits or AAP wall plates.
Enclosure type .................... Metal
Enclosure dimensions
Plate ................................ 4.5" H x 4.6" W x 0.1” D (2 gang)
11.4 cm H x 11.7 cm W x 0.3 cm D
Box .................................. 3.75" H x 3.63" W x 3.5" D
9.5 cm H x 9.2 cm W x 8.9 cm D
Boards ............................. 2.9" H x 3.5" W x 0.8” D
7.4 cm H x 8.9 cm W x 2.0 cm D
(Allow at least 1.5” (3.8 cm) depth in the wall or furniture.
Depth excludes connectors and knobs.)
Product weight ................... 0.3 lbs (0.1 kg)
Shipping weight ................. 3 lbs (1.4 kg)
Vibration .............................. ISTA/NSTA 1A in carton (International Safe Transit
Association)
Listings ................................ UL, CUL as a component of the System 5cr Plus
Compliances ....................... CE as a component of the System 5cr Plus
MTBF ................................... 30,000 hours
Warranty ............................. 3 years parts and labor
Specifications are subject to change without notice.
Accessories
These recommended items are available from Extron:
Cable/accessory Part number
Comm-Link cable (50’) 29-461-01
Comm-Link cable (100’) 29-461-02
Comm-Link cable (200’) 29-461-03
Comm-Link cable (400’) 29-461-04
2-gang mounting bracket 70-086-01
