Installation and
Operation
This section describes the installation and operation of the PowerCage MTP T AV and
MTP R AV, including:
• Installing the Boards into the PowerCage Enclosure
• Connections, LEDs, and Encoders
• PowerCage Front Panel Port, Control, and Indicators
• Operation
Installing the Boards into the PowerCage Enclosure
Up to 16 single slot or 8 dual slot input/output boards can be inserted into the PowerCage
enclosure. All PowerCage MTP AV transmitters and receivers are all single slot boards.
NOTES: The boards are hot-swappable; they can be installed or removed without
turning off or disconnecting the power to the PowerCage enclosure.
Use ESD precautions when installing a board to avoid damaging the
board. Keep the board in the anti-static bag until needed. Use proper
grounding techniques during installation.
1. Where applicable, remove as many blank plates or previously installed boards from the
rear of the PowerCage as necessary for the number of new boards to be installed.
2. Hold the board with the signal connectors towards you and the LED at the top, and
align the top and bottom grooves of the board with the slide posts in the selected
enclosure slot. See the example in figure 1.
MONO A UDIO OUTPUT
1
2
S H A R P GAIN
Y/VID
C
INPU
T
Po we rCa ge MTP R AV
Tx R x
HD/SDI INPU
T
H D/SDI OUTPUTS
M O D E
Po we rCa ge
FO X 3G HD-SD
I
1 2
REMO
TE RS-232
RS-232 O VER FIBER
Tx Rx
Tx
ALARM
Rx
OUTPUT RGB
Po we rCa ge
FO X 4G RX RGB
Tx Rx
L
R
A UDIO
5A MAX. 100-240V 50/60H
z
N15 778
C
US
LIS TED 1T2 3 I.T. E.
Screws
(2 per board)
1 2
REMO
TE RS-232
RS-232 O VER FIBER
Tx Rx
Tx
ALAR M
Rx
OUTPUT RGB
Po we rCa ge
FO X 4G RX RGB
Tx Rx
L
R
A UDIO
Align board and
slide into slot.
16 Available Single Board Slots or
8 Double Board Slots
Power
Supply

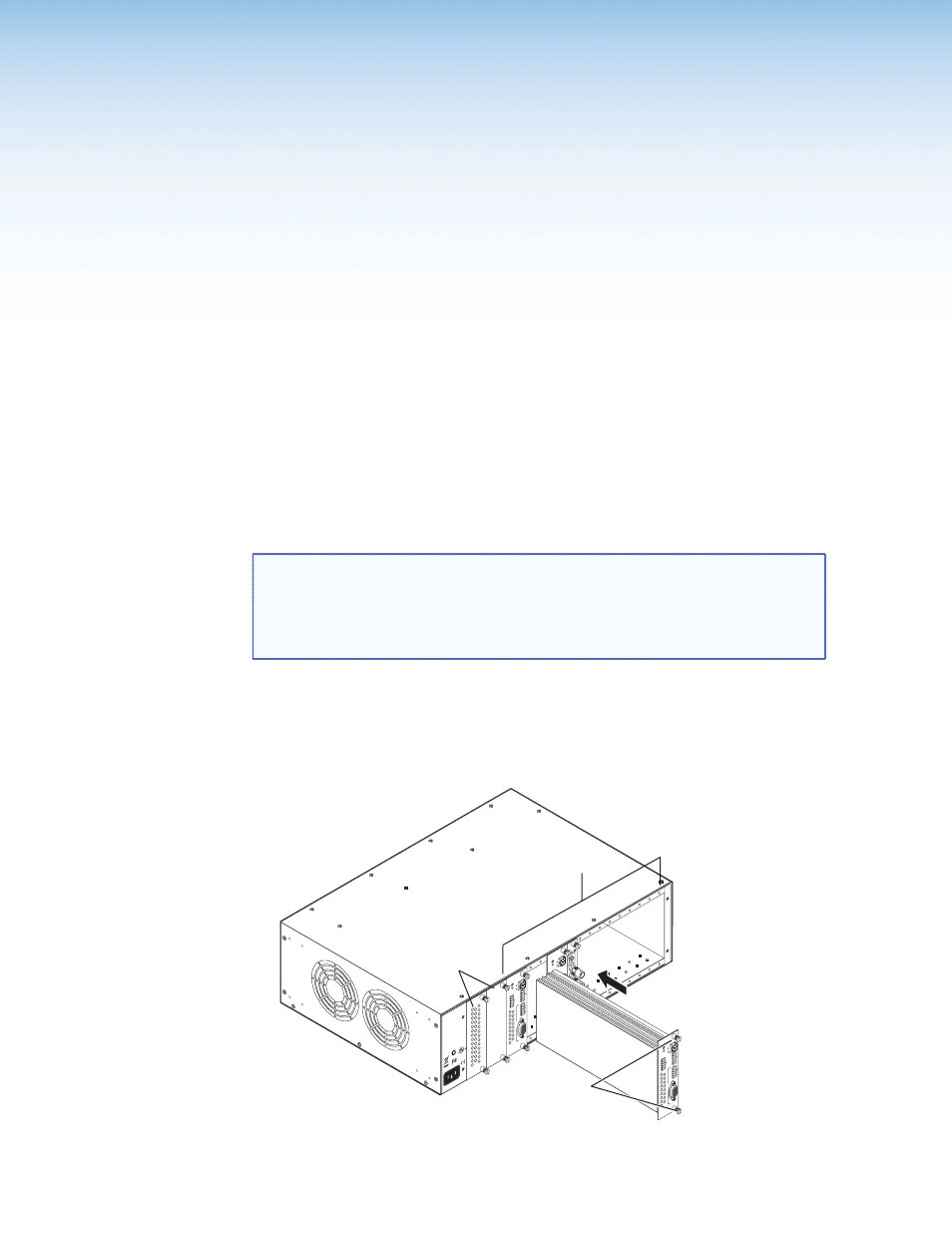

Figure 1. Inserting Boards into the PowerCage Enclosure
PowerCage MTP T AV and PowerCage MTP R AV • Installation and Operation 3
