TP T 15HD 45 and TP T A 45 • Installation 2-5
Front Panel Connectors and Indicators
AUDIO
INPUT
COMPUTER
INPUT
1
2
3
1
TP T 15HD 45 TP T A 45

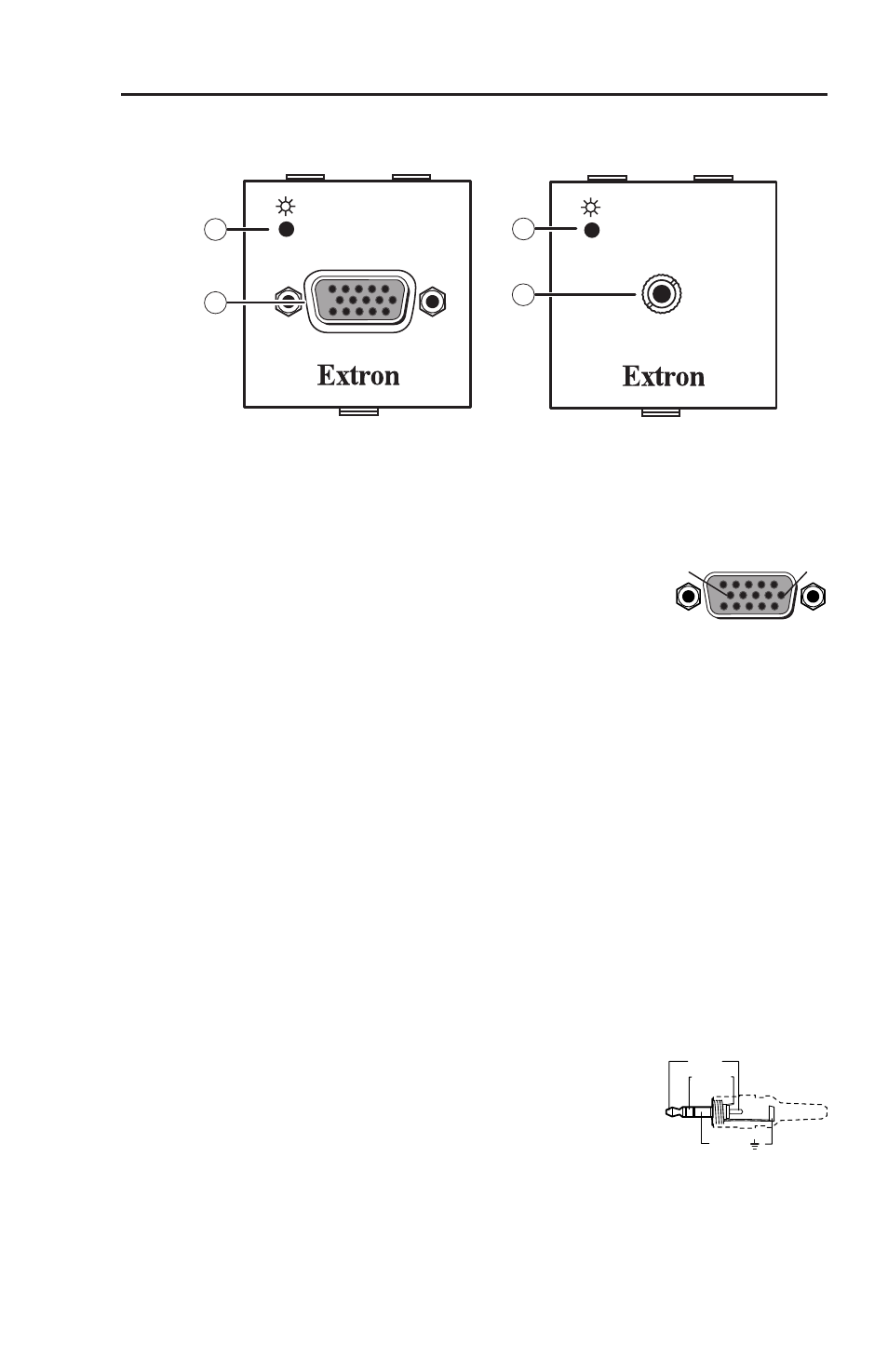

Figure 2-2 — Front panel views
a
Power LED indicator — The LED lights green whenever power
is applied.
b
15-pin HD video input connector — Connect
computer video input to this connector.
N Input only sync signals, no video signals, on the sync
pins, 13 and 14.
For component video, use the R (R-Y) and R return pins
(pins 1 and 6), G (Y) and G return pins (pins 2 and 7),
and B (B-Y) and B return pins (pins 3 and 8).
For S-video, use the R, R return (C-chroma), G, and G
return (Y-luma) pins.
For composite video, use the G pin and the associated
return pin. For additional genlocked video signals, use
the R, B, and associated return pins.
The TP T 15HD 45 and TP T A 45 are only compatible
with the RGBHV and RGBS VTR series of receivers.
c
3.5 mm stereo mini jack input— Connect
unbalanced audio to this stereo jack. Wire the
male plug as shown on the right.
N Input only analog and line level audio signals on this
connector.
5 1
15 11
6 10
Female
Sleeve ( )
Ring (R)
Tip (L)
