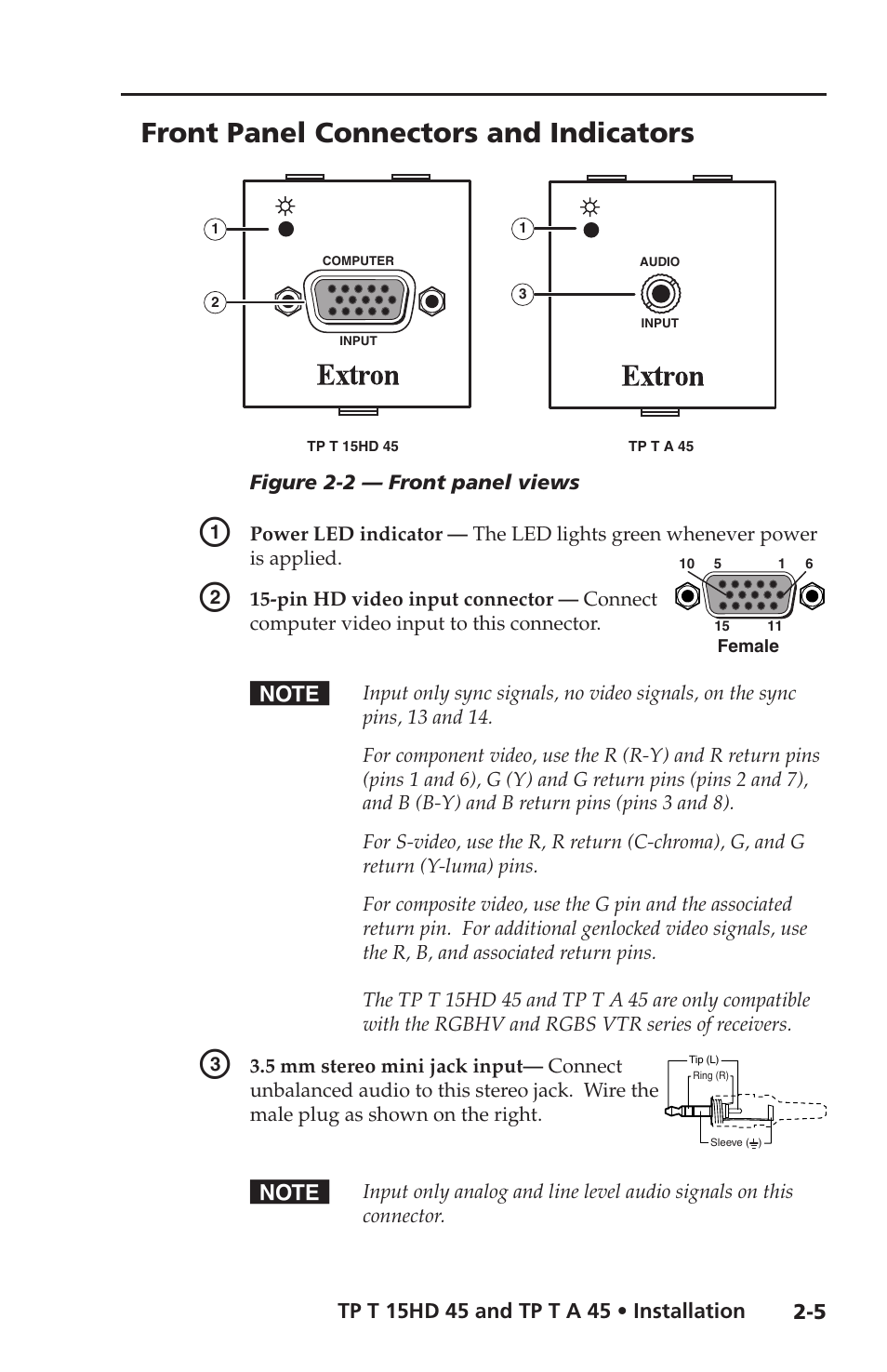

Front panel connectors and indicators – Extron Electronics TP T 15HD 45, TP T A 45 User Guide User Manual
Page 15
