Two-bank DIP switches — These switches affect only the video output ( g ), not the
“monitor” output ( d ). The Gain/Peak DIP switch should be on (up) when the output
cable is over 100 feet (30.5 m). The Out Imp DIP switch changes output impedance. If
all connections and operations are correct, but the output device has no picture, switch
to the other position.
g
Video output connector — Connect the video output device (projector, display panel,
or monitor) to this connector.
h

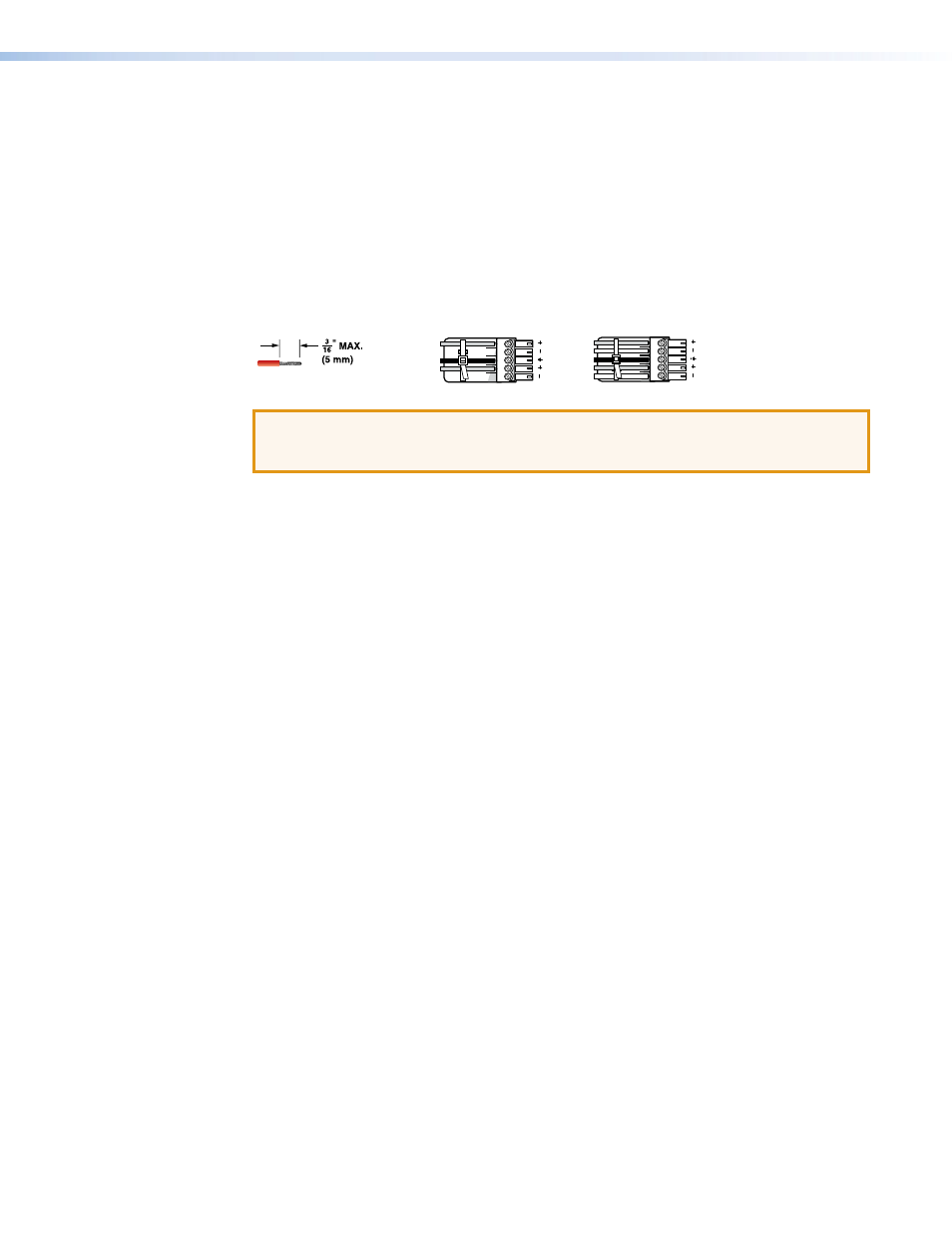

Audio output connector — Wire a 3.5 mm 5-pole captive screw audio connector as
shown below, and plug it into this connector. Connect the other end of the cable to an
audio output device or recorder.
Do not tin the wires!
Unbalanced Stereo Output Balanced Stereo Output
Ring
Sleeve(s)
Tip
Tip
Ring
Sleeve(s)
Tip
Tip
NO GROUND HERE.
NO GROUND HERE.
LR LR
ATTENTION: Potential Damage to Property.
Connect the sleeve to ground (Gnd). Connecting the sleeve to a negative (-) terminal
will damage the audio output circuits.
i
Local monitor cable assembly — Use this cable assembly to connect the local
monitor (video) and speaker (audio) to the unit. The chain is used to attach the cable to
the unit, to prevent the cable from being lost or misplaced.
P/2 DA2xi MT User Guide User Guide • Installation 4
