Installation
The Installation section describes:
•
Connectors, Indicators, and Controls
•
Connectors, Indicators, and Controls
The front and rear panels of the P/2 DA2xi MT are described below.
AUDIO
INPUT
MONITOR
L
R
P/2 DA2xi MT
OUTPUT
1
ON
2
EXT POWER (see manual)
12V
0.2A MAX
GAIN/PEAK
OUT IMP
7
6
1
3
4
75
66
2
6
9
67
68

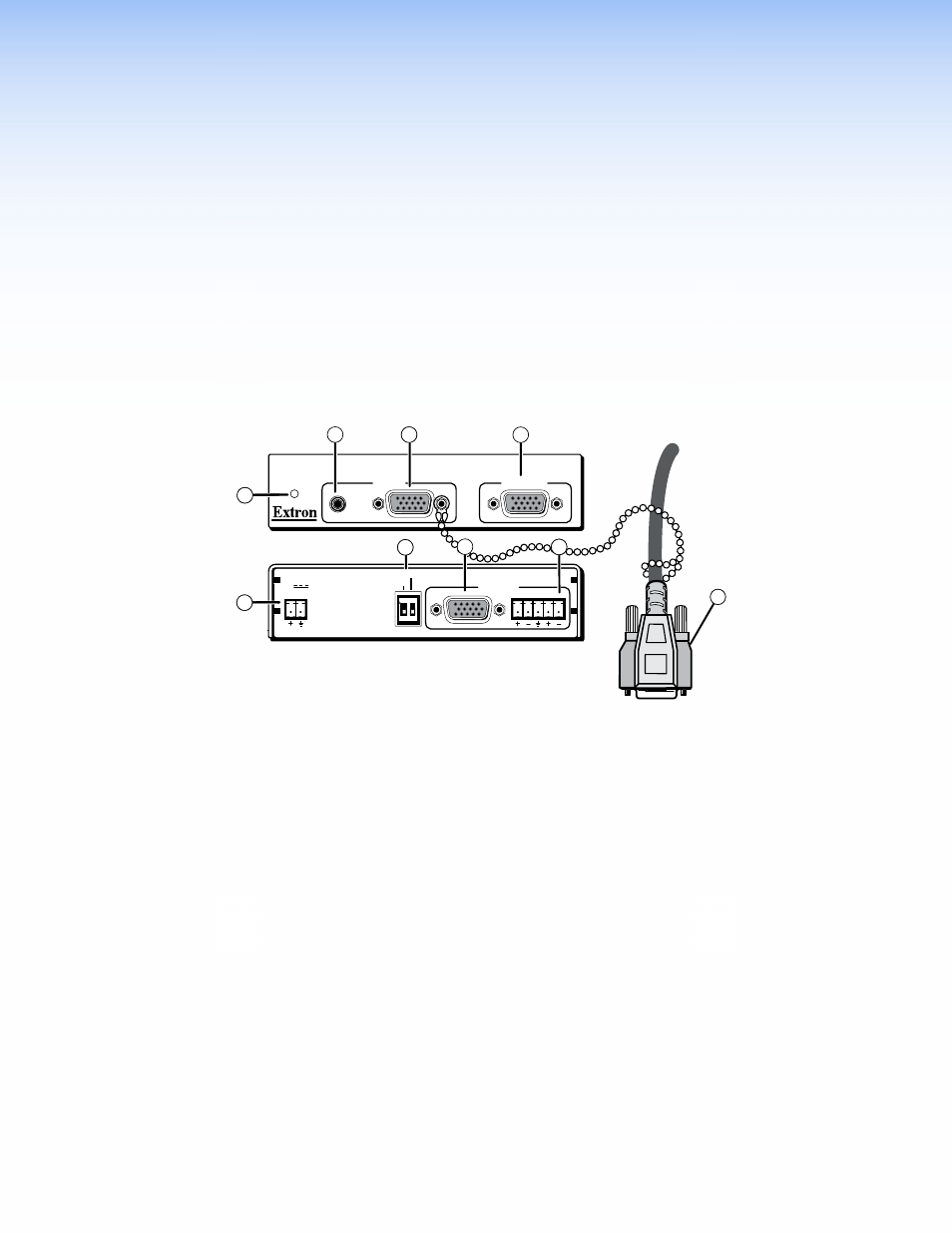

Figure 2.
Front and Rear Panels
a
Power and Signal indicator LED — When lit green, this LED indicates that the
distribution amplifier is receiving both power and a computer signal. When lit amber, it
indicates that the distribution amplifier is receiving power but no computer signal.
b
Audio input connector — Plug a 3.5 mm, mini plug audio cable from the sound card
of a computer into this jack.
c
Video input connector — Connect the VGA-QXGA output of a computer to this
connector.
d
Monitor connector — Connect a local monitor to this connector.
P/2 DA2xi MT User Guide • Installation
2
