Introduction, Features – Extron Electronics P-2 DA2xi MT User Guide Rev. G User Manual
Page 6
P/2 DA2xi MT User Guide • Introduction
Introduction
The Extron P/2 DA2xi MT is a distribution amplifier that accepts video input from a VGA,
XGA, UXGA, or QXGA compatible PC and distributes the signal to separately buffered
outputs. The output on the back of the unit can be extended with Extron VGA Series cables
from 6 feet to 250 feet in length. The MT model also has audio input and output.
Features
•
Power and Signal LED — Green LED = power + signal. Amber LED = power but no
signal. Off = no power.
•
Gain and Peak DIP switch — Use this feature to compensate for longer cable runs.
•
Out Imp DIP switch — Changes the output impedance to be compatible with all
projectors.
•
Cable retention chain — The input cable can be secured to the unit with the supplied
chain (attached to the right standoff nut of the input VGA connector) to prevent the
cable from being lost or misplaced.
MONITOR
AUDIO
INPUT

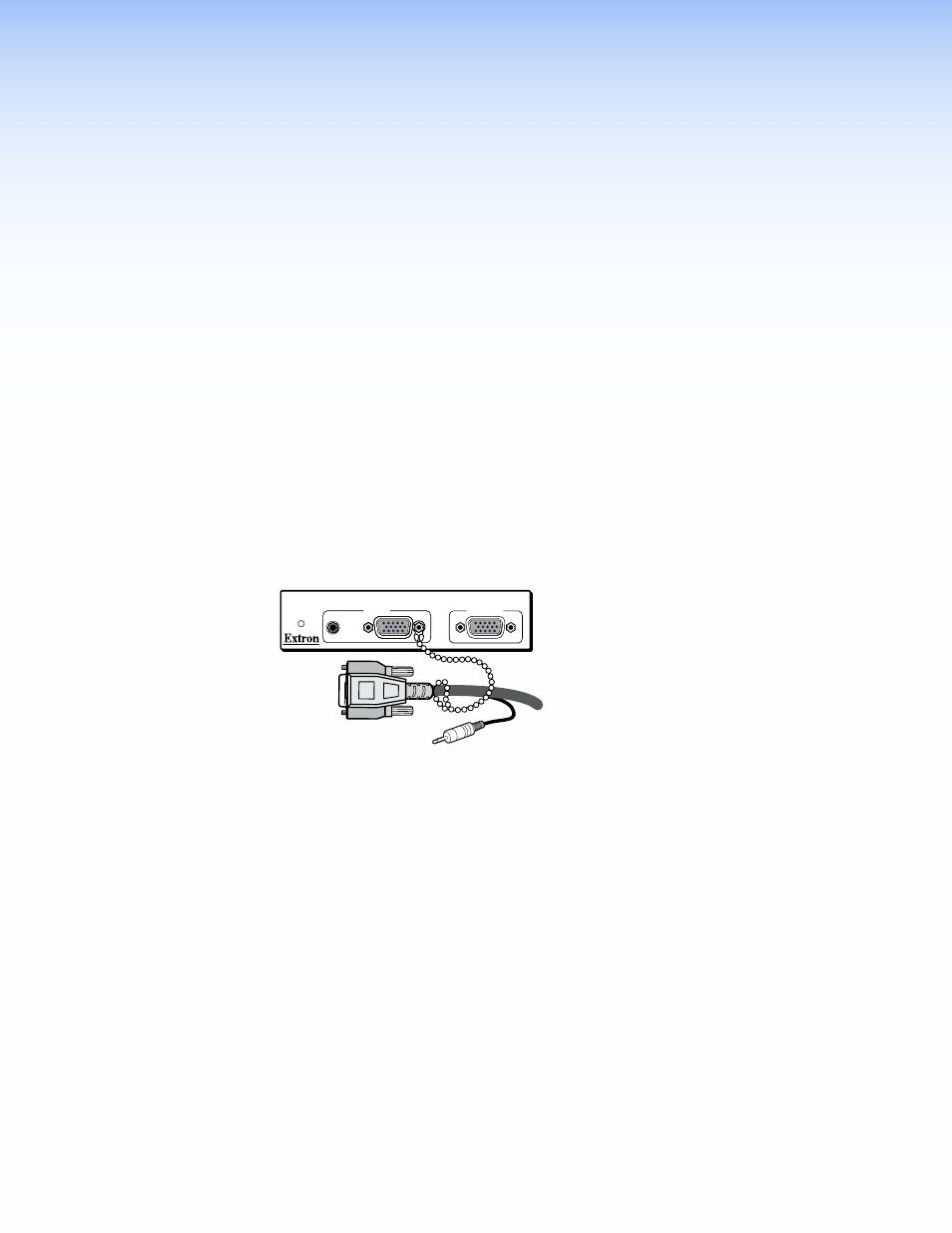

Figure 1.
P/2 DA2xi MT Distribution Amplifier
1
