Installation — Reference Information, cont’d

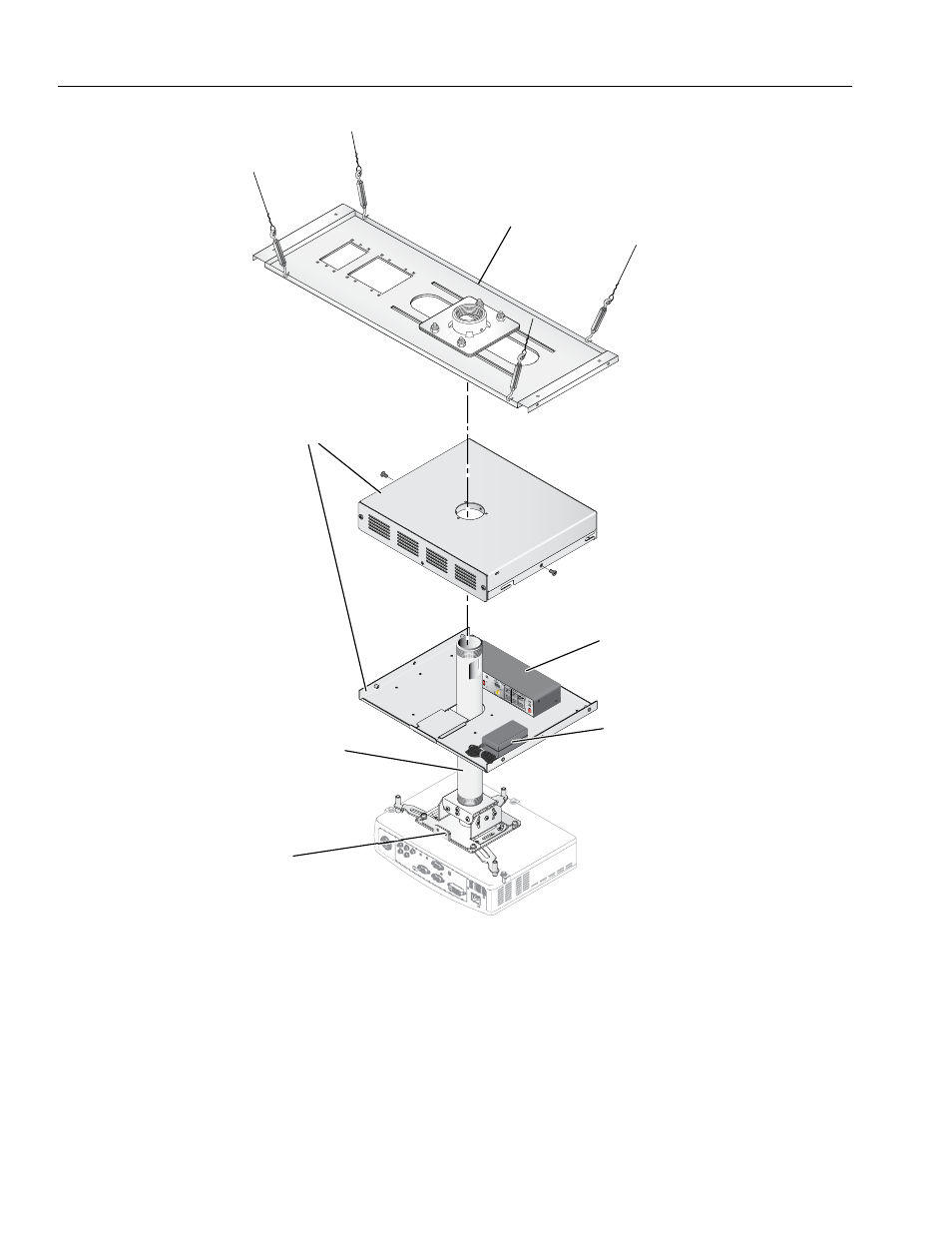

Ceiling mount installation diagram (with item weights) for PoleVault System
L
R
AU
X/MIX IN
1B
1A
I
N
P
U
T
S
O
U
T
P
U
T
S
2B
2A
4
3
RS-232 MLC/IR
DC
VO
L
4/8
Ohms
AMPLIFIED OUTPUT
S
VO
L/M
UT
E
Tx
A
B
C
Rx
IR
12V
10V
PO
WER
12V
3A
M
AX
US
LIS
TED
17
TT
AUDIO/VIDE
O
AP
PARA
TU
S
®
RG
B
VID
EO
RG
B
VID
EO
STEREO
HIGH
PA
SS
FIL
TER
ON
OF
F
DU
AL
MONO
Extron
PMK 450
Low Profile Multi-Product
Pole Mount Kit
weight 2.5 lbs (1.2 kg)
Extron
Power Supply
weight 0.8 lbs (0.4 kg)
Extron
PVS 204SA
PoleVault
™
Switcher
weight 2.5 lbs (1.2 kg)
Extron
PCM 240
Projector Drop
Ceiling Mount
weight 5.5 lbs (2.5 kg)
Extron
UPB 25
Universal Projector
Mounting Bracket
weight 3.7 lbs (1.7 kg)
Extron
PMP 6
6” Projector
Mount Pole
weight 1.0 lbs (0.5 kg)
Total weight
(without projector)*
16-18 lbs (7.3-8.2 kg)
* Projector weight must not
exceed 25 lbs (11.3 kg)
