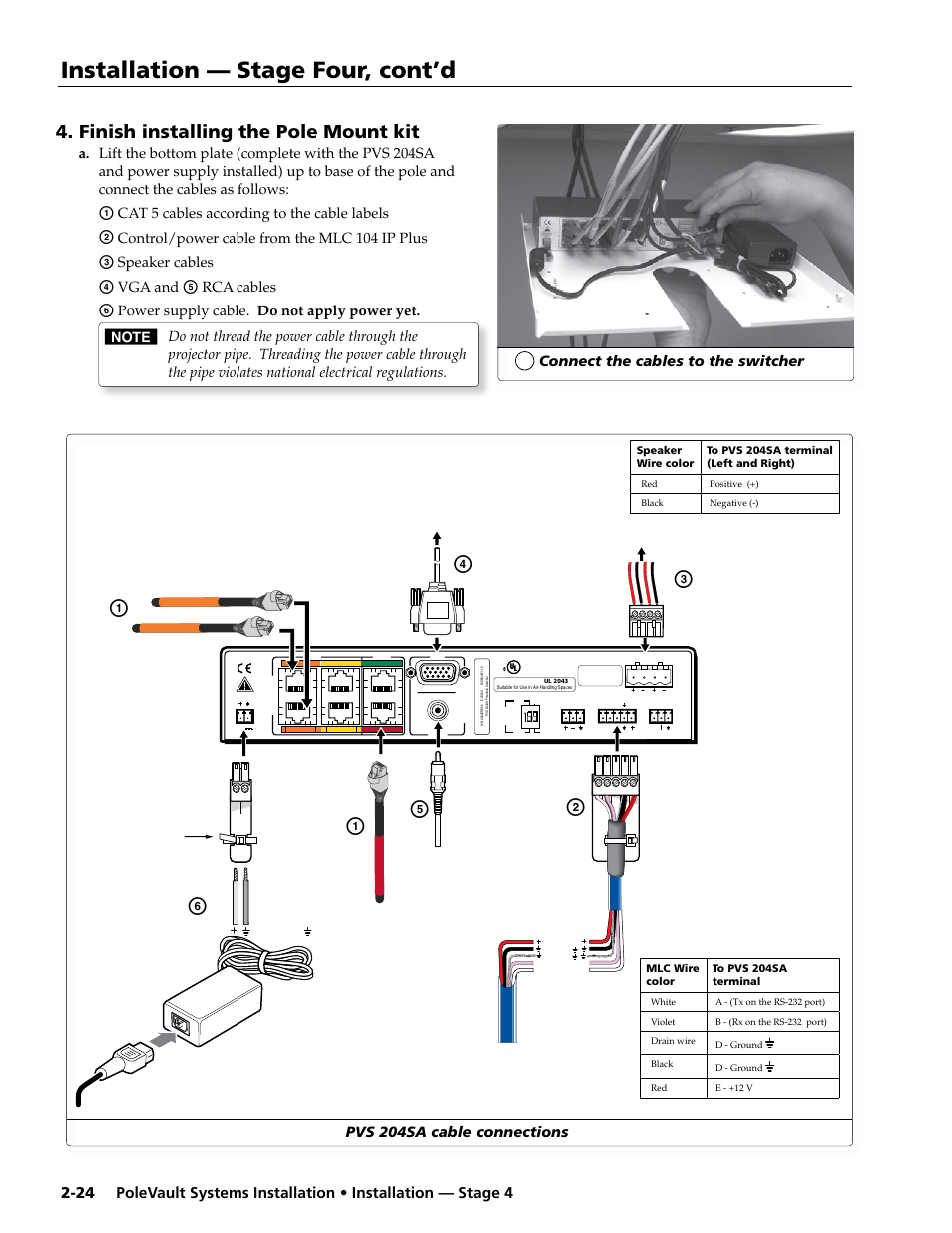

Finish installing the projector mounting kit, Installation — stage four, cont’d, Finish installing the pole mount kit – Extron Electronics PoleVault Systems PVS 200, 300, and 400 User Manual
Page 36: Cat 5 cables according to the cable labels, Control/power cable from the mlc 104 ip plus, Speaker cables, Vga and, Rca cables
Finish installing the projector mounting kit, Installation — stage four, cont’d, Finish installing the pole mount kit | Cat 5 cables according to the cable labels, Control/power cable from the mlc 104 ip plus, Speaker cables, Vga and, Rca cables | Extron Electronics PoleVault Systems PVS 200, 300, and 400 User Manual | Page 36 / 50 See also other documents in the category Extron Electronics Hardware:
