Installation — stage two, cont’d, Connect to the lan using a cat 5 cable, Terminal rs-232 cable color pin – Extron Electronics PoleVault Systems PVS 200, 300, and 400 User Manual

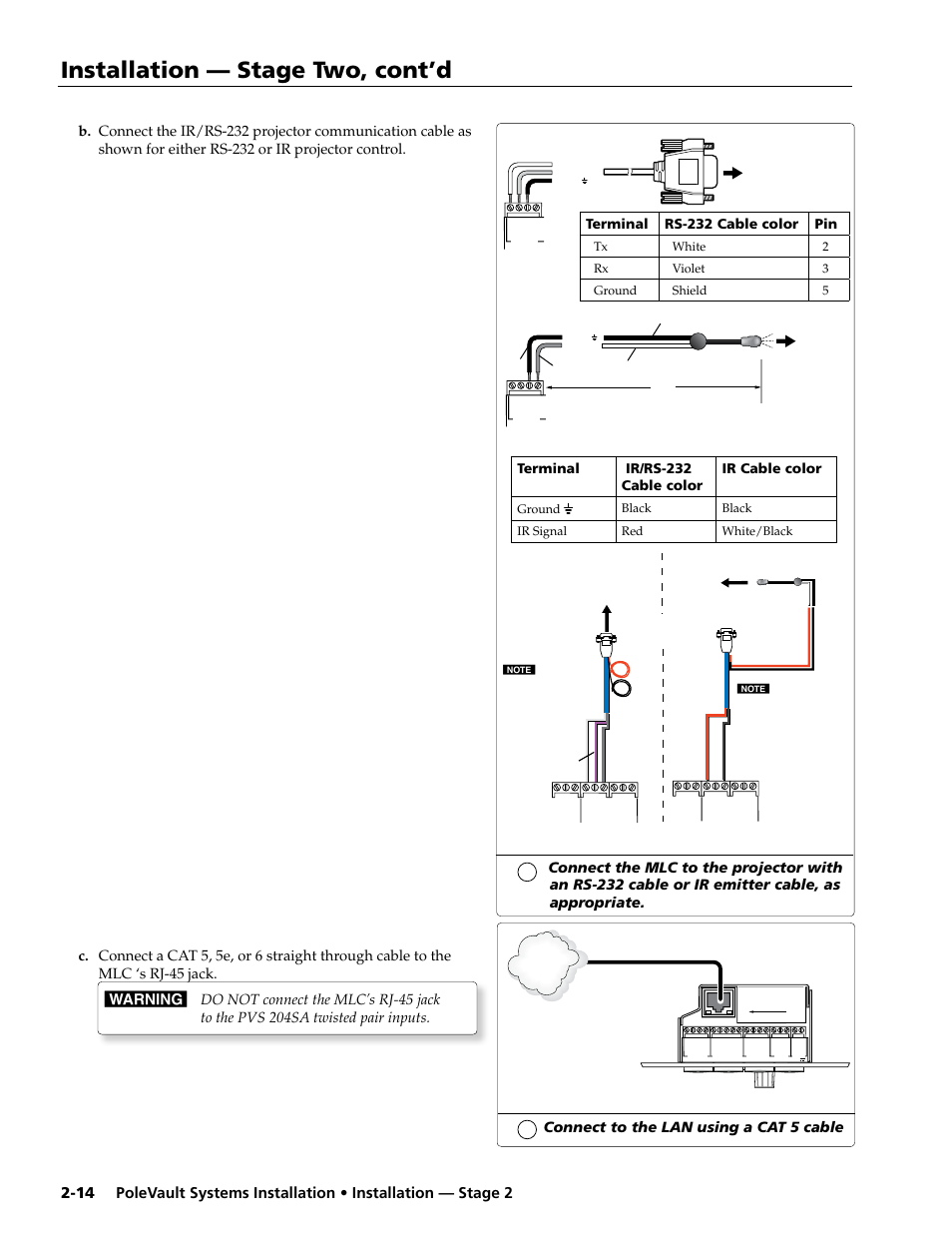

Page 26: Terminal ir/rs-232 cable color ir cable color, Tx white 2 rx violet 3 ground shield 5, Ground black black ir signal red white/black, Rs-232 connection, Ir connection
Installation — stage two, cont’d, Connect to the lan using a cat 5 cable, Terminal rs-232 cable color pin | Terminal ir/rs-232 cable color ir cable color, Tx white 2 rx violet 3 ground shield 5, Ground black black ir signal red white/black, Rs-232 connection, Ir connection | Extron Electronics PoleVault Systems PVS 200, 300, and 400 User Manual | Page 26 / 50 See also other documents in the category Extron Electronics Hardware:
