MD Floor Box AAP Kit • Installation
3
8.

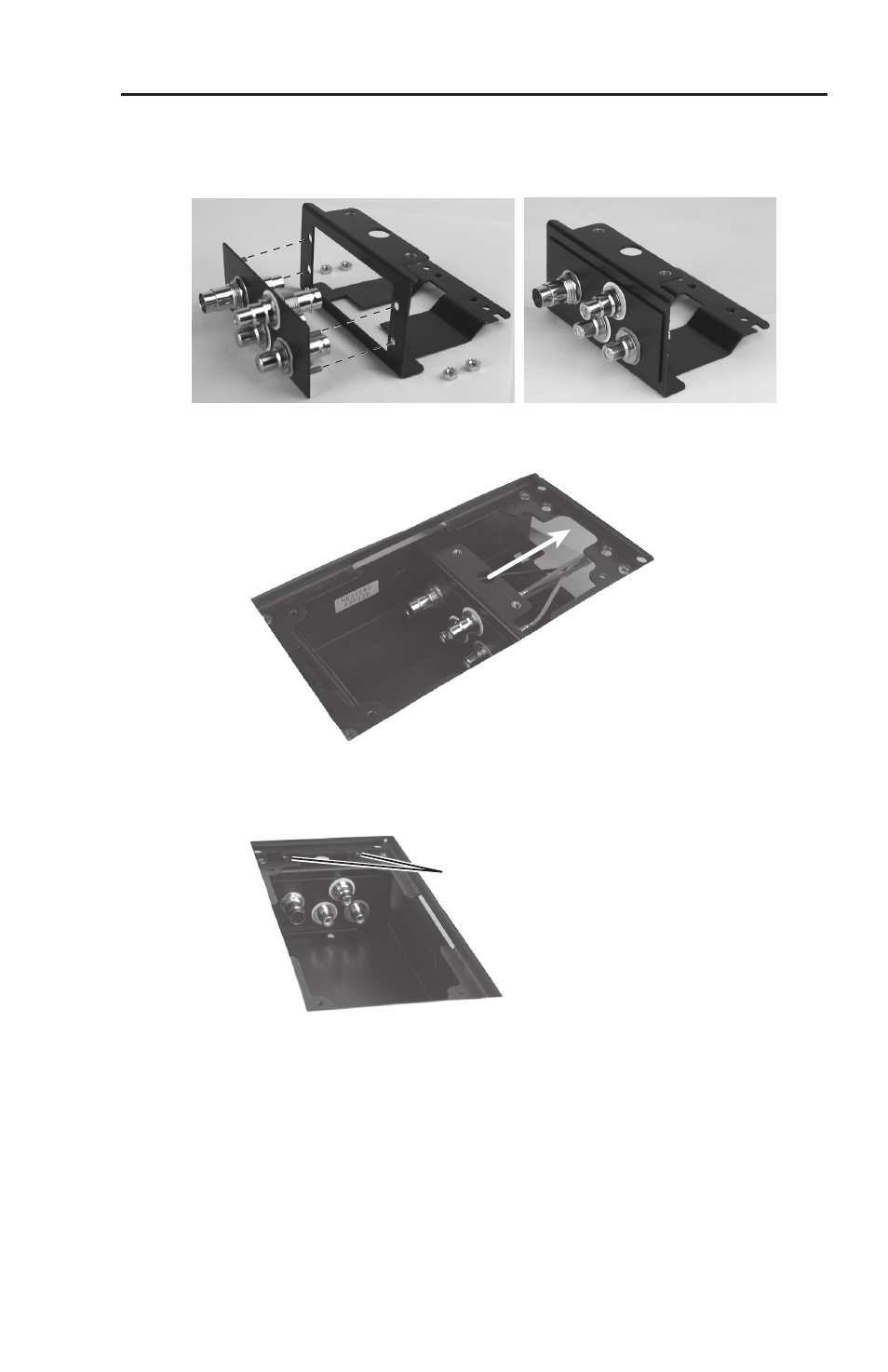

Attach and secure any single or double Extron AAP (for
example, the double AAP shown below) to the MD AAP
bracket with the 4‑40 mounting nuts provided.
9.
Connect cables, if applicable, to the back of the AAP to be
installed.
10. Slide Bracket
10.
Place the MD AAP bracket into the floor box (as shown
above), routing any cables through the back of the box and
slide it in the direction shown.
11. Attach with
M4 Screws
11.
Align the two screw holes in the top of the new AAP
bracket with the holes in the box. Attach the bracket with
the two M4 screws provided.
