Extron Electronics MBD 249 User Manual

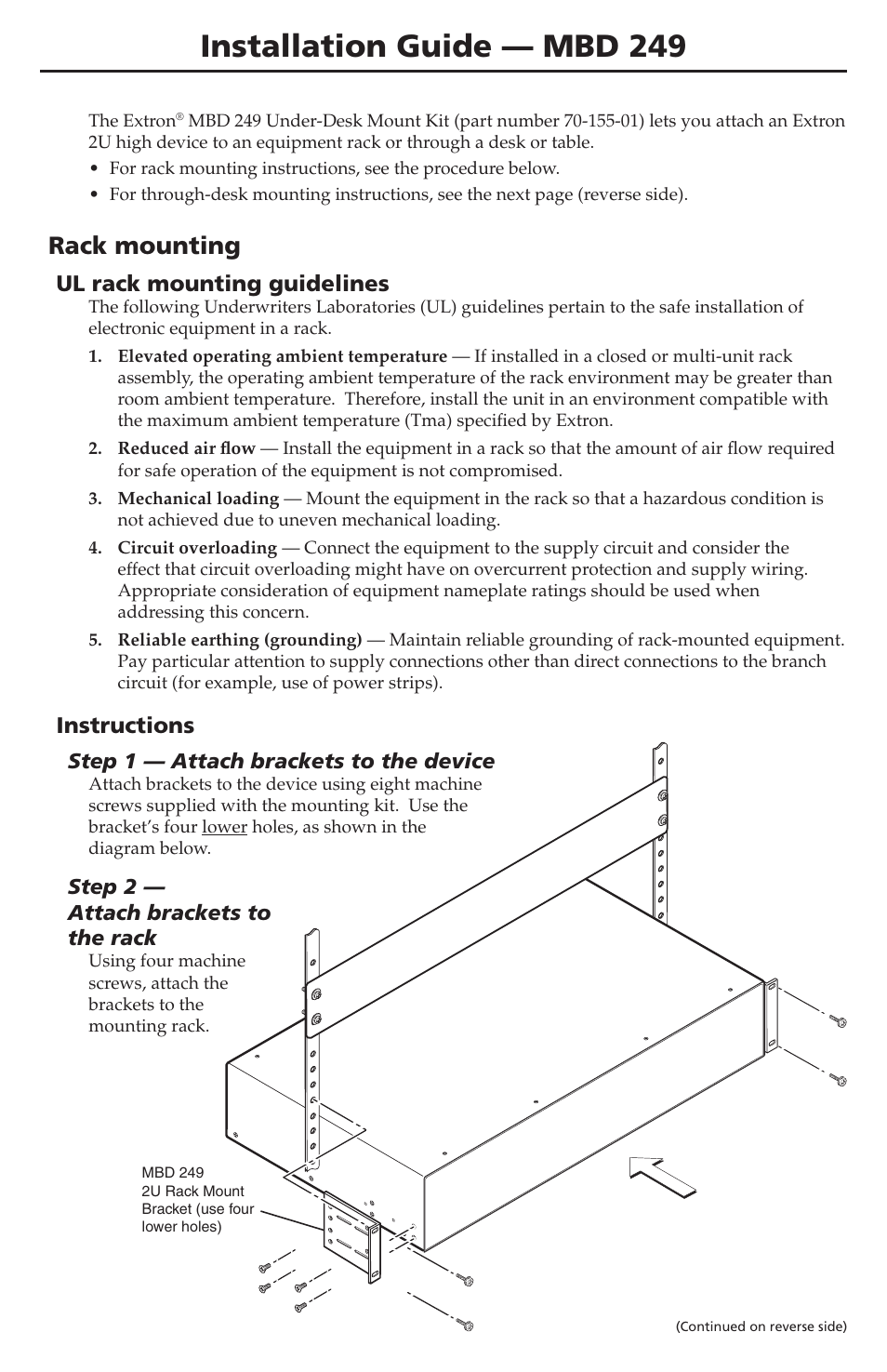

Installation guide — mbd 249, Rack mounting, Ul rack mounting guidelines
