Installation Guide — MBD 249

(Continued on reverse side)

The Extron

®

MBD 249 Under-Desk Mount Kit (part number 70-155-01) lets you attach an Extron

2U high device to an equipment rack or through a desk or table.
• For rack mounting instructions, see the procedure below.
• For through-desk mounting instructions, see the next page (reverse side).

Rack mounting

UL rack mounting guidelines

The following Underwriters Laboratories (UL) guidelines pertain to the safe installation of

electronic equipment in a rack.
1. Elevated operating ambient temperature

— If installed in a closed or multi-unit rack

assembly, the operating ambient temperature of the rack environment may be greater than

room ambient temperature. Therefore, install the unit in an environment compatible with

the maximum ambient temperature (Tma) specified by Extron.

2. Reduced air flow

— Install the equipment in a rack so that the amount of air flow required

for safe operation of the equipment is not compromised.

3. Mechanical loading

— Mount the equipment in the rack so that a hazardous condition is

not achieved due to uneven mechanical loading.

4. Circuit overloading

— Connect the equipment to the supply circuit and consider the

effect that circuit overloading might have on overcurrent protection and supply wiring.

Appropriate consideration of equipment nameplate ratings should be used when

addressing this concern.

5. Reliable earthing (grounding)

— Maintain reliable grounding of rack-mounted equipment.

Pay particular attention to supply connections other than direct connections to the branch

circuit (for example, use of power strips).

Instructions

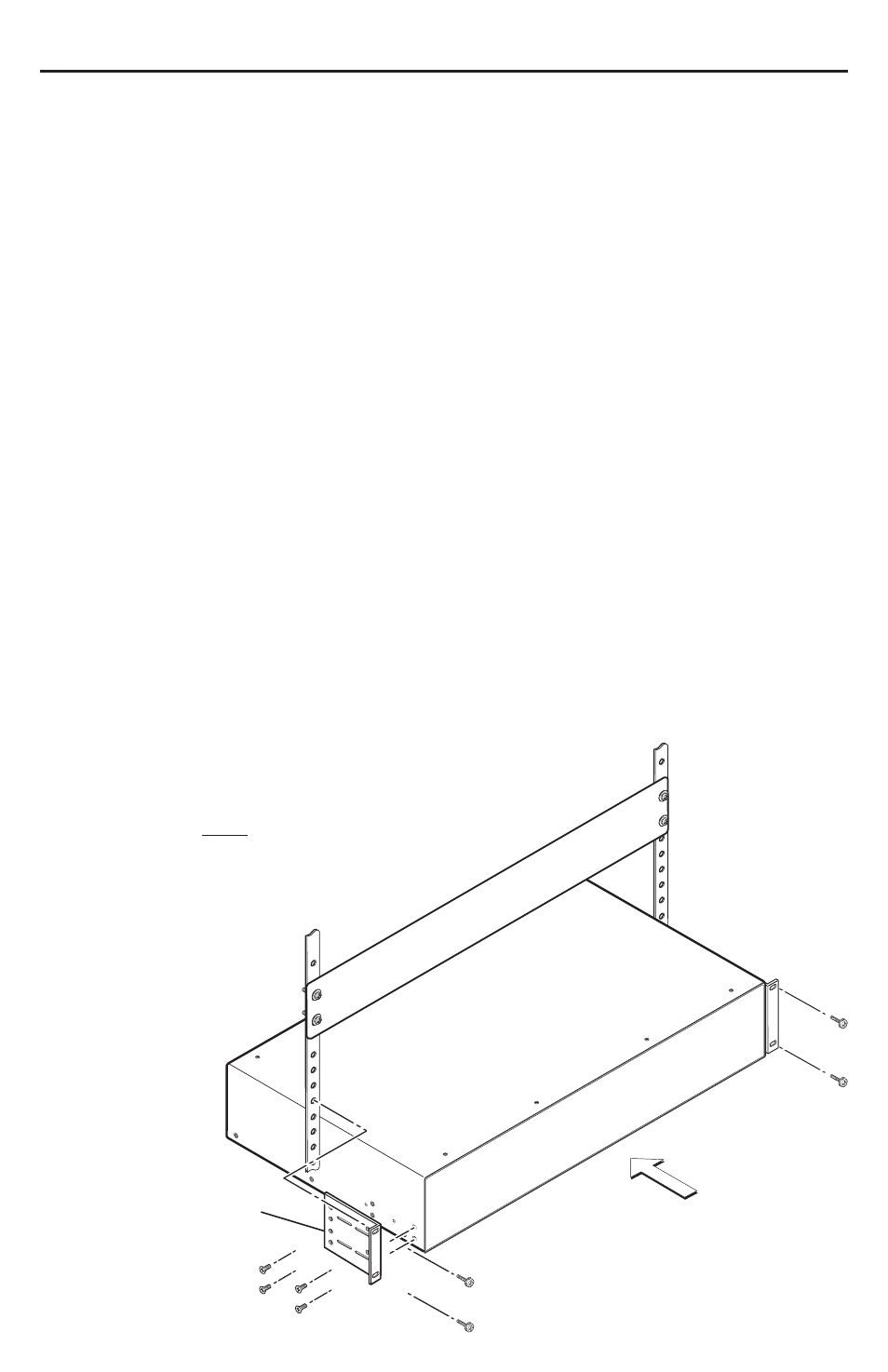

Step 1 — Attach brackets to the device

Attach brackets to the device using eight machine

screws supplied with the mounting kit. Use the

bracket’s four lower holes, as shown in the

diagram below.

Step 2 —
Attach brackets to
the rack

Using four machine

screws, attach the

brackets to the

mounting rack.

MBD 249
2U Rack Mount
Bracket (use four
lower holes)
