Page 4: Templates are not full size
Installation Guide, cont’d
Metal Decora Mounting Brackets • Installation Guide
4
6.08" (15.43 cm)
4.28"
(10.87 cm)
Recommended
cut-out area
for the installation
surface.
Top Panel

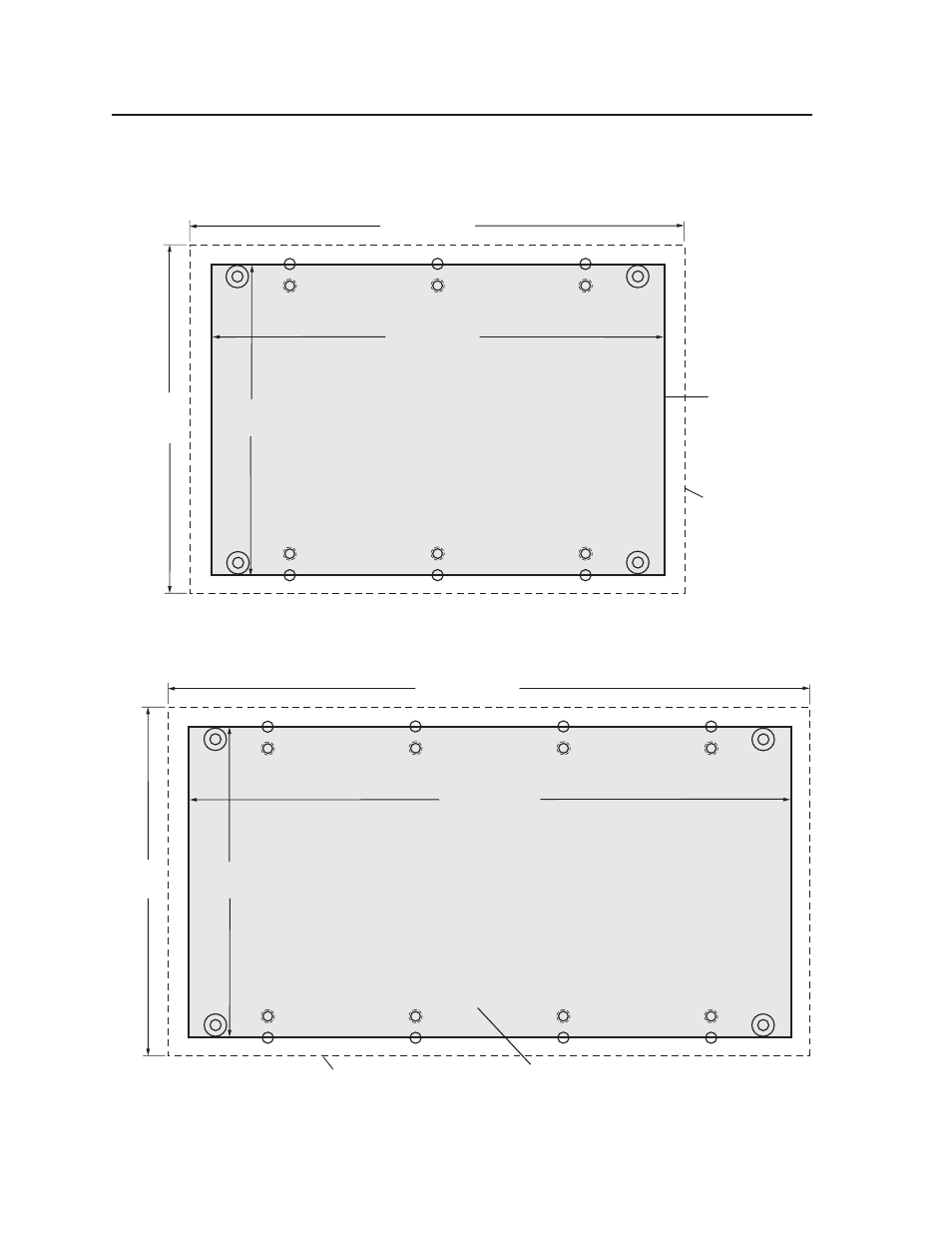

Template for the 3-gang
mounting bracket
SURFACE
CUT-OUT AREA
FOR WALL MOUNT
5.56" (14.13 cm)
3.80"
(9.65 cm)
7.89" (20.04 cm)
4.28"
(10.87 cm)
SURFACE
CUT-OUT AREA
FOR WALL MOUNT
7.37" (18.72 cm)
3.80"
(9.65 cm)
Template for the 4-gang
mounting bracket
Recommended
cut-out area
for the installation
surface.
Top Panel
TEMPLATES ARE NOT FULL SIZE.
