Installation Guide, cont’d
Metal Decora Mounting Brackets • Installation Guide
2
Detail A
¾" #6-32 Screw
Backing Clip
Wall Material
Mounting Bracket
Backing Clip
Wall Material
Mounting Bracket
Detail B
1¼" #6-32 Screw

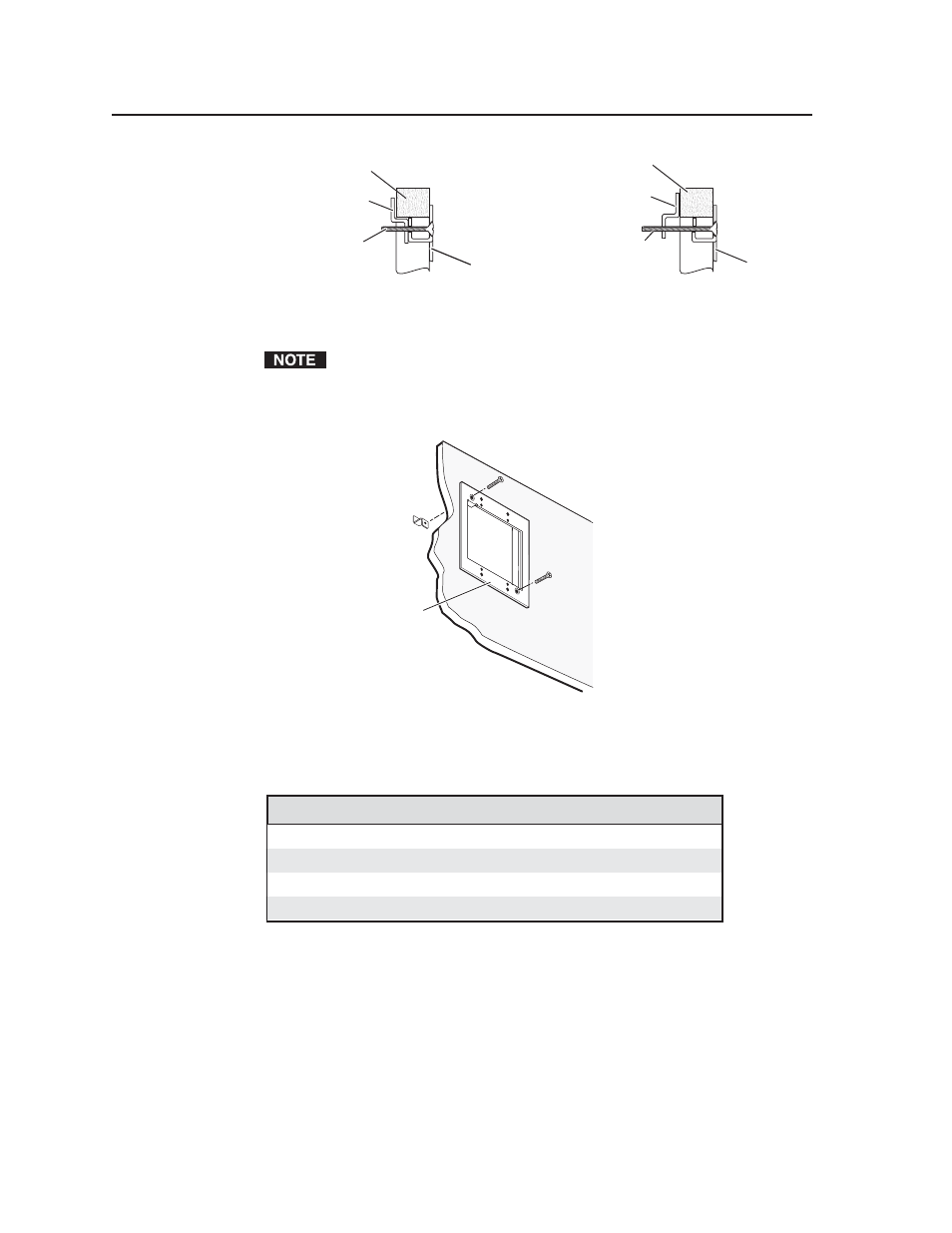

Mounting the metal Decora mounting brackets — details
The backing clip can be rotated to either orientation shown in the figure above.
4.
Use a cross-head (Phillips) screwdriver to fasten the mounting bracket in
place (do not over-tighten the screws). (Refer to the Detail A and Detail B
diagrams in the figure above.)
Mounting Bracket
Backing clip can be
in either orientation.
Fastening the mounting bracket with backing clips
Part Numbers
Bracket Type
Part Number
1-gang metal Decora Mounting Bracket kit
70-602-12
2-gang metal Decora Mounting Bracket kit
70-602-22
3-gang metal Decora Mounting Bracket kit
70-602-32
4-gang metal Decora Mounting Bracket kit
70-602-42
