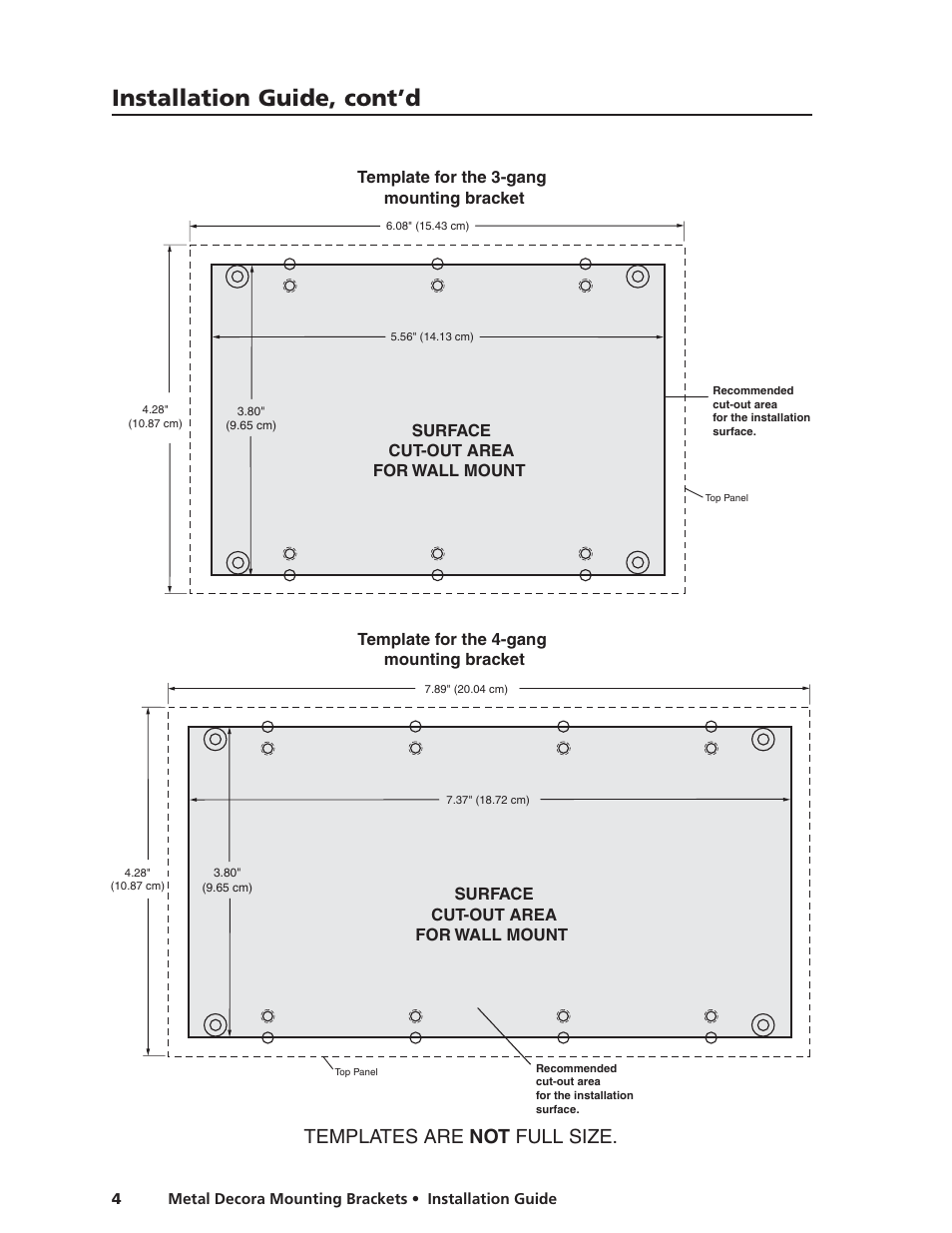

Template for the 3-gang mounting bracket, Template for the 4-gang mounting bracket, Installation guide, cont’d – Extron Electronics Metal Decora Mounting Brackets User Manual
Page 4: Templates are not full size
