MMX 32 VGA MTP • Installation and Operation

9

TP Cable Termination

NOTE: RJ-45 termination must comply with the TIA/EIA T 568A or TIA/EIA T 568B wiring

standards for all connections. If you are using Skew-Free™ A/V UTP cable, then
you should use the TIA/EIA T 568A standard only.

Figure 9 details the recommended termination of TP cables with RJ-45 connectors in
accordance with the TIA/EIA T 568A or TIA/EIA T 568B wiring standards. You can use either
standard with CAT 5 cable, but ensure that you use the same standard on both ends of the
cable.

Clip Down

1

1&2

3&6 4&5

7&8

2 3 4 5 6 7 8

1

Pins 2 3 4 5 6 7 8

RJ-45

connector

Twisted

Pairs

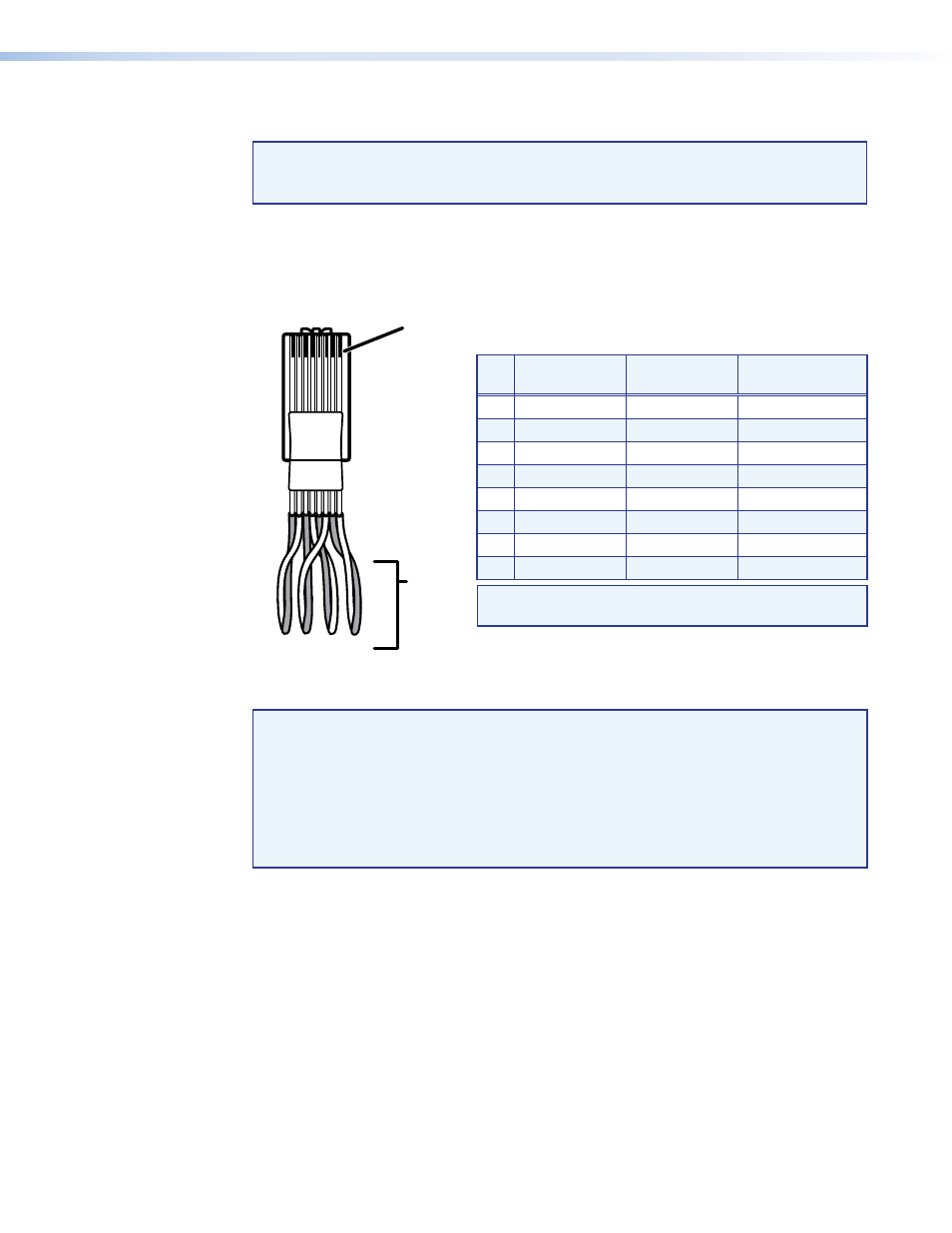

Figure 9.

TP Cable Termination

NOTES:

Skew-Free A/V cable is not recommended for Ethernet/LAN applications.

Skew-Free cable is specially designed for compatibility with Extron Twisted Pair
products, wired using the TIA/EIA 568 A standard.

The green, brown, and blue pairs of this cable have virtually identical lengths
and should be used to transmit the RGB signals.

The orange pair of this cable has a different length and should not be used to
transmit the RGB signals.

Pin

568 A

Wire color

568 B

Wire color

Signal

1

White-green

White-orange

Red+/V. sync+

2

Green

Orange

Red-/V. sync-

3

White-orange

White-green

Mono audio+

4

Blue

Blue

Green+

5

White-blue

White-blue

Green-

6

Orange

Green

Mono audio-

7

White-brown

White-brown

Blue+/H. sync+

8

Brown

Brown

Blue-/H. sync-

NOTE: If you use Skew-Free™ A/V cable, use the TIA/EIA T

568A standard only.
