4
IPL Pro Series • Setup Guide (Continued)
Cabling and Features
Attach cables using the following wiring diagrams as a guide. Full details are available in the IPL Pro Series User Guide.
ATTENTION: Installation and service must be performed by experienced personnel.
ATTENTION: L’installation et l’entretien doivent être effectués par du personnel expérimenté.

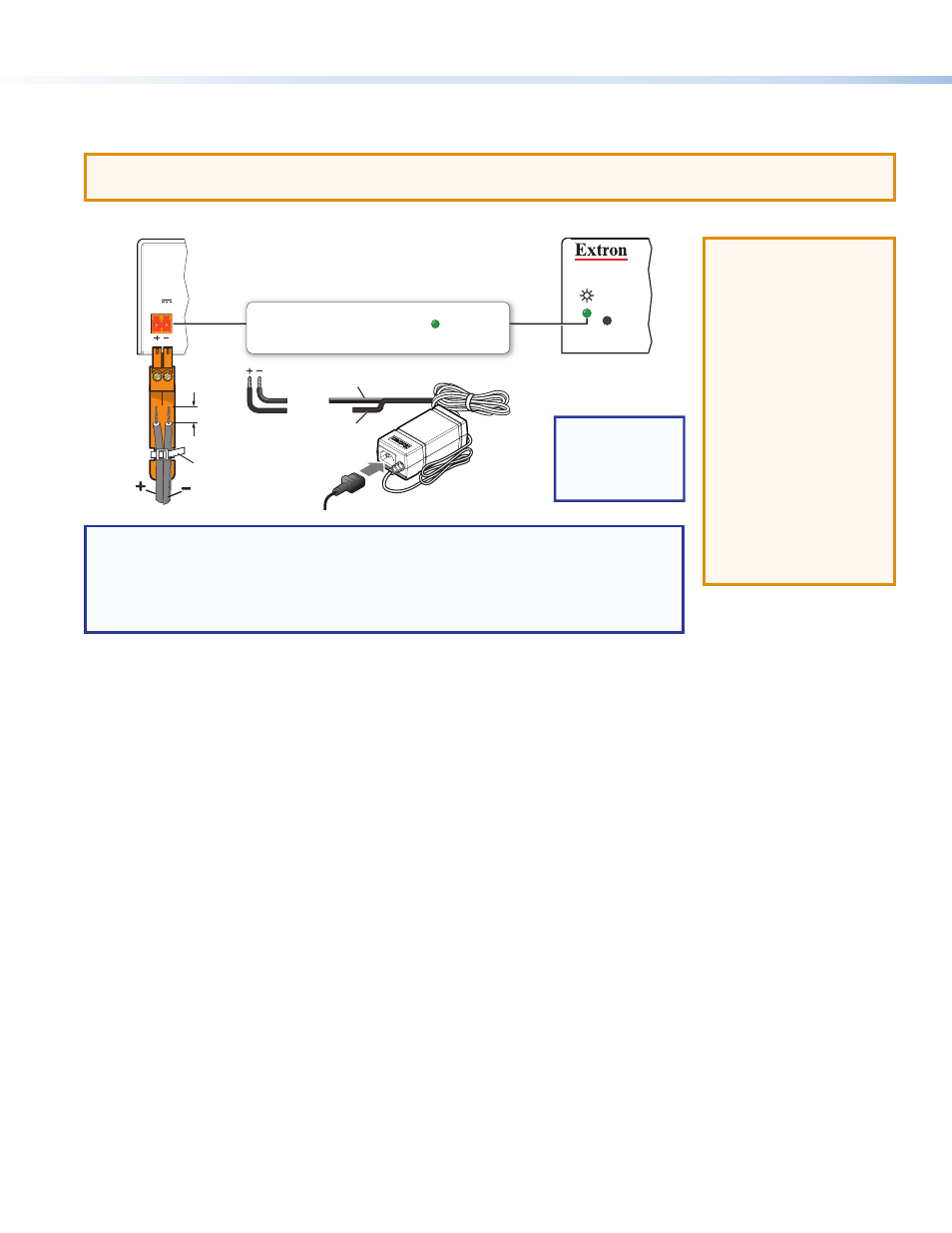

Power
POWER
12V
X.XA MAX R
Ground
all devices.
External
Power Supply
(12 VDC, 1 A max.)
– Return
+12 VDC input
Ridged
Ridged
Smooth
Smooth
1A MA X
100-240V 50-60Hz
Tie Wrap
3/16"
(5 mm)
Max.
Rear
Panel
Front Panel
NOTE: Check the
polarity of the
power supply
before connecting
it to the IPL.
Power Input, External Power Supply
• Front panel LED ( ) blinks during
boot-up and lights when the IPL is
powered and operational.
• Connect to
included 12 VDC
power supply.
NOTE: IPL Pro Series control processors accept power over Ethernet (PoE) through
the LAN port in addition to network communication (see Control - LAN (Ethernet) on
page 5 for cabling and details). Both an exte rnal power supply and PoE can be
connected to the control processor simultaneously. The IPL uses PoE when it is available
but can switch seamlessly to the external 12 VDC power supply if the PoE connection is
dropped.
ATTENTION:
Always use a power
supply supplied or
specified by Extron.
Use of an unauthorized
power supply voids all
regulatory compliance
certification and may
cause damage to the
supply and the unit.
ATTENTION:
Utilisez toujours une
source d’alimentation
fournie par Extron.
L’utilisation d’une source
d’alimentation non
autorisée annule toute
conformité réglementaire
et peut endommager la
source d’alimentation
ainsi que l’unité.
