IN2112R OPERATION MANUAL - PRELIMINARY 8/23/99 ©1999 - INLINE, INC.

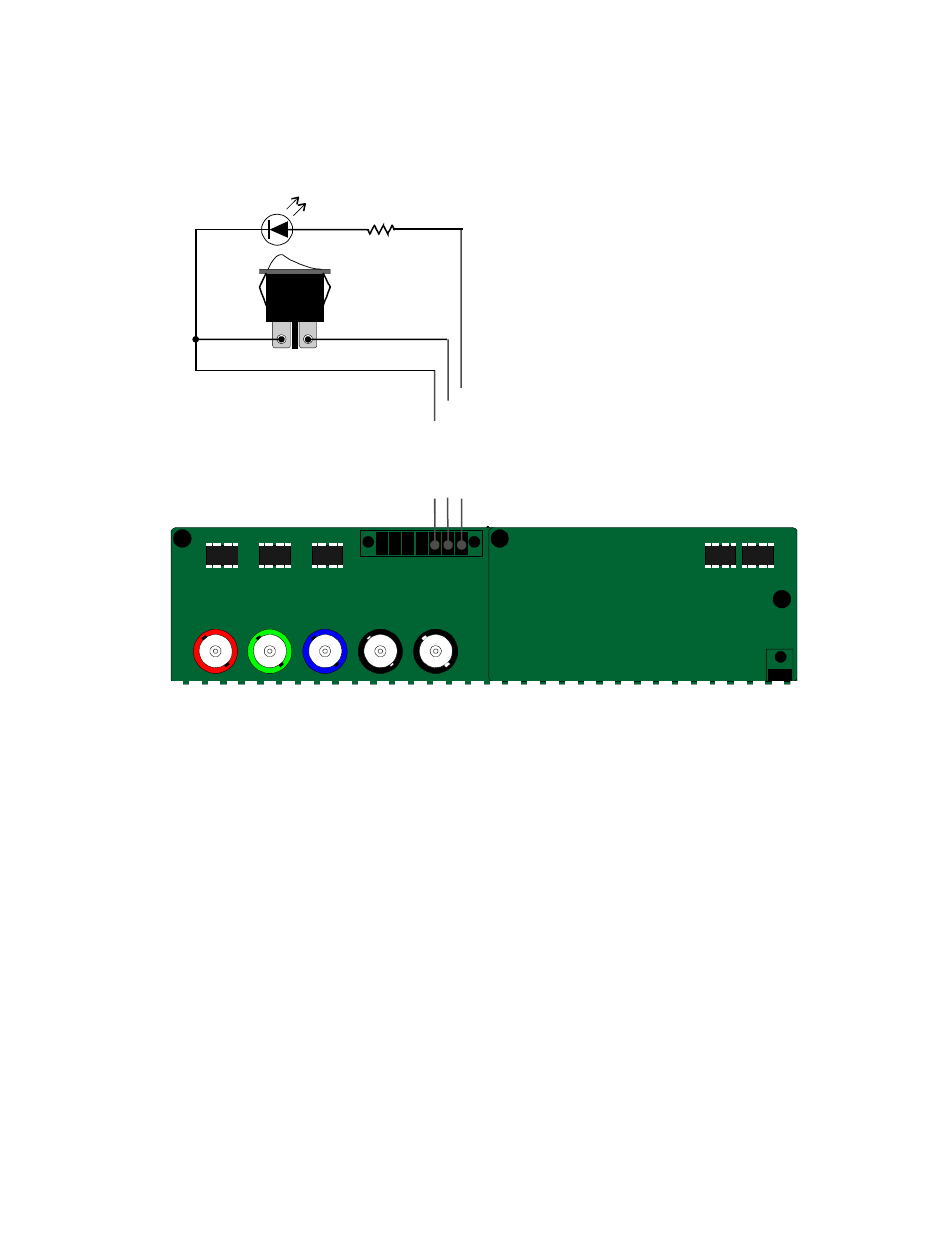

IN2112R INTERNAL CONTROL CONNECTION
WITH OPTIONAL IN9465 ROCKER SWITCH*
*Cover must be removed to connect remote
OPTIMAL SETTINGS FOR LCD / DMD / ILA / D-ILA / PLASMA DISPLAYS
The following output sync settings provide maximum sync signal preservation and are recommended for
best image quality with LCD / DMD / ILA / D-ILA / Plasma Display devices. Depending on the design of
the display device’s sync processing circuitry, you may be able to set the horizontal position control to the
enabled position, however, experimentation with your display device is the best way to determine whether
you can achieve a stable image with the horizontal position enabled. Most LCD displays include a fine
phase control, which can be adjusted to optimize picture quality.
Dipswitch Setting: #2 Set to ON / All other dipswitches set to OFF
Signal Format: Red / Green / Blue / Horizontal and Vertical Sync
Horizontal Position Control: Disabled
H & V Sync Polarity: Mirror Input Polarities
