Output Config
The Output Config submenu displays and allows changes to be made to the
resolution and refresh rate. Use the Adjust knobs to select a resolution and
refresh rate.
Resolution 24 Hz 25 Hz 30 Hz 50 Hz 59.94 Hz 60 Hz
720p X X X X X X
1080i X X X
1080p X X X
User Presets
The User Presets submenu displays and allows the current settings to be saved
as a preset, or to erase an existing saved preset. Use the Adjust knobs to select
between the presets.
Advanced Config
Within this submenu the following settings can be adjusted:
auto image (on or off), test pattern (selection), blue mode (on or off),
auto memories (on or off), film mode (on or off), and full screen (on or off).

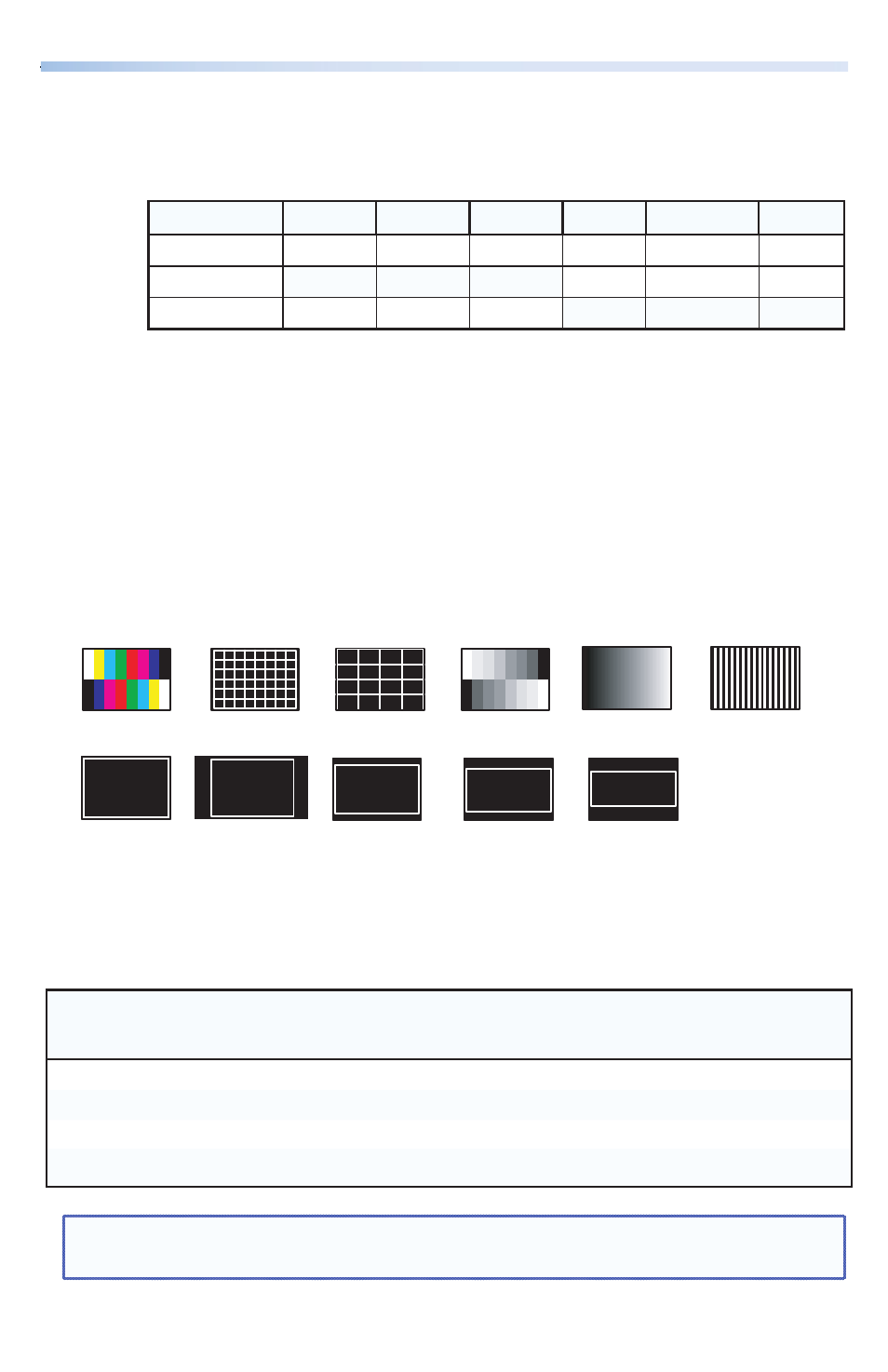

Test Pattern
The test pattern submenu offers the following test patterns to choose from:
Color Bars Split Grayscale 4x4 Crosshatch Alternating
Pixels
4:3/16:9
Crosshatch
1.78 Aspect 1.85 Aspect 2.35 Aspect 1.33 Aspect Crop
Ramp
3
NOTE: X! = input number, 0-8
X@ = output number, 1-8
SIS commands and definitions continue on page 4.
Board-specific SIS Commands
The ISM HDSDI board can be configured with specific Simple Instruction Set ™ (SIS)
commands. The table below and on page 4 lists some of the ISM HDSDI board
specific commands. Refer to the ISM 824 User Guide, at
www.extron.com for a list.
Command ASCII
Command
(host to ISM)
Response
(ISM to host)
Additional Description
Input selection
Video and audio X! *X@! OutX@•InX!•All] Tie video/audio input X! to X@.
Video X! *X@& OutX@•InX!•RGB] Select video input X! to X@.
Audio X! *X@$ OutX@•InX!•Aud] Select audio input X! to X@.
