Internal rj-45 cablerouting, Cabling and installing the aaps, Dressing the cables – Extron Electronics Hideaway Surface Access Products User Manual

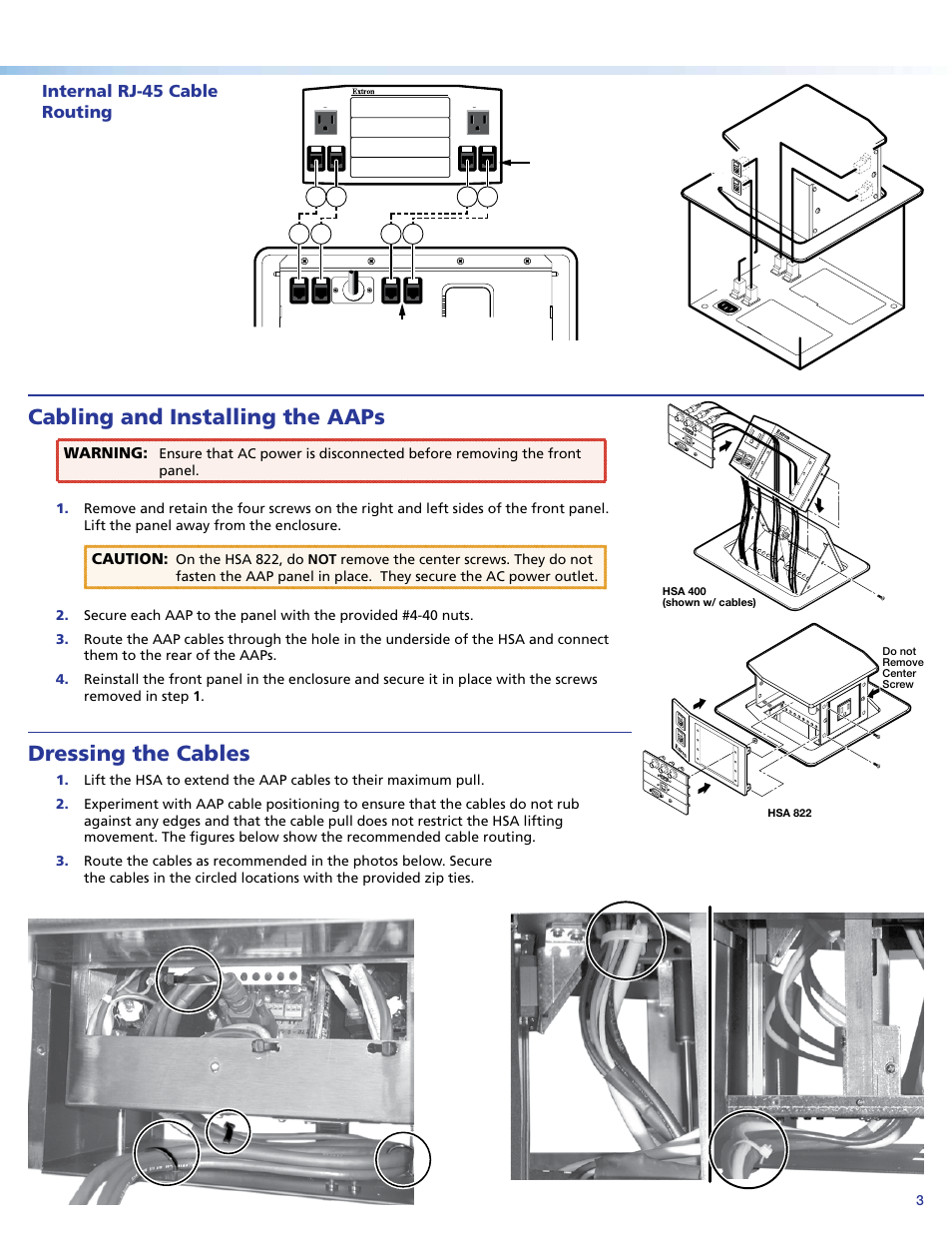

Page 3: Internal rj-45 cable routing
