Specifications
GLI 350 and ADA 2/GLI 350 HV
2 Outputs
RGB Video Source
Power
Extron
ADA 2/GLI 350 HV
Distribution
Amplifier
R/ R- Y
G/ Y
B/ B- Y
H/ HV
V

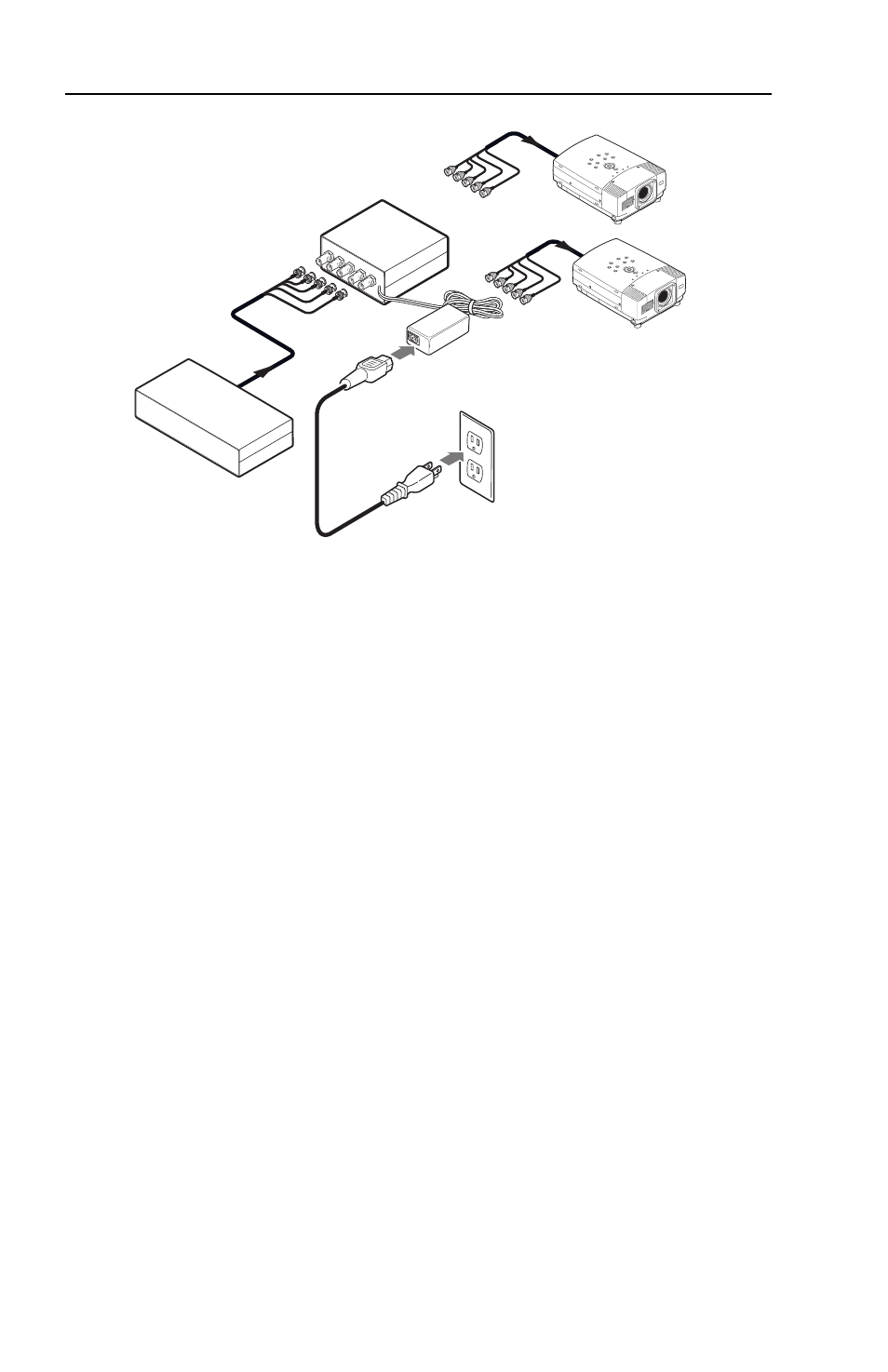

Example 2: ADA 2/GLI 350 HV installation
3
Specifications — GLI 350 Ground Loop Isolator
Video
Gain ................................................ Unity
Bandwidth ..................................... 350 MHz (-3 dB)
CMRR
......................................................... >47 dB @ 60 Hz, >30 dB @ 10 MHz
Video input
Number/signal type ................... 1 RGBHV, RGBS, RGsB, component video,
S-video, composite video
Connectors ................................... 5 female BNC
Nominal level ............................... 1 Vp-p for Y of component video and S-
video, and for composite video
0.7 Vp-p for RGB
0.3 Vp-p for R-Y and B-Y of component
video, and for C of S-video
Minimum/maximum levels ....... Y and composite video: 0.3 V to 1.5 Vp-p
Impedance .................................... 75 ohms
Horizontal frequency .................. 15 kHz to 135 kHz
Vertical frequency ....................... 30 Hz to 150 Hz
Return loss .................................... <-39 dB @ 5 MHz
DC offset (max. allowable) ......... 0.2 V
