The GLIs can be mounted on a standard universal 2U rack shelf.
Rack mounting
Mount the GLIs on a standard universal 2U rack shelf
(Extron part #60-032-01). The GLI 2000 5BNC mounts in one of
four locations at the front or the rear of the rack. The GLI 2000
2BNC mounts in one of eight locations at the front or rear of the
rack.
1 . Remove rubber feet if they were previously installed on the
bottom of the GLI.
2 . To mount the GLI 2000 5BNC on the shelf, use four 4-40 x 3/
16" screws in the corners to secure the GLI to the shelf.
To mount the GLI 2000 2BNC on the rack shelf, use two
4-40 x 3/16" screws in opposite (diagonal) corners to secure
the GLI to the shelf.
3. Install blank panel(s) or other unit(s) on the rack shelf.
4. Attach the rack shelf to the rack using the supplied bolts.
Use 2 mounting holes
(opposite corners)
Use 4 mounting holes
(each corner)
Extron
GLI 2000 5BNC
Ground Loop Inhibitor
Extron
GLI 2000 2BNC
Ground Loop Inhibitor
GL I 1 00 0 2 BN C
GR OU ND LO OP IS OL AT OR
VI DE O/ Y
IN
OU T
VI DE O/ C
IN
OU T
(2) 4-40 x 3/16"
screws
(4) 4-40
x 3/16"
screws
H
V
IN PU T
OU TP UT R
G
B
GLI 1000 5BNC

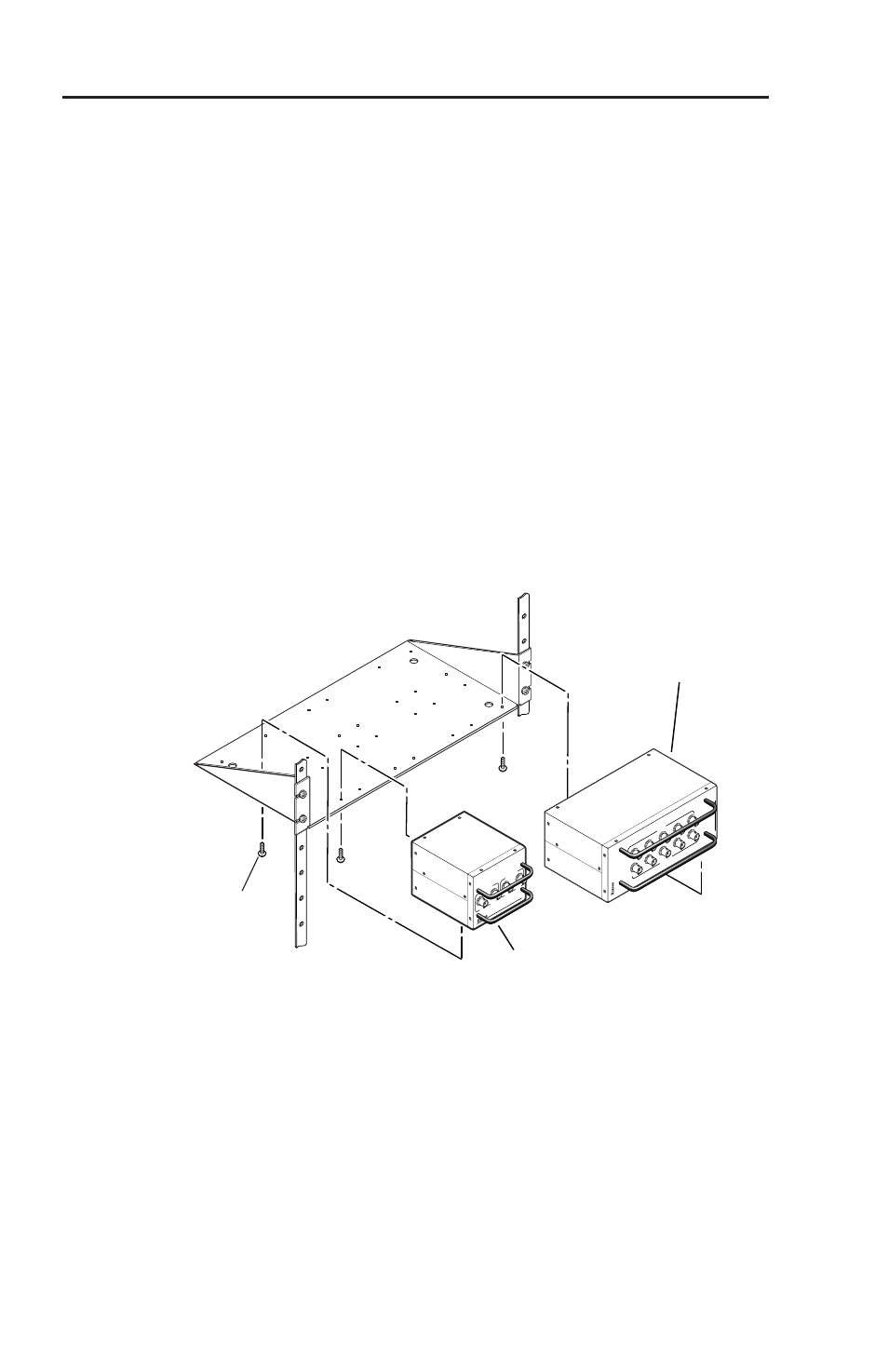

Mounting the GLI on a standard 2U rack shelf
Installation
GLI 2000 Series • Installation 2
