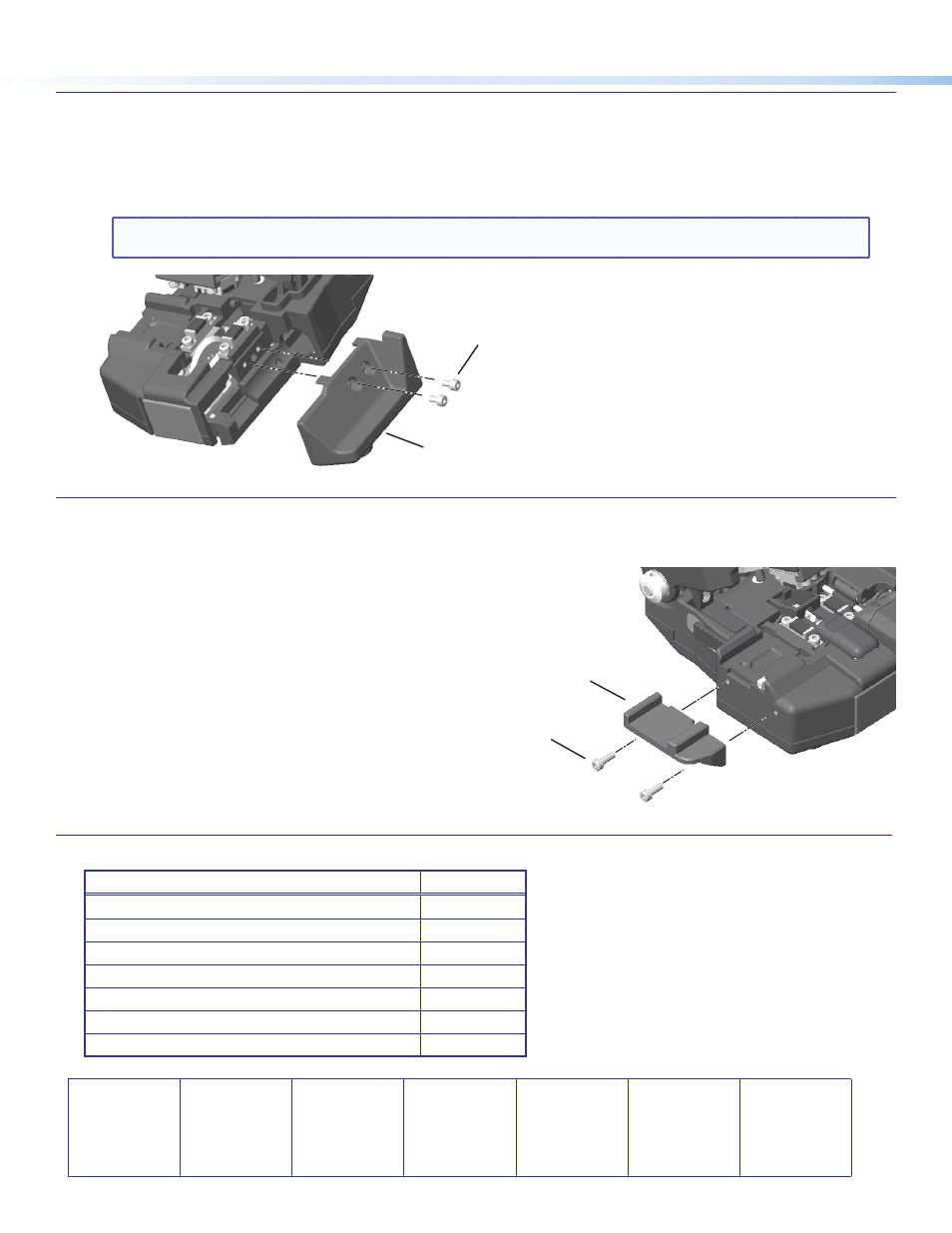

Side Cover Removal
The cleaver ships with a side cover which must be removed before attaching the scrap collector mechanism and scrap
container. To remove the side cover:
1. Remove the two M2x6 screws as shown below.
2. Remove the side cover, ( p ). Do not discard. Place it in the tool case for later use.
NOTE: Install the fiber scrap collector mechanism and container before using the cleaver. See “Fiber Scrap
Collector Mechanism Installation and Removal” on page 3.
Screw, M2x6 (2)
p
Holder Base Attachment
The cleaver is delivered with the cleave gauge attached. The holder base attachment has been installed. If there is a need
to remove it, reverse the following instructions.
To install the holder base:
1. Place the holder base attachment, ( q ), on the left
side of the cleaver so the screw holes align with the
holes of the cleaver, see below.
2. Fasten with the two M2x6 screws included with the
holder base.
Included Parts
Description Part Number
Fiber Cleaver
Fiber Plate
Fiber Scrap Collector and Mechanism
Hexagonal Wrench
100-012-09LF
Tool Case
Screws, M2x6, (x2)
40-362-04LF
Extron Fiber Optic Cleaver User Guide
Screw, M2x6 (2)
q
