Installation and
Operation
This section describes the installation and the operation of the DTP HDMI 301 Tx/Rx
Extender, including:
• Mounting the Transmitter or Receiver
• Connections
• Operation
Mounting the Transmitter or Receiver
CAUTION: Installation and service must be performed by authorized personnel only.
Mounting instructions and the applicable optional hardware can be found in the
“
Reference Information “ section. The 1-inch high, quarter rack width DTP HDMI 301
transmitter or receiver can be placed on a tabletop, mounted on a rack shelf, or mounted
under a desk or tabletop. The receiver can also be mounted on a projector bracket.
Connections
Transmitter Connections
.
DTP HDMI 301 Tx Rear Panel DTP HDMI 301 Tx Rear Panel
POWER
12V
Rx Tx
RS-232 IR
INPUTS
0.6 A MAX
Rx Tx
AUDIO
OUT
ANALOG AUDIO
SIG LINK
DTP OUT
3 5 1 2 4

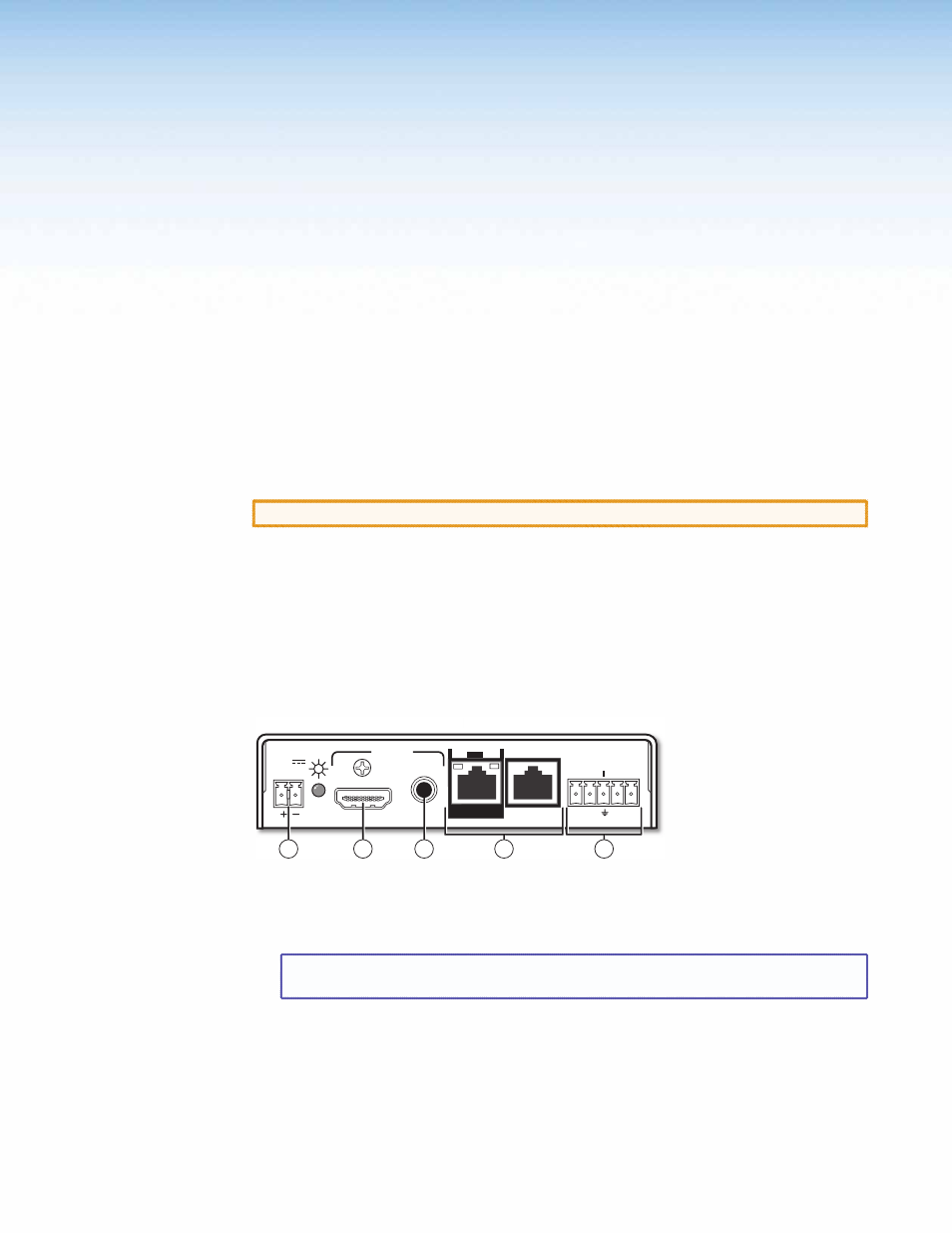

Figure 2. DTP HDMI 301 Tx Rear Panel Connectors
a
Input connector — Connect an HDMI cable between this port and the HDMI output
port of the digital video source.
NOTE: See “ HDMI connector “ for pin assignments and to use the LockIt
®
HDMI
Cable Lacing Bracket to secure the connector to the transmitter.
DTP HDMI 301 • Installation and Operation 3
