Introduction
• About this Guide
• About the DTP HDMI 301 Transmitter and Receiver
• Features
About this Guide
This guide describes the Extron DTP HDMI 301 High Definition Multimedia Interface (HDMI
™
)
Extender, which consists of a DTP HDMI 301 Tx transmitter and a DTP HDMI 301 Rx receiver.
This guide describes how to install, operate, and configure the transmitter and receiver.
About the DTP HDMI 301 Tx/Rx Transmitter and Receiver
The Extron DTP HDMI 301 Tx/Rx transmitter and receiver pair (see figure 1) extends the
usable distance of HDCP-compliant HDMI digital video (with embedded audio), optional
analog audio, and bidirectional RS-232 and infrared (IR) control signals over one or two
Category (CAT) 5e, CAT 6, and CAT 6a unshielded twisted pair (UTP) or shielded twisted pair
(STP) cables. The DTP HDMI 301 can also extend DVI video with applicable adapters. The
video, audio, and control signals can be transmitted up to 330 feet (100 m).
POWE
R
12V
Rx
Tx
RS
-23
2
IR
INP
UT
S
1.0 A MA
X
Rx
Tx
AU
DIO
OUT
ANALOG AUDI
O
SIG
LIN
K
DTP OUT
OU
TP
UT
S
L
R
AUDIO
POWER
12V
1.0 A MAX
IN
ANALOG AUDIO
SIG LINK
DTP IN
1
3
1
4
2
3
1
4
2
3
1
4
2
2
3
100
LINK
ACT
CO
M
IR
INP
UT
RE
LA
Y
TX
RX
R
IPL 250
®
ON
OFF
DIS
PLA
Y
MUTE
SCREEN
UP
SCREEN
DO
WN
VCR
DV
D
DOC
CA
M
LAP
TO
P
PC
TCP/IP
TouchLink
Control
System
Blu-ray Player
Flat Panel Display
Extron
DTP HDMI 301 Tx
Transmitter
Extron
DTP HDMI 301 Rx
Receiver
HDMI Cable
HDMI Cable
RS-232
RS-232
CAT 5-Type Cable

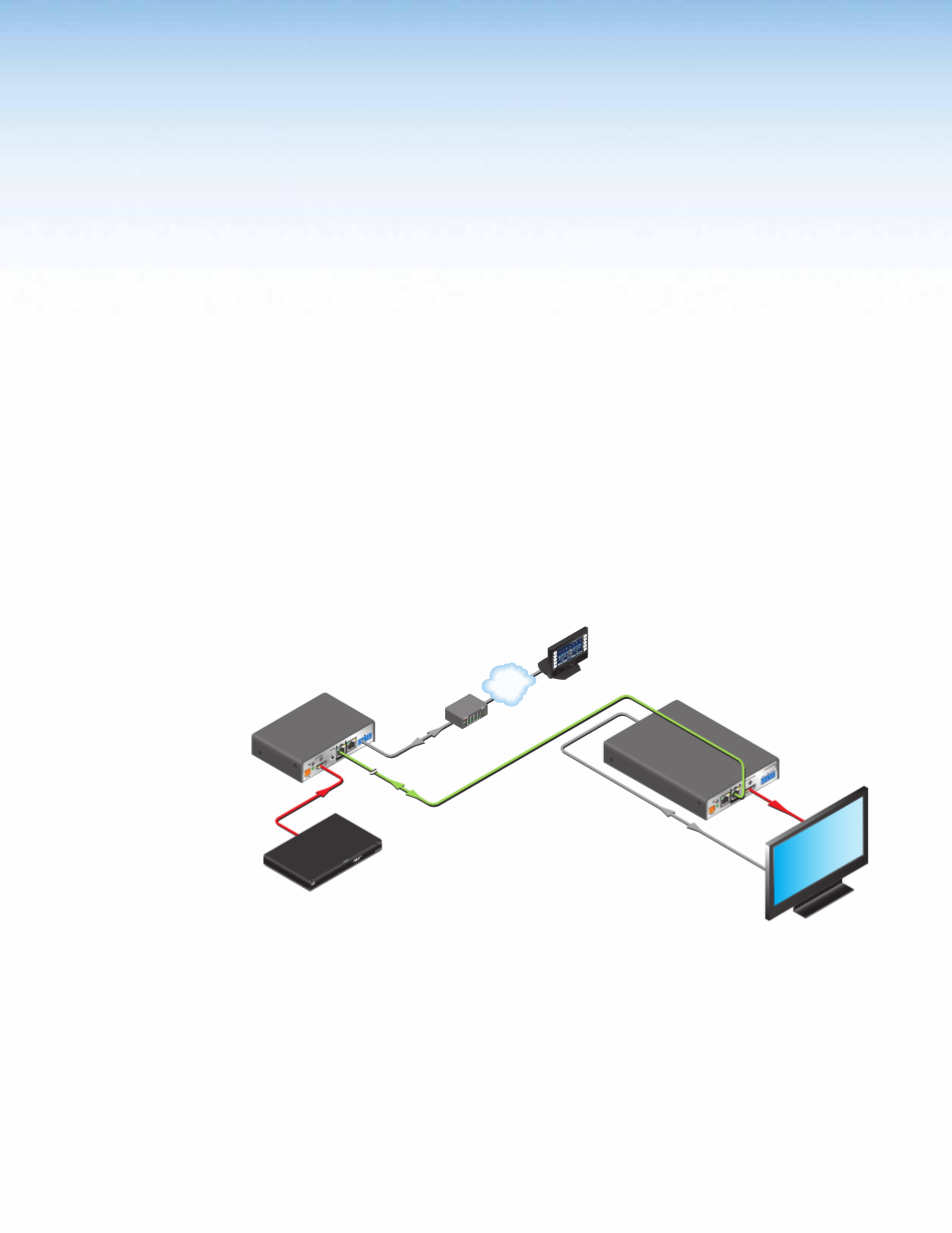

Figure 1.
Typical Transmitter and Receiver Application
The pair requires only one cable to transmit HDMI digital video, embedded audio, and the
RS-232 and IR link. The pair requires a second cable to extend analog audio.
The DTP HDMI 301 Tx/Rx units are housed in quarter rack width metal enclosures. They can
be set on a tabletop or mounted in a rack, under or through furniture, or to a projector pole.
The transmitter is shipped with a single external desktop 12 VDC power supply that
accepts 100 to 240 VAC, 50-60 Hz input. A single power supply connected to either the
transmitter or the receiver can power both units through the TP cable that carries HDMI video.
