Receiver Connections
.

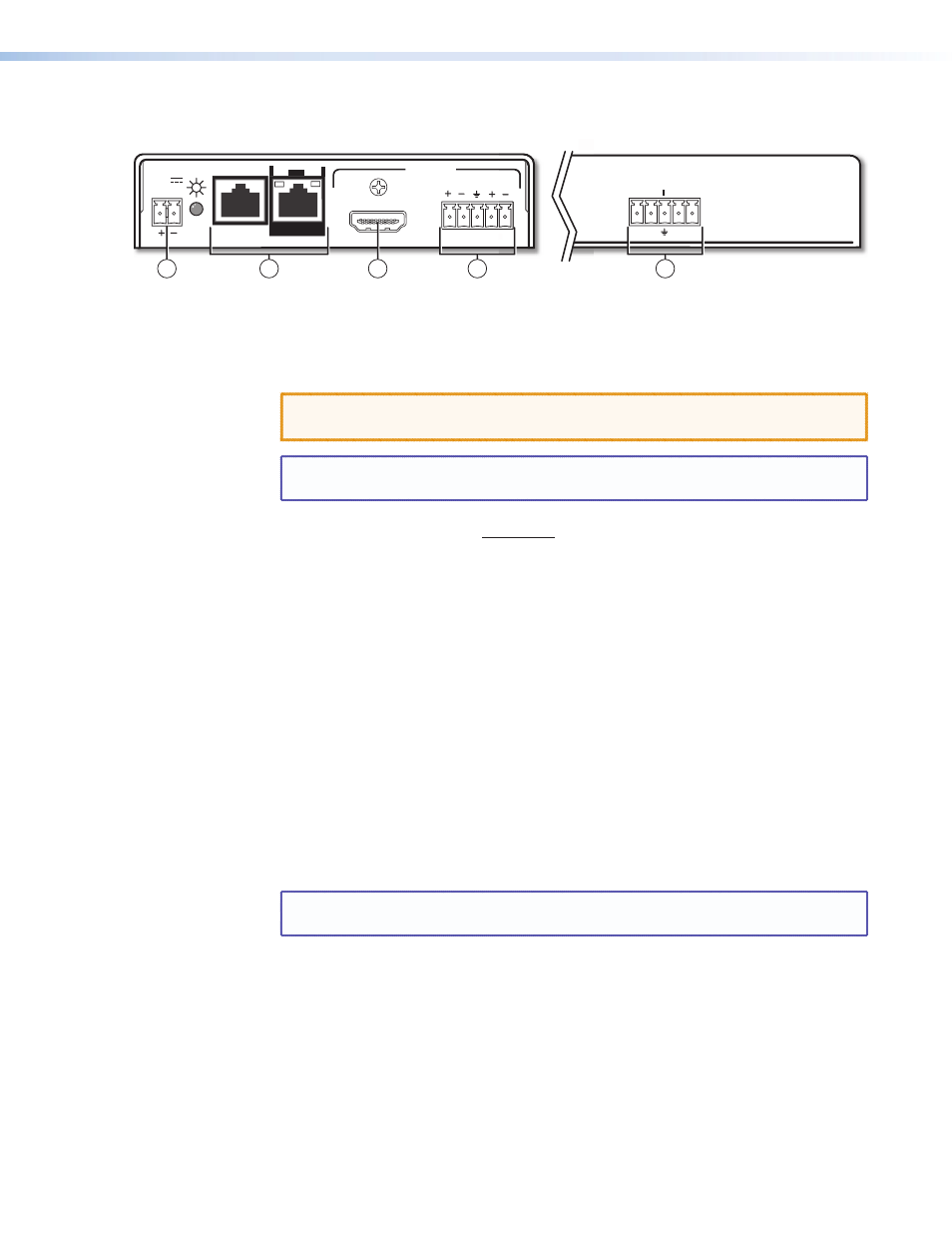

DTP HDMI 301 Rx Rear Panel
DTP HDMI 301 Rx Rear Panel
Front Panel
OUTPUTS
L
R
AUDIO
POWER
12V
0.6 A MAX
IN
ANALOG AUDIO
SIG LINK
DTP IN
ont Panel
Fro
R
Rx
Tx
RS-232
IR
Rx
Tx
DTP HDMI 301 Rx
6
9
8
10
7
Figure 3.
DTP HDMI 301 Rx Rear Panel Connectors
f
DTP and Analog Audio Input RJ-45 connectors — Connect one end of the one
or two separate TP cables from the transmitter output connectors to these RJ-45 female
connectors.
CAUTION: Do not connect this device to a computer data or telecommunications
network.
NOTE: See “
“ to properly wire the RJ-45 connectors and for
detailed NOTES.
ä
DTP Input connector (Required) — Ensure the free end of this cable is
connected to the transmitter DTP Out connector (
). This cable carries:
•
TMDS (digital) video
•
Embedded audio
•
Bidirectional RS-232 and IR commands and data
•
Remote power
Signal LED — This LED lights when the unit is receiving a TMDS clock signal on
the DVI input (transmitter) or any valid signal on the DTP In connector (receiver).
Link LED — This LED lights when a valid link is established between the units on
the DTP input and output cable.
ã
Analog Audio Input connector (Optional) — If desired, ensure the free end
of this cable is connected to the transmitter Analog Audio Out connector (
This cable carries analog audio only and is not needed for applications that do not
require this audio signal.
g
Output connector — Connect a display with an HDMI input to display the
transmitted direct digital image.
NOTE: See “
“ for pin assignments and to use the LockIt HDMI
Cable Lacing Bracket to secure the connector to the receiver.
DTP HDMI 301 • Installation and Operation
5
