12.

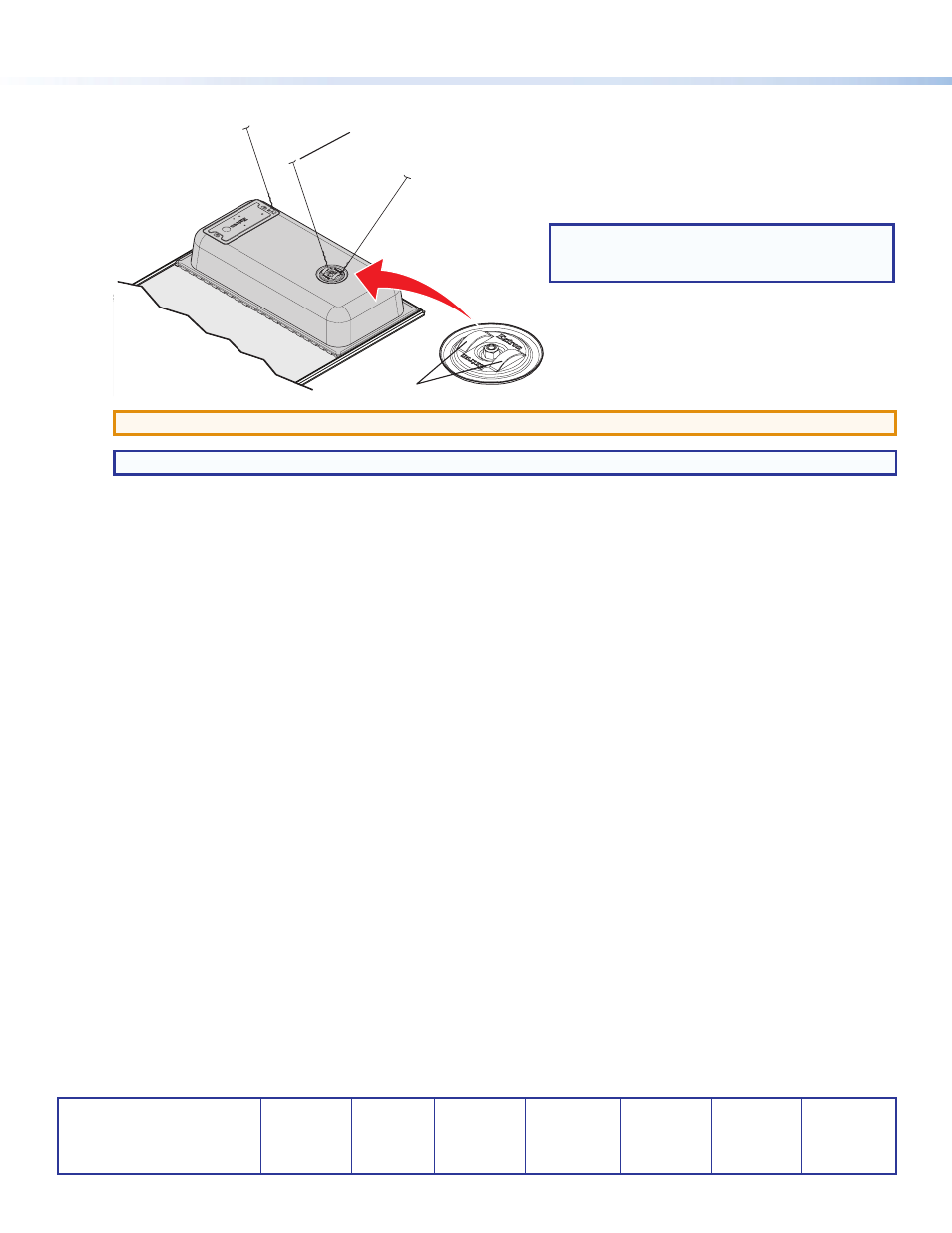

Attach safety lines and support cables — If required or desired, attach all support lines as shown below.
Secondary Support
Cables (3)
Attach cables
here and secure.
Anchor ends to suitable
solid secure points within the
permanent building structure.
ATTENTION:
Do not allow any slack in these support cables.
NOTE:
Observe all applicable building codes and local ordinances when installing the speaker.
13.
See steps 5 through 11 and 13 through 15 in the CS 26T Setup Guide to complete installation of the CS 26T in the
CS 120P.
Installing the CS 120P in a Hard Ceiling
z
It is the responsibility of the installer to identify a suitable mounting location and provide the mounting hardware.
z
The CS 120P must be mounted as close as possible to the upper surface of the ceiling material.
z
The lip of the CS 120P should protrude into the hole cut for the speaker.
z
Do not leave a gap between the CS 120P and the ceiling material.
Division of Labor Installation
z
The ceiling grid must be in place before the enclosure is placed.
z
If the tile will be installed later:
z
Standard ceiling grid: The CS 120P can rest on the grid.
z
Micro grid: The secondary attachment points should be used as the hanger suspension points (see step 12, above).
z
Mounting the CS 120P in a Suspended Ceiling
on page 1 for instructions on installing the CS 120P.
NOTE:
When placing the CS 120P in a micro tile
grid without tiles, use the secondary attachment
points as hanger suspension points.
