d.
Trace a circle on the ceiling tile as follows:
For installations in ceilings that are NOT fiberglass or when installing the speakers in an open back
configuration: Trace a circle around the cutout template.
NOTE: The fiberglass tile adapters are not needed and can be discarded.
For installations in a 1-inch (0.25 cm) thick fiberglass ceiling with the CS 120P:
NOTE: A set of fiberglass tile adapters is provided with both the CS 26T and the CS 120P. Only one set is needed
to install the CS 26T with the CS 120P kit in a 1-inch (0.25 cm) thick fiberglass tile. The adapter works only with
1-inch (0.25 cm) thick fiberglass tile.
1.
Place the fiberglass tile adapter around the outer diameter of the template that was positioned in step 5c.
2.
Trace a circle around the outer diameter of the adapter.
e.
Cut out the circle traced in the ceiling tile.
f.
Replace the tile in the ceiling.
6.

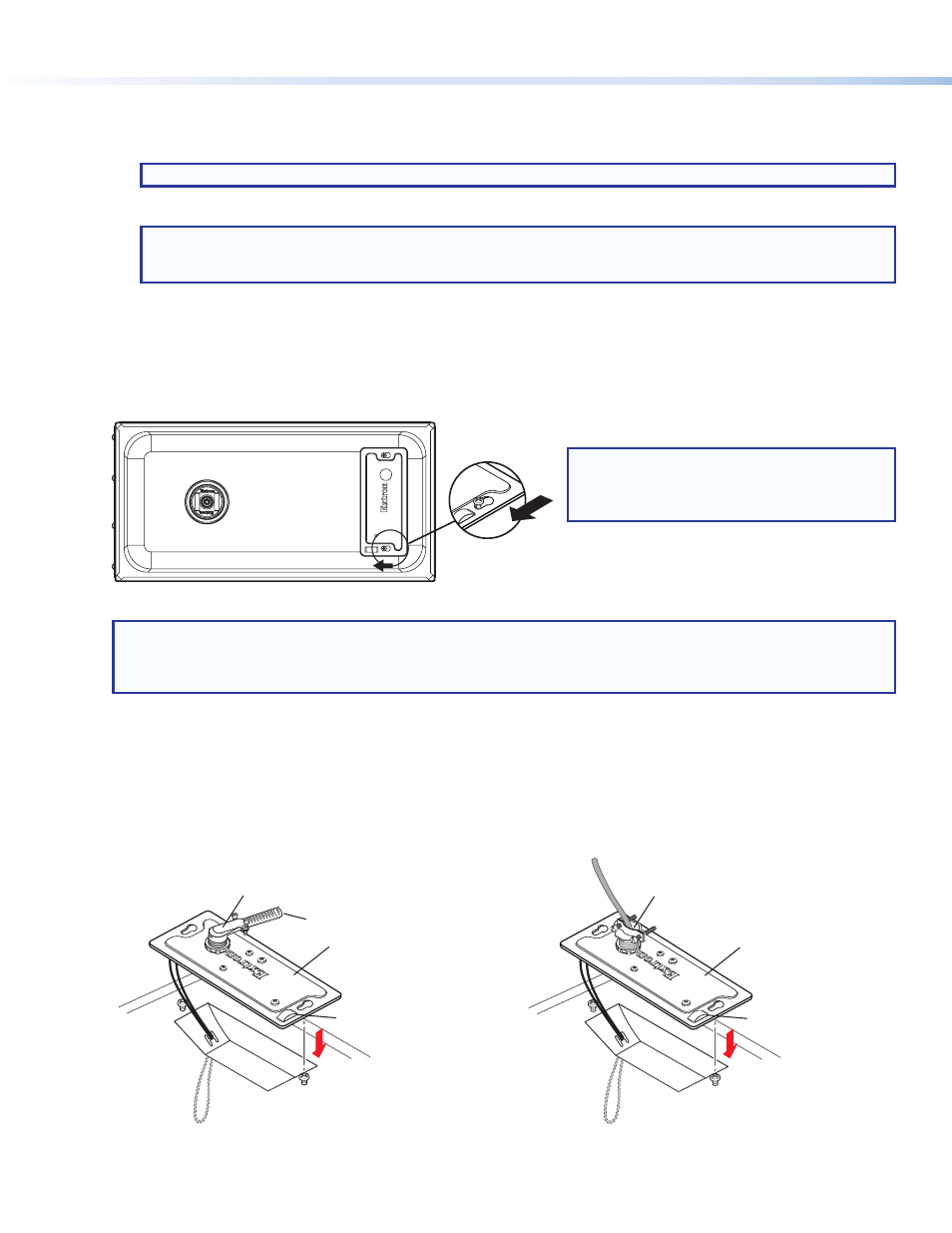

Remove the cover plate — Loosen (do not remove) the two screws on the cover plate and remove it, as shown below.
Cover Plate
7.
Route the cables through the cover plate — Use one of the methods described below as appropriate.
NOTES:
•
The CS 120P is fully UL 2043 compliant only when it is used with a metal conduit or with plenum rated cables.
•
Installation of conduits and conduit adapters should conform to all applicable building codes and local ordinances.
Using a flexible conduit:
a.
Route the wires through the conduit.
b.
Insert the conduit into the cover plate opening
using an appropriate conduit adapter, and secure
the conduit to the plate as shown below.
c.
Pull the wires out of the conduit and through the
cover plate
Using speaker wires without a conduit:
a.
Secure the cable clamp adapter (included) to the
cover plate.
b.
Insert the wires through the clamp and cover plate as
shown below.
c.
Tighten the clamp screws.
Flexible Conduit Adapter
Flexible Conduit
Cover Plate
Seismic Cable Pass
Through Loop
Rear of Speaker
Cable Clamp Adapter
Cover Plate
Seismic Cable Pass
Through Loop
Rear of Speaker
NOTE: The CS 26T offers optional two-foot
V-rails and C-rings for installations without
the CS 120P (see the CS 26T Setup Guide for
details).
