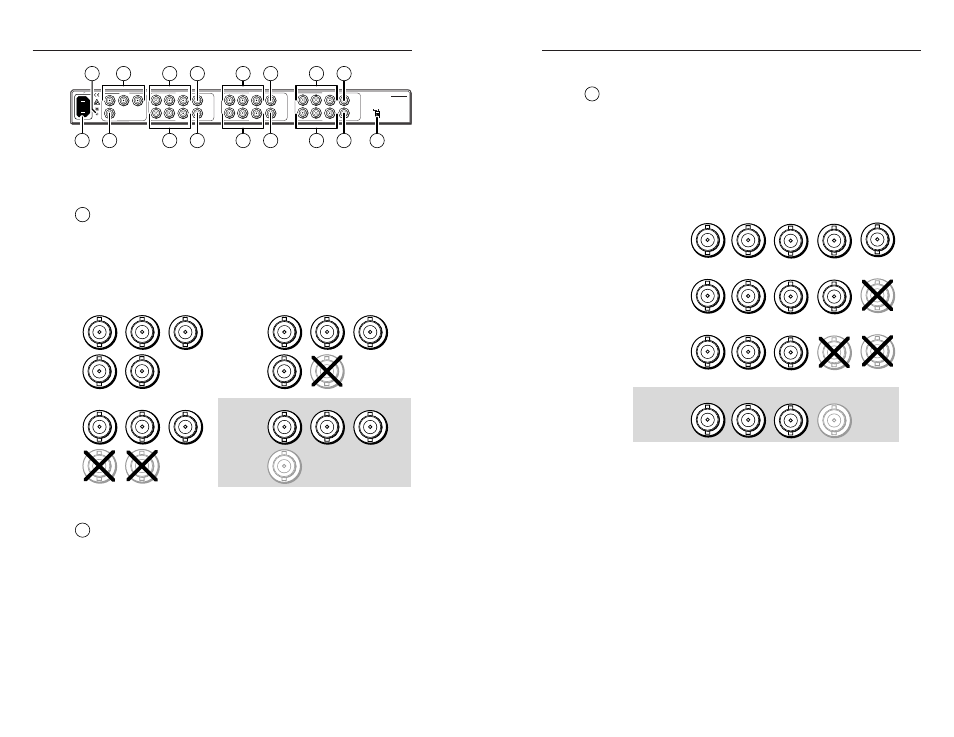

Figure 2-7 — DA6 YUV A rear panel
Input connections
1
RGB and component video inputs
— Connect an RGB or
component video source to these BNC connectors. Connect the
cables as shown in figure 2-8.
You can connect RGsB or RsGsBs video to a DA6 YUV A. You
can also
connect RGBS video to a DA6 YUV A by connecting the
composite sync (S) input to the digital audio input BNC.
RGBHV
video
RGBS
video
RGsB,
RsGsBs
(or component
video)
Component
video (or
RGBS, RGsB,
RsGsBs
DA6 YUV A
R
H
H/V
G
V
B
R
H
H/V
G
V
B
R
H
H/V
G
V
B
Y
DA2 / 4 / 6 RGBHV
DA2 / 4 / 6 RGBHV
DA2 / 4 / 6 RGBHV
R-Y
B-Y
DIGITAL
AUDIO
Figure 2-8 — Video input connections
2
Digital audio input connection (DA6 YUV A only)
— Connect
a digital audio source to this female BNC connector.
If you are using the DA to buffer RGBS video, connect the
composite sync (S) input to this connector.
Output connections
3
RGB and component video outputs
— Connect RGB or
component video displays or other devices to these BNC
connectors for each video output. Connect the cables as shown
in figure 2-9.
You can use a DA6 YUV A to buffer RGsB or RsGsBs video. You
can also output RGBS video by connecting the composite sync
(S) plane on the digital audio BNC to the composite sync (S)
input of the video displays or other devices.
RGBHV
video
RGBS
video
RGsB,
RsGsBs
(or component
video)
Component
video (or
RGBS, RGsB,
RsGsBs
DA6 YUV A
DA2 RGBHV, DA4 RGBHV, DA6 RGBHV
H
H/V
V
R
G
B
H
H/V
V
R
G
B
H
H/V
V
R
G
B
DIGITAL
AUDIO
Y
R-Y
B-Y
Figure 2-9 — Video output connections
