CD 800 Controls and Installation
CD 800 Controls and Installation
Controls and Installation, cont’d
3.

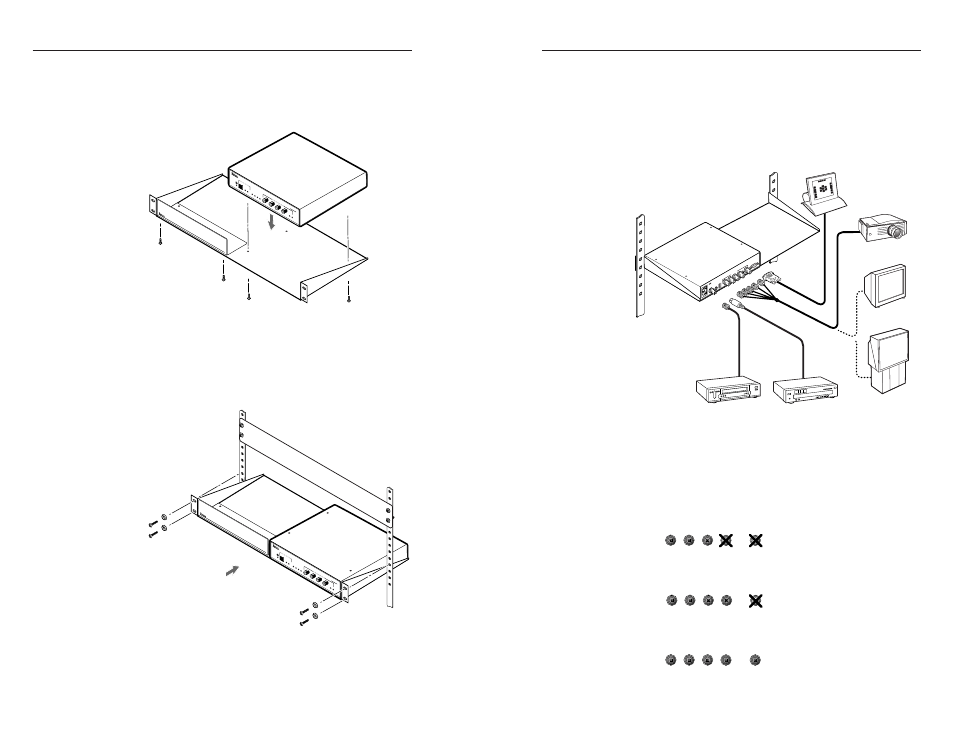

Attach the CD 800 to the rack shelf with two
4-40 x 1/8” screws. Insert the screws from the
underside of the shelf, and fasten them securely
through opposite corners as shown in the illustration
below.
4.
A false front panel or a second ½-rack-width device
can be attached to the other side of the shelf.
5.
Attach the rack shelf to the rack using four 10-32 x ¾”
bolts. Insert the bolts through #10 beveled (dress)
washers, then through the holes in the ears of the
rack, as shown in the illustration below.
CD 800
MIN
MA
X
CO
LO
R
TIN
T
CO
NTRA
ST
H S
HIF
T
1
2
PICTURE CONTROLS
INPUT SELECTION
NTSC
PAL
SECAM
NTSC 4.43
2-6
2-7
Cabling
The CD accepts S-video and composite video input. You
can connect one device of each type to the appropriate
input, and you can connect one RGB display device to the
output. You can also connect an RS-232 control device.
The illustration below shows how to connect the CD 800 to
various devices.
1.
Connect a composite video source to input connector
1 on the rear panel.
2.
Connect an S-video source to input connector 2 on the
rear panel.
3.
Use BNC connectors to attach the CD 800 to a
projector or other device.
RGsB
— If cables are connected to the red, green,
and blue channels only, the
format is sync on green.
RGBS
— If cables are connected to the R, G, B, and
H/HV (composite sync)
channels, the format is
composite sync.
RGBHV
— If cables are connected to the R, G, B,
H/HV, and V channels, the
format is separate horizontal
and vertical sync.
Laser Disk Player
Large Screen
Rear Projector
RS-232 Control
or Computer
LCD Projector
Video Monitor
VCR
OUTPUT
RS-232
or
or
CD 800
Hi C
arol
Hi C
arol
RGsB
R
H/HV
G
B
V
R
H/HV
G
B
V
RGBS
R
H/HV
G
B
V
RGBHV
False Front Panel
uses 2 Front Holes
4-40 x 1/8" Screws
Use 2 Mounting
Holes on Opposite
Corners
