CD 800 Remote Operation CD 800 Remote Operation
Remote Operation, cont’d
3-4 3-5
Error responses
If the CD 800 detects an error in a command, it returns one
of the following error responses to the host.
• E01 Invalid input channel number (out of range)
• E06 Auto-switch mode active (DIP switch #1 is enabled)
• E10 Invalid command (command received is invalid)
• E13 Invalid value (out of range)
CD 800-initiated messages
When a local event takes place, such as a front panel
operation or an error condition, the CD 800 responds by
sending a message to the host. The initiated messages are
listed below (underlined to identify the actual message).
The following message is initiated by the CD 800 when it is
first powered on:
(C) Copyright 1999, Extron Electronics CD 800, V x.xx
x.xx is the software version number
The following message is sent by the CD 800 when there is
a change in the selected input or a picture control setting:
Reconfig
The following CD 800-initiated messages indicate an RS-232
communication error. Possible causes are RS-232
connection problems or an incorrect baud rate.
Call Extron Technical Support if any of these errors persists.
RS-232 - Overrun
RS-232 - Noise
RS-232 - Framing
RS-232 - Overflow
RAM Test Failed
ROM Checksum Failed
Serial EEPROM Checksum Failed
6811 EEPROM Checksum Failed
New 6811 Installed
New Serial EEPROM Installed
Invalid Jumpers - Unknown - xxxx
Factory Defaults Reset on Channel #1
Factory Defaults Reset on Channel #2
Control Software for Windows
The Signal Enhancement Products Control Program, used
by the CD 800, is compatible with Windows 3.1, 3.11, 95/98,
and NT. It provides remote control of decoder settings.
Installing the software
The program is contained on a single 3.5” diskette; it can
run from the floppy drive. It is usually more convenient to
load and run the program from the hard drive.
To install the software onto the hard drive, run SETUP.EXE
from the floppy disk, and follow the instructions that
appear on the screen. The program occupies approximately
1 MB (megabyte) of hard-drive space.
By default, the installation creates a C:\S_ENHANC
directory, and it places two icons (Signal Enhancement
Products Control Pgm and Signal Enhancement Products
Help) in a group or folder named “Extron Electronics”.
Using the software
1. To run the Signal Enhancement Products Control
Program, double-click on the Signal
Enhancement Products Control Pgm icon
in the Extron Electronics group or folder.
The Comm menu appears on the screen.
2. Click on the comm port that is attached to the CD 800
RS-232 port.

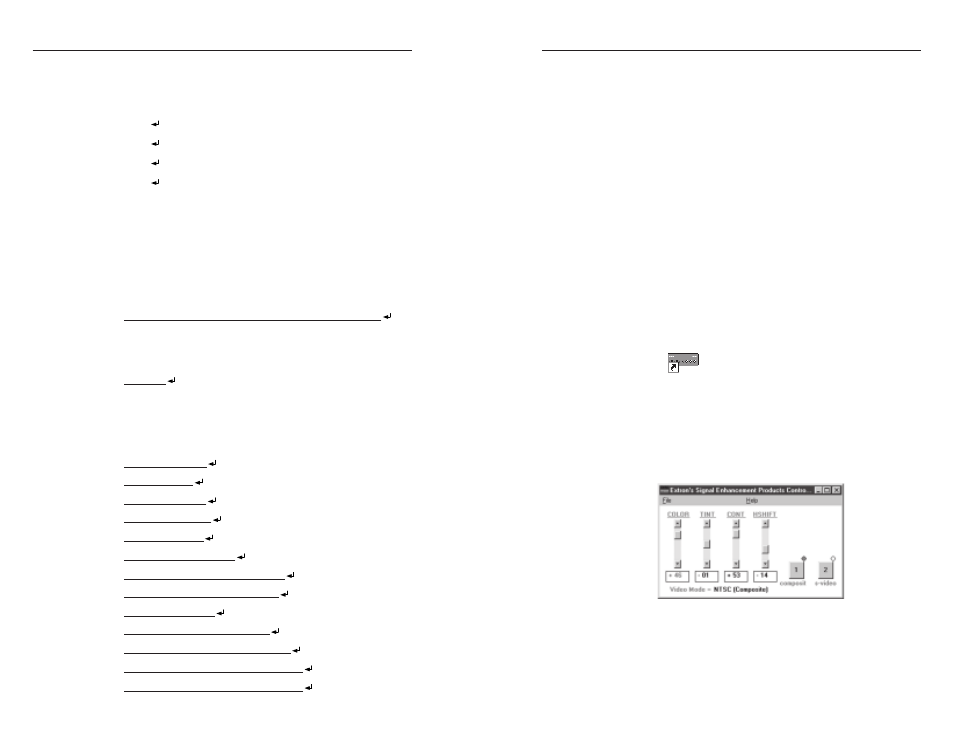

The Extron Signal Enhancement Products Control
Program window appears. It displays the current
settings (see the figure below).
3. Using normal Windows controls, you can perform the
same adjustments as from the front panel.
For information about program features, you can access the
Help program in any of the following ways:
• From within the Signal Enhancement Products Control
Program, click on the Help menu on the main screen.
Signal
Enhancement
Products
Control Pgm
