Page 10: Installation and operation, cont’d

3G HD-SDI 101 • Installation and Operation
Installation and Operation, cont’d
6

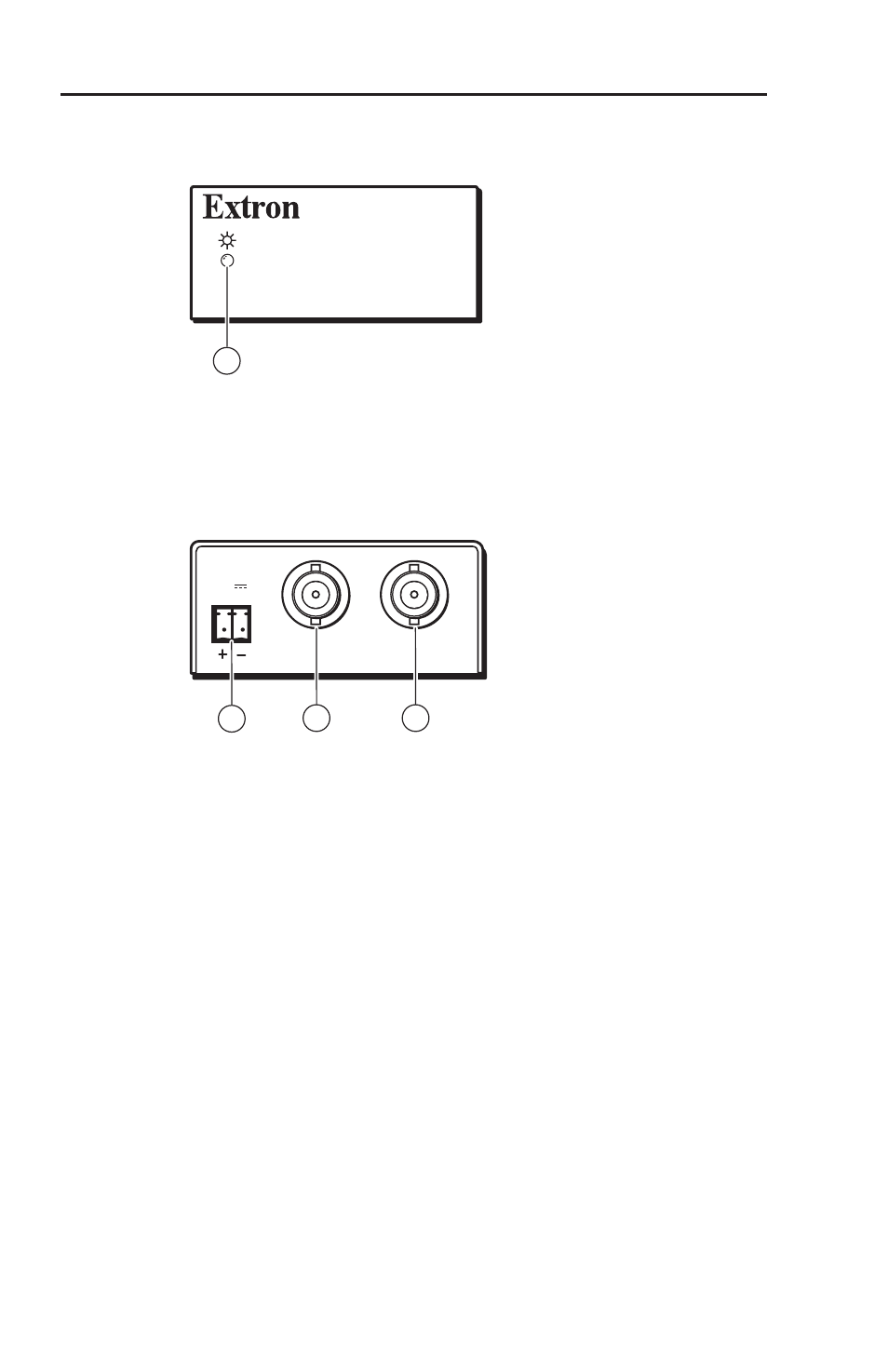

Front Panel Features
3G HD-SDI 101
1
a
Power LED — The LED illuminates green when the unit is
receiving power.
Rear Panel Features
INPUT
POWER
12V
0.2A MAX
OUTPUT
3
2
4
b
Power connector — The external 12 VDC, 2A power supply
(provided) is connected to this 2-pole, orange, 3.5 mm captive
screw connector.
c
HD-SDI input — One female BNC connector accepts HD-SDI
input.
d
HD-SDI output — One female BNC connector provides
HD-SDI output.
Input Cable Length
For SDI signals, the maximum length from the signal source to
the 3G HD-SDI 101 input is 500' (150 m).
For HD-SDI signals, the maximum length from the signal source
to the 3G HD-SDI 101 input is 400' (120 m).
N
The maximum signal transmission distance depends on
signal resolution, the source, the display, and the quality
of the cable. These maximum distances were measured
using Extron RG6 super high resolution cable.
