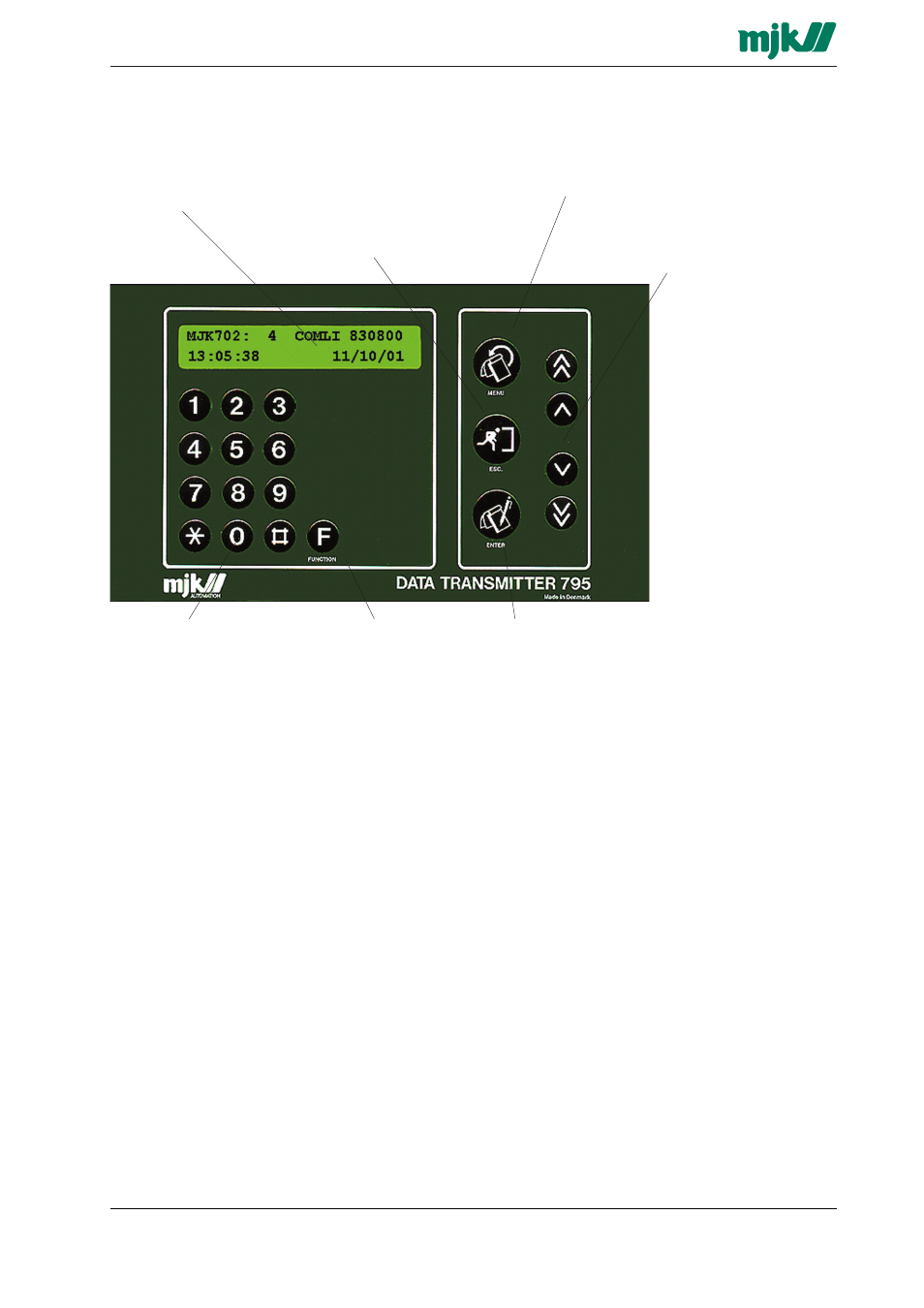

ComTroller 702
Display
2 x 24 character backlit
display for indication of
programming menus,
measuring values alarms
etc.
ESC.-key
This key changes back to
the previous menu or
cancels a selection. By
pressing the ESC.-key 2-3
times you will always
return to the functional
indication.
MENU
The MENU key are used to
switch between main
menus and submenus.
Arrow keys
The arrow keys are used
for altering the current
setting. In a submenu with
selections, the top line
shows the current setting
and the bottom line shows
the alternative setting (in
brackets). The arrow keys
are used to scroll between
the selections. The arrow
keys also alters the in-
and output no. By
activating the key, the
number in the display will
increase. By Activating the
key the number will
decrease.
Numerical keys
The keys 0-9,# and * are
used for configuring
telephone numbers,
delays, analog scaling etc.
Function key F
The function key is used
for selecting which
functional indication to
show on the display, e.g.
F0.
ENTER
Press ENTER to change
from a main menu to a sub
menu, as well as between
sub menus. Any choice
made in the sub menus
must be confirmed by
pressing ENTER.
