MIQ/CHV PLUS Settings
4 - 3 ba76036e01 01/2012
4.2 Linking the output with a sensor
The following steps describe operation with the 2020 XT system. With
the System 182 (XT), the valve output of the MIQ/CHV PLUS can be
found directly under the Settings menu (see system operating manual
of the DIQ/S 182).

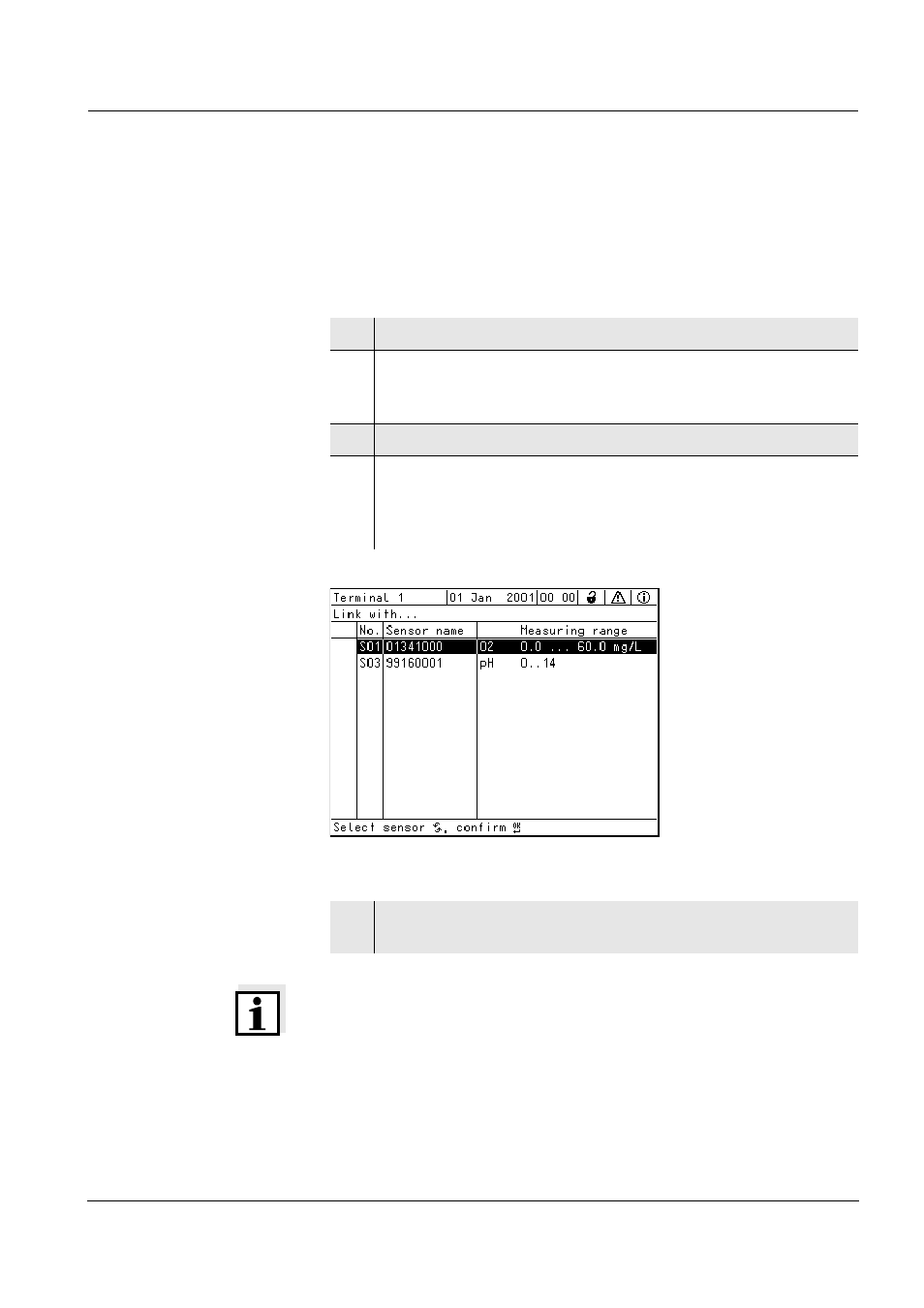

Fig. 4-2 150 - Settings of outputs and links: Link with...
Note
Outputs that are linked with sensors can be identified in the Ser. no.
field of the Settings of outputs and links overview by the specification of
the linked sensor.
1 Open the Settings menu with
s
.
2 Using
d
and
g
, select and confirm the menu item, System
settings -> Settings of outputs and links.
The Settings of outputs and links display opens.
3 Highlight the column with
d
and confirm with
g
.
4 Highlight an output with
d
and confirm with
g
. The Link
with... display opens.
The display shows a list of the sensors to which a link is
possible.
5 Select a sensor with
d
and confirm with
g
.
The output is linked with the selected sensor.
