Operation System 182 XT-4
4 - 2 ba76026e01 01/2012
4.2 Measured value and status display
The
m
key switches to the last selected measured value and status
display from any operating situation. Entries that are not completed are
ignored while doing so.
Pressing
m
once again cyclically switches between further display
options.
Example:
Display options
with four connected
sensors
Operating notes
 If more sensors are connected than can be shown in the respective
display option, the display changes its contents accordingly in
3-second intervals.
 Select a sensor in the double display with w
. The selected sensor
is displayed in reverse video. The number and name of the selected

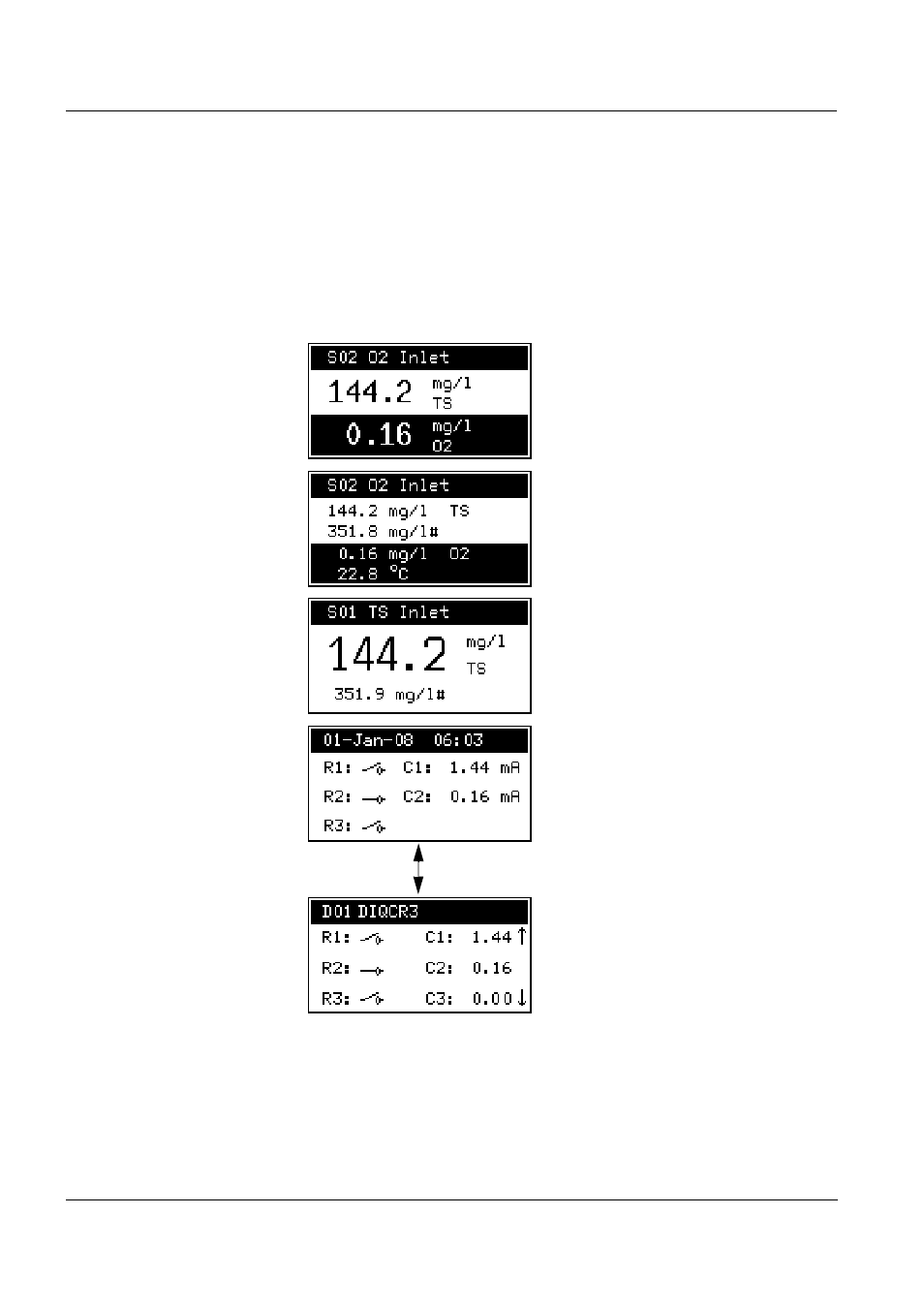

Double display of measured
values, large:
Main measured parameter only.
Double display of measured
values, detail:
Main and secondary measured
parameter.
Single display, measured value.
Display of the outputs.
The current states of the relays
and current outputs and the date
and time are displayed.
The information is spread over
two pages. Press
w
to swap
between the outputs of the front
and rear terminal strip (DIQ/CR3).
w
