TABLE A — WIRING CHART RECOMMENDED WIRE AND FUSE SIZES
3
TOOLS AND MATERIAL REQUIRED
1. Two adjustable pipe wrenches
2. Open end adjustable wrench
3. Screwdriver
4. Measuring tape
5. Pipe clamp(s) (to hold pipe during installation).
6. Drive point system only - a slip over drive weight pounder
(to pound in drive point).
7. Galvanized pipe - a non-toxic pipe sealing compound or
type to insure air-tight joints.
8. Plastic pipe - a non-toxic cement or tape to insure air-tight
joints

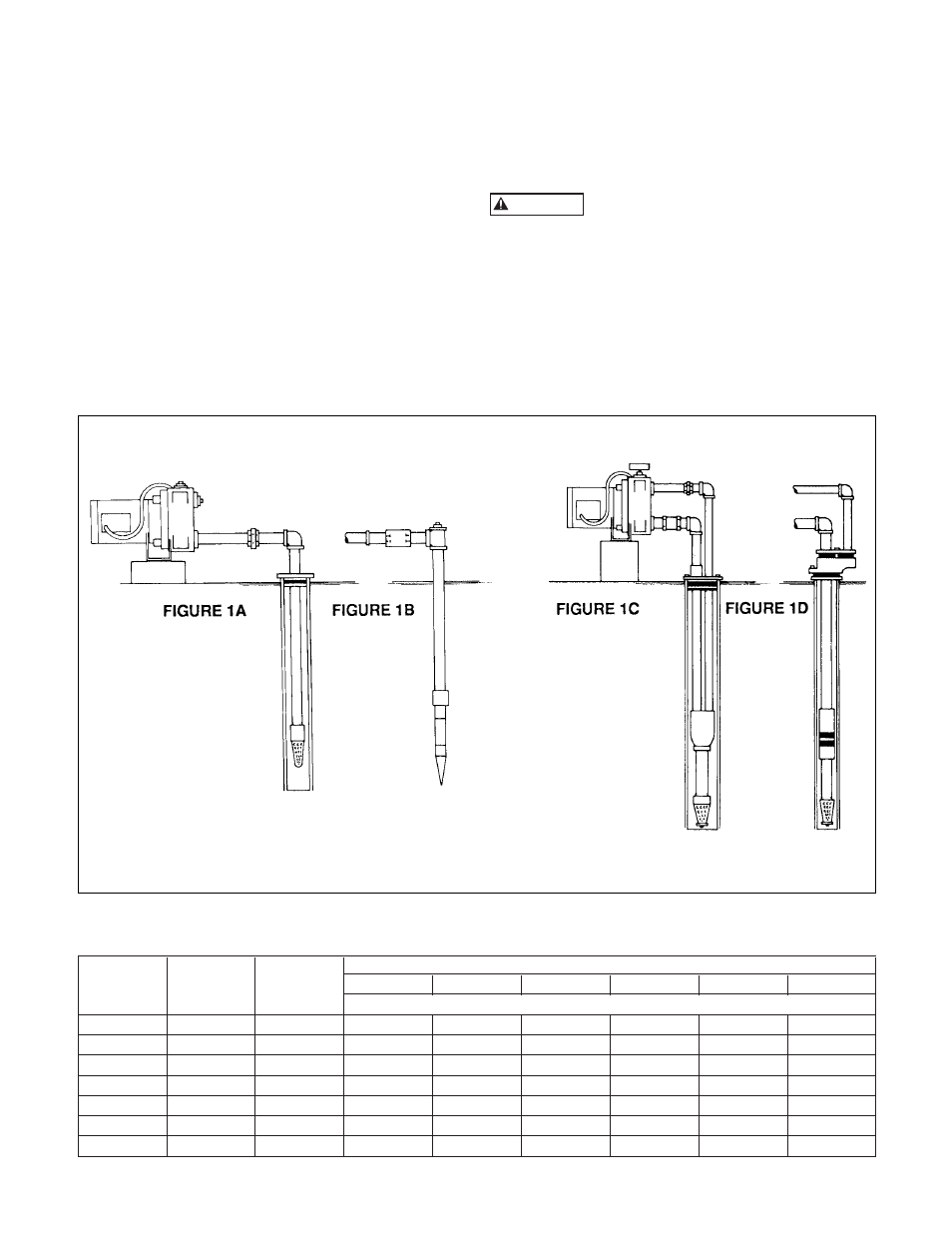

Red Jacket convertible jet
pumps can be adapted to
the following shallow well
systems:
Fig. 1A - horizontally to a
shallow well.
Fig. 1B - horizontally to
drive point.
DEEP WELL SYSTEMS SHALLOW WELL SYSTEMS
Red Jacket convertible jet
pumps can be adapted to the
following deep well systems:
Fig. 1C - horizontally to a 3"
or 4" double well seal.
Fig. 1D - horizontally to a
vertical 2" well adapter.
FIGURE 1
JET PUMP SYSTEMS
CAUTION
Distance in Ft. – Meter to Motor
Motor HP Voltage
Branch Fuse
0-50' 51'-100' 101'-200' 201'-300' 301'-400' 401'-500'
Rat. Amps
Wire Size
1 ⁄
3
115 15 14 14 12 10 8 8
½ 115 15 14 14 10 8 8 8
½ 230 15 14 14 14 14 14 12
¾ 115 20 12 12 10 8 6 4
¾ 230 15 14 14 14 14 12 10
1 115 20 12 12 8 6 6 4
1 230 15 14 14 14 12 12 10
Motor Voltage Change
The A.O. Smith and Emerson jet pump motors both have a
voltage change switch for ease of changing operating
voltage from low (115 volt) to high (230 volt) operation. The
A.O. Smith switch must be pulled out, moved and pushed in.
The Emerson switch is a toggle that can be changed using a
pen tip or a small screwdriver. The Emerson motor switch is
marked 115 and 230.
It is an industry standard procedure to ship
½ hp motors wired at 115 volts, connecting
them to a 230 volt power supply will damage the motor
windings, and/or the capacitor, and/or the overload protec-
tor. This damage is easily diagnosed and will not be covered
as a warranty failure.
Motors of ¾ hp and larger are factory wired for 230 volts.
Connecting them to a 115 volt power supply without chang-
ing the voltage switch will result in poor performance, noisy
operation and overload tripping due to high heat.
