15
Section 9

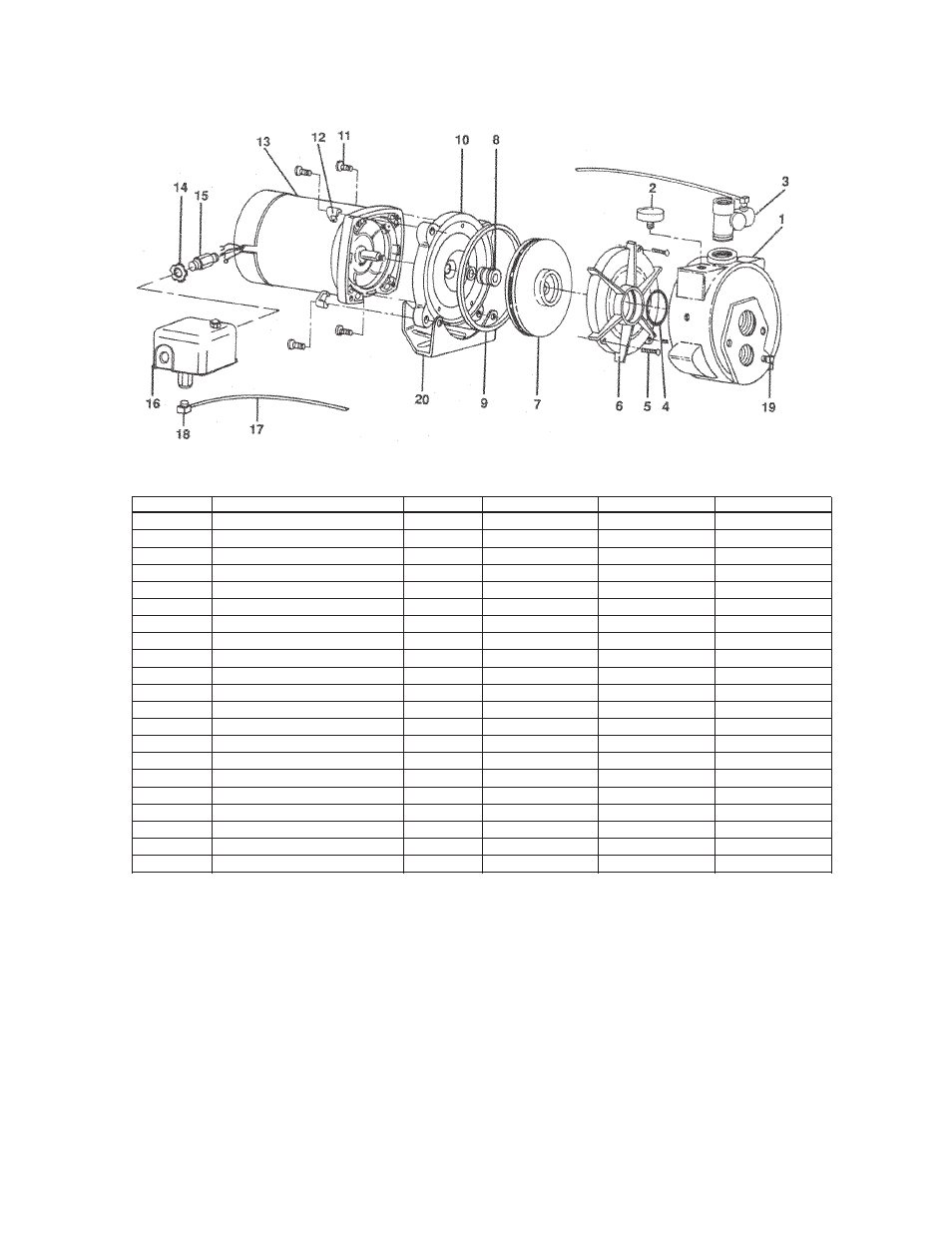

Model RJDS Repair Parts
Reference Part Quantity 50RJDS 75RJDS 100RJDS
1 Casing 1 123773 123773 123773
2 Pressure Gauge (0-100 PSI) 1 311541 311541 311541
3➀ Pressure Control Valve Assembly 1 RJAV22 RJAV22 RJAV22
4 Diffuser O-Ring 1 5K340 5K340 5K340
5 Diffuser Screws 3 13K312 13K312 13K312
6 Diffuser 1 174121 174131 174131
7 Impeller 1 1414284 1414294 1414304
8 Mechanical Seal 1 (2pc) 10K10 10K10 10K10
9 Casing Gasket 1 313121 313121 313121
10 Seal Plate 1 659113 659123 659123
11 Hex Head Screws 4 13L43 13L43 13L43
12 Clip – Motor Mount 4 92631 92631 92631
13 Motor 1 1531755 1531765 1531775
14, 15 Switch Connector with Locknut 1 6K24 6K24 6K24
16 Pressure Switch 1 1800951 1800961 1800961
17 Tubing 1 6K152 6K152 6K152
18 Tubing Elbow Connector 1 6K94 6K94 6K94
19 ¼" NPT Pipe Plug 3 6K2 6K2 6K2
20 Bracket – Motor Mount 1 92621 92621 92621
Not Shown Rubber Channel (used on #20) 1 9K188 9K188 9K188
Not Shown Spacer – Motor Mount 2 803501 803501 803501
➀ RJAV22 includes 6K105 elbow connector, 6K2 pipe plug and a 24" long tubing.
